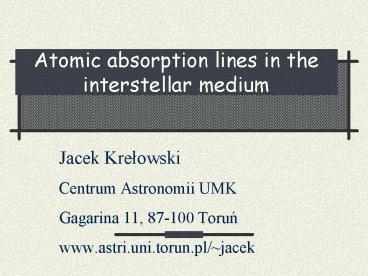

Atomic absorption lines in the interstellar medium

1
Atomic absorption lines in the interstellar medium

• Jacek Krelowski
• Centrum Astronomii UMK
• Gagarina 11, 87-100 Torun
• www.astri.uni.torun.pl/jacek

2
Stationary spectral line in the spectroscopic
binary oPer discovered by Hartmann in 1904
3
The second member of the same dublet
4
Sodium dublet D1 and D2 discovered by Heger in
1919
5
Two exposures of the HD 23180 star interstellar
lines are Doppler shifted in relation to telluric
features
6
Neutral kalium dublet the second member of the
dublet (the green one) is usually intertwinned
with a strong telluric feature
7
Neutral iron lines seen in ultraviolet
8
Weak line of neutral calcium
9
Very weak triplet of neutral lithium
10
The Universe contains a lot of hydrogen atoms,
but we observe...
11
A total lack of any sign of interstellar
absorption in HB
12
Far-UV interstellar lines originated in MgII,
observed towards Xper with the aid of GHRS
13
Oxygen, sulphur and phosphorus in HST spectra
taken with high resolution
14
Carbon lines of interstellar origin observed in
far-UV with the aid of GHRS fed with HST
15
Analysing interstellar atomic lines we arrive at
some conclusions...

• A vast majority of IS atomic lines (resonant
  ones) can be observed only if using space-born
  instruments this follows the extremely low
  density of ISM
• Many of the elements are heavily depleted only
  no more than 0.001 of their cosmic abundance is
  observed in interstellar gas (Fe, Ni, Mg etc.)
• Young stars do not show the above depletions the
  lost elements must be present in IS dust grains

16
Doppler splitting observed in interstellar kalium
line the medium is not homogeneous
17
Hole in the sky similar to that observed by
Herschel in XVIIIth century
18
Various Doppler splittings in different
absorption lines towards the same target
19
Various Doppler shifts of different interstellar
lines
20
What can we learn analyzing Doppler shifts?

• In most of cases sightlines towards reddened
  stars intersect several clouds
• Doppler components of different lines originating
  in the same clouds are not necessarily closely
  correlated
• Radial velocities derived from wavelengths of
  different lines may be different

21
Different profiles of interstellar lines seen
towards the same target
22
The above is true also in the lack of any Doppler
splitting...
23
Profiles of interstellar lines tell that...

• All interstellar lines, seen along one sightline
  may originate in different places
• Interstellar clouds may resemble large volumes
  filled with ionized gas with denser inclusions in
  which neutral elements are groupped

24
Varying ratio of the column density of neutral
and ionized calcium
25
Varying ratio of the kalium line intensity
relative to EB-V
26
What measures the amount of interstellar matter
along any sightline?

• EB-V?
• AV ?
• EWs of some spectral lines?
• Total amount of hydrogen?
• Something else?
