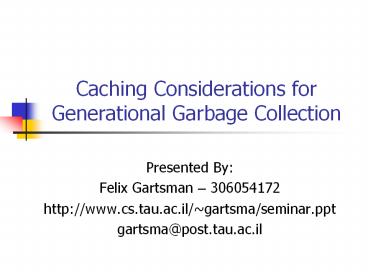

Caching Considerations for Generational Garbage
Collection

• Presented By
• Felix Gartsman 306054172
• http//www.cs.tau.ac.il/gartsma/seminar.ppt
• gartsma_at_post.tau.ac.il

2
Introduction

• Main theme Effect of memory caches on GC
  performance
• What is a memory cache?
• How caches work?
• How and why caches and GC interact?
• Can we boost GC performance by knowing more about
  caches?

3
Motivation

• CPU and memory performance dont advance with
  same speed
• When CPU waits for memory it is idle
• Solutions Pipeline, speculative execution and
  caches
• Caches provide fast access for commonly accessed
  memory

4
Caches and GC

• Two-way relationship
• Improving GC performance by cache awareness
  minimizing cache misses
• GC improving mutator memory access locality and
  minimizes cache misses by mutator (not dealt by
  the article)

5
Previous Work (Outdated!)

• Deal mainly with interaction with virtual memory
  systems
• No special attention to Generational GC
• Assumed best/worst cases, special hardware
• Investigated only direct-mapped caches

6
Article Contribution

• Survey GGC performance on various caches
• Check techniques for improving performance
• Main advice Try keeping the youngest generation
  fully in cache. If impossible prefer associative
  caches

7
Roadmap

• Cache in-depth
• GC memory reuse cycle
• GGC as better GC
• Comparing cache size requirements
• Comparing misses for different cache types
• Conclusions

8
Cache in-depth
Memory Hierarchy
Cache Hierarchy
L1
Registers
Cache
L2
Main Memory
L3???
Virtual Memory (Disk)

• Higher level means higher speed and smaller
  capacity
• Miss in one level relays the handling to a lower
  level

9
Motivation contd.

• When a memory word is not in cache, a cache
  miss occurs
• Cache miss stalls the CPU, and forces access to
  main memory
• Cache misses are expensive
• Cache misses become more expensive with each new
  generation of CPUs
• Penalty for memory access in P4 L1 2 cycles,
  L2 7, miss dozens depending on memory type

10
Cache properties

• Size (8-64KB in L1, 128KB-3MB in L2, 6-8MB in
  L3?)
• Layout (block size and sub-blocks)
• Placement (NM hash function)
• Associativity
• Write strategy
• Write-through or Write-back
• Fetch-on-write or write-around

11
Cache Size

• Size The bigger the better. Too small cache can
  render fast CPU to sluggish (Intel Celeron as
  example)
• Bigger cache reduces cache misses
• Constraints
• Physical feasibility (proximity, size, heat)
• Money (cost vs. performance ratio)

12
Cache Layout

• Cache memory is divided to blocks called cache
  lines
• Each line contains validity bit, dirty bit,
  replacement policy bits, address tag and of
  course the data
• Bigger block reduce misses for good spatial
  locality. Hurt performance if working on multiple
  memory regions. Also longer to fill lines

13
Cache Layout contd.

• Can be solved by dividing lines to sub-blocks and
  managing them separately

14
Cache Placement

• Map memory address to block number
• Examples
• Address modulo blocks
• Select middle bits of address
• Select a set of bits
• Must be fast and hardware friendly
• Should be uniform mapping

15
Cache Associativity

• Fully associative each address can be in any
  block. Need to check all tags slow or
  expensive. LRU replacement
• Direct mapped address can be only in one block.
  Fast lookup, but no usage history
• Set associative - each address can be in a set
  (2,4,8) of blocks. A compromise fast access and
  limited usage history

16
Cache Write Strategy

• Write-Through Write directly to memory and of
  course update the cache (slow, but can use write
  buffers)
• Write-Back Write to cache, and mark it dirty.
  Flush to memory later. Very useful for multiple
  writes to close addresses (object
  initialization). Can also enjoy write buffers
  (less useful)

17
Cache Write Strategy contd.

• What to do on write cache miss?
• Fetch-on-write/Write-allocate on miss fetch the
  corresponding cache line, and treat it as write
  hit
• Write-around/Write-no-allocate Write directly
  to memory
• Usually Write-back Write-allocate,
  Write-through Write-no-allocate

18
Modern memory usage

• Object-Oriented languages tend to create many
  small objects for short periods. For example, STL
  uses value semantics which copies objects for
  every operation!
• Functional languages (Lisp, Scheme) constantly
  create new objects which replace old ones (cons
  and friends)

19
Modern memory usage contd.

• Creation is expensive allocation with probable
  write miss (new address used). Article cites
  sources claiming functional languages writing in
  up to 25 of their instructions (others 10)

20
Memory Recycling Pattern

• GC systems tend to violate locality assumptions
• Cyclic reuse of memory beats any caching policy.
  The reuse cycle is too long to be captured
• GC systems become bandwidth limited

21
Allocation is to blame, not GC

• Locality of the GC process itself is not the
  weakest link
• The problem is fast allocation of memory, which
  will be reclaimed much later
• Main memory filled very fast. What to do?
• GC Too frequent, but avoids page
• Use VM Touches many pages and causes paging

22
Pattern Results

• Allocation touches new memory, and force a
  page-in/page fetch (slow)
• Why fetch? The memory allocated was used
  previously. OS doesnt know its garbage, and
  allocation will overwrite it anyway
• Informing OS no fetch required speeds execution

23
Pattern Results contd.

• When main exhausted (or the process isnt allowed
  more pages), old pages must be evicted
• Those pages are probably dirty must be written
  to disk
• Even worse the evicted page is LRU probably
  garbage!
• Worst case Disk B/W 2Allocation Rate

24
Another view

• View GC allocator as a co-process to the mutator
• Each one has it own locality reference
• The mutator probably with good spatial locality
• The allocator linearly marches through memory
• Allocation is cyclic (remember LRU)

25
Compaction and Semi-Spaces

• Compaction helps the mutator, little difference
  to allocator
• Still marches through large memory areas
• Trouble with semi-spaces the tospace was
  probably evicted. All addresses are replaced
  cache flush. Marching through entire heap every
  second cycle

26
Solution?

• So LRU is bad, can we replace it?
• We can, but it wont help much
• Too much memory touched too frequently
• Allocator page faults dominate program execution!
• Only holding entire reuse cycle in memory will
  stop paging

27
Generational GC

• Solution Touch less memory, less frequently
• Divide heap to generations
• GC the young generation(s) touching less memory
• This eliminates vast memory marching memory
  reuse cycle minimized
• Eliminates paging, what about cache?

28
Generational GC variations

• Can use single space immediate promotion
• Can use semi-spaces promote at will, at the
  expense of more memory

29
Better Generational GC

• Ungar Use a pair of semi-spaces and a separate
  dedicated creation space
• This space is emptied and reused every cycle, but
  the semi-spaces alternate roles as destination
• The result Only little part of semi-spaces are
  touched, and new objects are created in hot
  space in main memory (and maybe in cache)

30
Cache Revised

• Cache misses can be categorized to
• Capacity misses No matter what cache is used,
  the miss will occur
• Conflict misses A miss occurs because two (or
  more) addresses mapped to same cache line (set)
• Direct mapped suffer from conflict misses the
  most every miss evicts blocked with same mapping

31
Conflict Misses in-depth

• Miss rate function is roughly a minimization one
• Example Both addresses map to same line. The
  first accessed every ms, the second every µs. The
  (double) miss is every ms.
• The rate depends on the usage frequency of
  addresses not in cache

32
Minimizing Conflict Misses Rate

• Most non-GC systems are skewed many frequent
  objects, little others. If placed well, cache is
  efficient
• If many block accessed in intermediate time scale
  more misses, and more chances they will
  interfere each other
• Over-simplified to help understanding

33
Example

• Program marches memory, while doing normal
  activity. We use 16KB cache
• 2-way associative the most frequent block are
  not touched
• Direct Mapped Total flush every cycle
• Conclusion It takes twice time to be remapped in
  DM, but the result is painful (flush)
• DM cant handle multiple access pattern

34
Experiments

• Instrumented Scheme compiler with integrated
  cache simulator
• Executes millions of instructions, allocates MBs
• Well present 2 programs
• Scheme compiler
• Boyer benchmark objects live long, and tend to
  be promoted

35
Experiments contd.

• Cache lines are 16 bytes width
• 3 collectors
• GGC with 2 MB spaces for generation no
  promotion ever done
• GGC with 141 KB spaces for generation
• 2 141 KB creation space (Ungar)

36
Results (Capacity)
37
Interpretation

• LRU queue distance distribution
• What it means?
• The probability of a block to be touched at
  different point in LRU queue
• The probability of a block to be touched given
  how long since it was last touched
• The probability of a block to be touched given
  how many other blocks have been more recently

38
Interpretation contd.

• Fourth queue position 128 KB
• Eight queue position 256 KB
• For any given position The area under the curve
  to the left cache hits, to the right misses
• Curves height at point the marginal increase
  in hits due cache enlargement at that point

39
Experiment Meaning

• First entries absorb most hits
• Collector 1
• Dramatic drop
• About tenth position (320 KB) no need
• Collector 23
• Hump peaking when memory starts recycling

40
Experiment Meaning contd.

• 2 Recycling after 1412 KB, cache of 300-400 KB
  should suffice
• 3 Creation space is constantly recycled, and a
  small part of other spaces is touched, cache of
  200-300 KB should suffice

41
Experiment Meaning contd. 2

• Boyer behaves differently
• 3 better than 2 by 30
• Capacity misses disappear if cache larger than
  youngest generation size

42
Results (Collision)
43
Interpretation

• The graph plots cache size vs. miss rate
• Shows results only for collector 3

44
Experiment Meaning

• Associative shows dramatic and almost linear
  dropdown to 256 KB (contains youngest
  generation). From then nothing interesting
• Direct mapped same on 16-90 KB interval, better
  on 90-135 KB, much worse latter on

45
Experiment Meaning contd.

• Why DM better at that period?
• Cache big enough to hold creation area, and
  suffers interference for other blocks
• Associative evicts before used due collision
• Later associative suffers only re-fill misses,
  DM also suffers collisions

46
More Performance Notes

• When cache is too small, most evicted blocks are
  dirty and require expensive writebacks
• Interference may also cause writebacks

47
Conclusions

• Caches are important part of modern computer
• Garbage collectors reuse memory in cycles, often
  march memory
• LRU evicts dirty pages/cache lines, needless
  fetches are costly
• GGC reuses smaller area, reduces paging

48
Conclusions contd.

• Similar idea for caches hold youngest generation
  entirely
• Ungar 3-space proposition reduces required
  footprint by 30
• Excluding small interval, associative caches
  perform better than direct mapped which suffer
  collision misses

49
Questions?
50
The End
