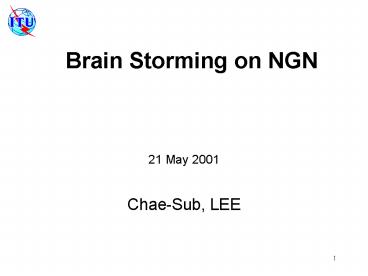

Title: Brain Storming on NGN


1
Brain Storming on NGN
  • 21 May 2001
  • Chae-Sub, LEE

2
Contents
  1. Scope and ToR
  2. Service requirements
  3. Environments analysis
  4. Continuation of GII
  5. Implementation issues
  6. Role of ITU-T and SG 13

3
1. Scope and ToR
  • Make common understanding of what is next step
  • Beyond IP
  • Continue with IP

Target Time
  • Try to sketch it brief as requirements
  • Services and Environments
  • Horizontal and Vertical views
  • Find contribution area and work items
  • Standard areas
  • Other SDOs
  • Role of ITU-T and SG 13

4
2. Service requirements
Moving Trend of Service Requirements
FAX
Image/Video
WEB
Vo IP Vo ATM Vo MPLS Vo DSL Vo Ethernet
Telex
Data
FAX
Voice
FAX
Voice
Voice
mid 1970 1980
mid 1980 1990
mid 1990 today
5
Service Requirements in Near Future
?
Tele-gaming
VHE (Ethernet) or (others)
Impact
Multimedia Chatting
Packet Voice
Others (?) CAMCORDER with Ethernet
6
Requested Target Services for Next
Until 2004
after 2004 2008
7
3. Environments Analysis
Change of Environment
8
Network Evolution Trends
  • Optical Infrastructure
  • Capacity imperative
  • Packet Based Transport Switching
  • Multi-service flexibility
  • Location of Intelligence (Core vs Edge)
  • QoS and Bandwidth Granularity/Control
  • Convergence of Control Management Aspects
  • E.g., Dynamic routing vs protection switching
  • Interworking with Legacy Systems

9
Towards Tele-Broadcasting
Impacting Areas
Service/Business Integrated Multimedia
Media Integrated Multimedia
Business Model
Internet-based Multimedia
Voice
Refer. Point of Interc.
Data
Service Requirements
Telecom-based Multimedia
Broadcas.-based Multimedia
Video
Opera. Provis. Guide
Simplified Features of Wireless World
Regulation
Regulation
Tele-Broadcasting World
Standard
Standard
Simplified Features of Wire World
10
Market Changes and its Push
11
  • User Terminal Environments of Today

Data inc. Everything
Phone
FAX
PC FAX
  • Real Time DATA
  • Non-Real Time DATA

PC
TV
PC TV
12
Expected Future Transition Trend
13
  • Changing Role of IP

IP based Control (IP Dial-tone)
IP based Multimedia (?)
IP based Management
Future Role of IP
14
4. Continuation of GII
Recognized unique name for Information
Society without implementation of Technologies
GII
15
  • Expected Evolution Trend toward GII

Past
Present
App.a
App.b
App.c
App.a
App.B
App.b
App.c
Net.1
Net.2
Net.3
Net.1
Net.4
Net.2
Net.3
Narrowband
Broadband
App.a, b, c, B
App.a, b, c
App.B
NGN Platform
IP Platform
IP Platform
Net.1
Net.1
Net.4
Net.2
Net.3
Net.4
Net.2
Net.3
Future
Near future
16
5. Implementation Issues
Server based Configuration
17
Diversity of Access Technologies
Network Management
Management Platform - CMIP - SNMP - JAVA -
CORBA - DCOM
Switching Routing - IP - MPLS - ATM
Accessing - ISDN - ADSL - Cable Modem - FLC - FTTH
Multiplexing - IP - ATM - F/R - SDH/PDH - WDM
Backbone Switching Network
Transmission - ATM - SDH - WDM
Access Switching Network
Access Network
Backbone Transmission Network
18
C.S. LEEs stupid idea No. 1 to be implemented in
NGN
New Standards on Access
ADSL Voice DATA Full DATA
Data inc. Voice
19
Points of Intelligence
3.1 kHz Audio Bearer Network
Application Server
A.N
A.N
Core Network
64 kbps CM/PM Bearer Network
A.N
QoS 3
2 Mbps FM Bearer Network
Access Net. Part
QoS 2
Policing Server
QoS 1
ATM Bearer Network
QoS 1
A.N
IP Bearer Network
  • Same service but different path
  • Use current bearer networks in
  • Multimedia era with integrated
  • Access Network

20
C.S. LEEs stupid idea No. 2 to be implemented in
NGN
New Signaling Mechanism or Protocol
Core Net (Various Bearer)
Integrated Access Unit (e.g. NGN Set Top Box)
Intelligent Access Server
21
Complication of Networking (1)
ISP X
(Network Operator B)
PoP
Service Selection Gateway
Radius Server
ISP X
DSLAM

Radius Server
ADSL NT
( L2TP)
PoP
Network Operator B
ISP X, X
Network Operator A
PPP enc. in L2TP ISP X
PPP enc. in PPPoE

termination PPPoE
termination PPP ISP X
termination PPP ISP X
22
Complication of Networking (2)
DSLAM

ADSL NT
BB-PoP
IP
IP
IP
PPP
PPP
IP
Ethernet
Ethernet
IP
AAL
AAL
PPP
ATM
ATM
Ethernet
PPP
Ethernet-physics
ADSL-physics
STM-1physics
physics
23
C.S. LEEs stupid idea No. 3 to be implemented in
NGN
IP
IP
IP
IP
IP
IP
PPP
PPP
PPP
PPP
PPP
Ethernet
Ethernet
Ethernet
Ethernet
AAL
AAL
AAL
ATM
ATM
physics
Need to make simple structure And think about
others (beyond IP)
24
Possible Convergence Model of Tele-Broadcasting
RelationsEnterprise Model ? Regulation
Interac. TV
TV Mail
Tele-gaming
IP Platform or Others
Telec. Infra.
Broad- casting Infra.
TV Internet
E- Comm.
New Applications and their Service Interworking
Web TV/FM
Networking Technologies and their Adaptations
Computer/Consumer Technologies
Interworking between two Infrastructures
and their convergence
New Technologies and their Products
Structural Model of Convergence
25
C.S. LEEs stupid idea No. 4 to be implemented in
NGN
Continue IP Platform or New Platform
Broad- casting Infra.
Tele- com. Infra.
Convergence / Integration
Optic
DBS
Analysis of mutual impacts
26
6. Role of ITU-T and SG 13
Packet based infrastructure
IP Issues
  • Application of IP technology into Telecom infra
    and
  • specify Interworking between IP and Telecom
  • service/network
  • New architecture for full Packet based
    infrastructure (inc.Voice)
  • Migration path from Circuit based to Packet
    based infra (inc. Interworking)
  • Service and network capabilities for providing
    Packet based services
  • New access technology, OAM and Performance study
    based on full Packet infra

27
  • Network Evolution and its required Functional
    Study Areas

Service classification and definition
P R M
UNI NNI Archi. Spec.
I Series Rec.
Multi-protocol Networks
Y Series Recommendation
NGN
Accounting, Charging Billing
28
C.S. LEEs stupid idea No. 5 to be implemented in
NGN
SDO1
SDOn
ITU
ITU
SDO1
SDOn
SDO1
SDOn
NGN Project
Which type ?
29
Thank you for your attention
Standard Bodies (ITU, IETF, ATM-F)
MPLS
MPOA
IPOA
