Electrical Power Generation, Storage

1
Electrical Power Generation, Storage Usage

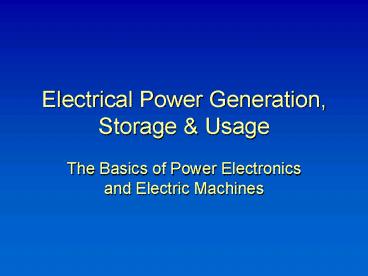

• The Basics of Power Electronics and Electric
  Machines

2
Electrical Power Generation, Storage Usage

• Year B.Sc. 3 period 4/0/0/0
• Method Lecture Excercises
• ECTS 3
• Lecturer Tim de Lange Msc. Bsc.
• E-mail t.delange_at_lr.tudelft.nl
• Examination Written
• Books Handout T. Wildi
  ISBN0130986372

3
Electrical Power Generation, Storage Usage

• Course About Principles of Power Electronics
• Power Electronics Are Not a Black Box!
• Fun Applications
• Necessity in Future
• Everyone Can Play with Power Electronics
• Way Past the Wheelchair Effect!
• Learn to Discuss About Component Choice

4
Applications

• Power plants
• Home
• Car
• Plane
• Ship
• Tools
• Windgenerator

5
WIND TURBINE
6
HYDRO POWER PLANT
7
POWER PLANT
8
TURBO FAN
9
INNOVATIVE AUTOMOTIVE
10
INNOVATIVE AUTOMOTIVE
11
CORDLESS DRILL
12
SHIP POWER PLANT
13
METER CUPBOARD
14
INNOVATIVE WIND POWER PLANT
15
100 ELECTRIC 200HP SPORTS CAR
16
100 ELECTRIC PASSENGER CAR
17
Components

• Motors
• Generators
• Inverters
• Converters
• Controllers
• Semiconductors
• Passives
• Batteries

18
ASYNCHRONOUS MOTOR
19
GENERATOR
20
DC-gtAC INVERTER
21
DC-gtDC CONVERTER
22
AC-gtAC_adj FREQUENCY CONTROLLER
23
BATTERY TYPES
Li-Ion 140Wh/kg _at_ C1
Li-Polymer 190Wh/kg _at_ C1
Lead/Acid 33Wh/kg _at_ C20
NiCd 50Wh/kg _at_ C1
Lead/AGM 33Wh/kg _at_ C20
Lead/Gel 25Wh/kg _at_ C10
24
SEMICONDUCTORS
Diode 50A
Mosfet 30A 100V
IGBT 50A 1200V
Thyristor 100A
LED 15mA
Transistor 15A
25
PASSIVES
Resistor (R)
Inductor (L)
Capacitor (C)
26
HO1 Definitions

• Definitions Symbols

27
HO1 Definitions Symbols

• Voltage UAB

Voltage UAB Potential energy between points A
and B per unity charge as a consequence of the
electric field. 0
28
HO1 Definitions Symbols

• Current I

Current I The amount of charge that passes a
cross section every second.
29
HO1 Definitions Symbols

• Real Power

Active power P The active power is with direct
current/voltage the product of voltage and
current, so PU.I
30
HO1 Definitions Symbols

• Energie Sources

U The ideal voltage source supplies a constant
voltage at variable current.
I The ideal current source supplies a constant
current at variable voltage.
P Both voltage and current sources are energy
sources.
31
HO1 Definitions Symbols

• Impedances

R The relation between voltage and current with
resistors and other none-reversible energy
converters.
L the relation between resulting magnetic flux
and the current that causes this flux in an
inductor.
C The relation between charge and voltage with
a capacitor.
32
HO1 Ohms Law
33
HO1 Kirchhoffss Law
34
HO2 Definitions Time Functions

• Voltage and current responses
• Average value
• Effective value
• Form factor
• Summary periodic signals
• Electrical energy and power

35
HO2 Voltage/Current Relationships
36
HO2 Periodic Signals
37
HO2.1 R-L-C Circuit Response
38
HO2.1 R-L-C Circuit Response
U-step response
39
HO2.1 R-L-C Circuit Response
40
HO2.1 R-L-C Circuit Response
I-step response
41
HO2.3 Average Value
42
HO2.3 Average Value
43
HO2.4 Root Mean Square
44
HO2.4 Root Mean Square
45
HO2.5/2.6 Form Factor
46
HO2.7 Electric Energy Power
47
HO2.8 Ohms Law Inductor
48
HO2.8 Power Inductor
49
HO2.8 Ohms Law Capacitor
50
HO2.8 Power Capacitor
51
HO2 Excercises

• Exc 2.1
• Exc 2.2
• Exc 2.3
• Exc 2.4
• Exc 2.5
• Exc 2.6
• Exc 2.7
