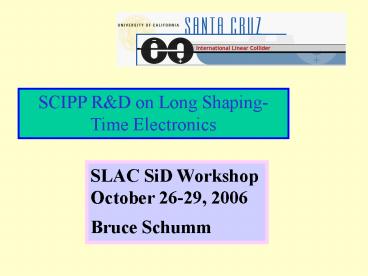

SCIPP RD on Long Shaping-Time Electronics
SLAC SiD Workshop October 26-29, 2006 Bruce
Schumm
2
The SCIPP/UCSC ILC HARDWARE GROUP
Faculty/Senior Vitaliy Fadeyev Alex Grillo Bruce
Schumm Abe Seiden
Post-Docs Jurgen Kroseberg
Students Greg Horn Gabriel Saffier-Ewing
Lead Engineer Ned Spencer Technical Staff Max
Wilder, Forest Martinez-McKinney
(Students are undergraduates from physics)
3
Alternative shorter ladders, but better point
resolution
  • The LSTFE approach would be well suited to use in
    short-strip applications, and would offer several
    potential advantages relative to other approaches
  • Optimized for LC tracking (less complex)
  • More efficient data flow
  • No need for buffering

Would require development of 2000 channel chip w/
bump bonding (should be solved by KPiX
development)
4
The LSTFE ASIC
Process TSMC 0.25 ?m CMOS
1 ?s shaping time analog readout is
Time-Over-Thresh
5

128 mip
1 mip
Operating point threshold
Readout threshold
1/4 mip
6
Electronics Simulation
Detector 167 cm ladder, 50 ?m pitch, 50 ?m
readout
Analog Measurement Employs
time-over-threshold with 400 ns clock period
lookup table provides conversions back into
analog pulse height (as for actual data)
RMS
Gaussian Fit
Essential tool for design of front-end ASIC
Detector Resolution (units of 10?m)
7
Proposed LSTFE Back-End Architecture
Low Comparator Leading-Edge-Enable Domain
81 Multi-plexing (?clock 50 ns)
FIFO (Leading and trailing transitions)
Event Time
Clock Period ? 400 nsec
8
DIGITAL ARCHITECTURE FPGA DEVELOPMENT
Design permits real-time accumulation and readout
of hit information, with dead time limited only
by amplifier shaping time
9
INITIAL RESULTS
LSTFE-2 chip mounted on readout board
FPGA-based control and data-acquisition system
10
Qin 1.0 fC
Qin 0.5 fC
Comparator S Curves Vary threshold for given
input charge Read out system with FPG-based
DAQ Get 1-erf(threshold) with 50 point
giving response, and width giving noise
Qin 1.5 fC
Qin 2.0 fC
Stable behavior to Vthresh lt 10 of min-i
Qin 2.5 fC
Qin 3.0 fC
11
Noise vs. Capacitance (at ?shape 1.2
?s) Loaded with Capacitor Measured dependence
is (noise in equivalent electrons) ?noise 375
8.9C with C in pF. Connected to
Ladder Noise is approximately 30 worse are
currently exploring long shaping-time shielding
requirements
Expected
Observed
1 meter
12
  • Power Cycling
  • As designed Achieve 40 msec turn-on due to
    protection diode leakage
  • Injecting small (lt 1nA) current Achieve 0.9 msec

Power Control
LSTFE2 will incorporate active feedback to
maintain bias levels of isolated circuitry when
chip is off.
Preamp Response
Shaper Response
13
LSTFE2
  • The LSTFE2 is currently under development
    submission expected by end of year
  • Retain 1.0-1.5 ?s shaping time
  • Further S/N optimization (still geared towards
    long ladders
  • Off state feedback to achieve power cycling
  • 16-32 channels, with multiplexing of compar-ator
    outputs (pad geometry)
