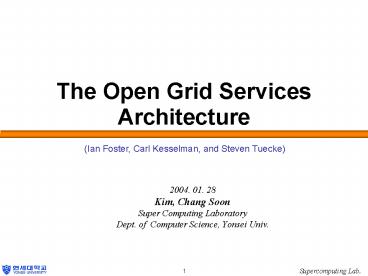

The Open Grid Services Architecture
(Ian Foster, Carl Kesselman, and Steven Tuecke)

• 2004. 01. 28
• Kim, Chang Soon
• Super Computing Laboratory
• Dept. of Computer Science, Yonsei Univ.

2
CONTENTS

• Service-Oriented Architecture
• Service-Oriented GRID Architecture
• An Example
• Web Services
• Open Grid Services Infrastructure
• OGSA Services and Schema
• Case Study Revisited
• Other Issues
• OGSA Implementations
• Future Directions

3
Service-Oriented Arch.

• What is Service?
• An entity that provides some capability by
  exchanging messages
• Some features
• This defining achieve great flexibility
• In how services are implemented
• Where they may be located
• All entities are services
• Goal of OGSA design
• Reuse of behaviors
• Ease of composition of simpler behaviors

4
Service-Oriented Arch.

• Examples
• Storage service
• Data transfer service
• Troubleshooting service
• IDL (interface definition language)
• WSDL (Web Services Description Language)
• Provide well-known names
• Well-defined IDL Simplify the manipulation and
  management of services
• Service discovery
• Service composition
• Specialization
• Interface extension

5
Service-Oriented Grid Arch.

• OGSI
• Describing and discovering service attributes
• Creating service instances
• Managing service lifetime
• Managing groups of services
• Subscribing and delivering notifications
• OGSA services
• Web service that adheres to OGSI standard
• OGSA schemas
• Needs a common vocabularyfor describing objects

Current Web Service do not support these
6
An Example
Storage monitor service
Implemented in a different way QoS
File Transferservice
client
Same interface
Storage Broker service
Compelete example
7
Web Services

• Perspective of OGSA
• Web services standard of most interest is WSDL
• Advantages of Web Service Framework
• Registering and discovering interface definition
• For dynamic discovery and composition of services
  in heterogeneous env.
• Widespread adoption
• Is defining concerned with
• Service registry
• Security
• Policy
• Service orchestration

8
WSDL

• WSDL definition comprises
• Service interface
• Implementation details

OO terms
ltwsdldefinitions xmlnstns
targetNamespacegt ltmessage
namegetFileRequestgt ltpart nameterm
typexsstring/gt lt/messagegt ltmessage
namegetFileResponsegt ltpart namevalue
typexsstring/gt lt/messagegt ltportType
nameStorateServicechangegt ltoperation
namegetFilegt ltinput messagegetFileReque
st/gt ltoutput messagegetFileResponse/gt
lt/operationgt lt/portTypegtlt/wsdldefinitionsgt
Define a message
Methodargument
interface
class
operation
method
9
Additional Element

• ltservicegt
• Defines endpoint address
• ltbindinggt
• Specify the messaging protocol, data-encoding
  model, transport protocol
• Separation of interface from binding
• Multiple bindings for a single interface

10
OGSI

• Provision of standard interfaces semantics for
  common service interactions
• Interoperable, reusable components
• Mechanisms
• Grid service descriptions and instances
• Service data
• Naming and name resolution
• Service life cycle
• Fault groups
• Service groups

11
Grid service descriptions and Instances

• Grid service descriptions
• Consists of the WSDL that defines the Grid
  services interfaces and semantics
• Grid service instance
• Addressable, stateful, transient instantiation of
  descripton

12
Service Data

• Definition
• For representing metadata and state data related
  to a service
• WSDL has no concept of service state
• So OGSI has defined WSDL extensions
• Declaration of visible state
• Standard operations for accessing that state
• SDEs (Service data elements)
• Each interface can specify 0 or more SDEs
• Combination of All SDEs ? logical XML document
• OGSI defines
• Standard operation for accessing an document
• Standard attributes
• Capacity, location, speed, free-space, and so on
• Utilization
• Introspection, discovery, and monitoring

13
Accessing Service Data Elements

• Pull-mode
• Query a Grid service instances service data
• Query expression
• Require Simple by name
• Optional multiple condition (e.g. XPath or
  Xquery)
• Push-mode
• Delivery of service data elements
• Notification

Notification- Source
Notification- Subscription
Notification-Sink
keepalive
Lifetime management
14
Service Data Element Schema

• Being defined within OGSA
• E.g.) Common management models

Logical resources
Physical resouces
disk
map
file system
IP
Abstract representation of phy. rsc.
15
Naming

• Requirements
• Require not a fixed mapping
• Two-level naming scheme
• GSH (Grid service handle)
• Globally unique name for all time
• No-protocol specific, no instance-specific
• Encapsulated into a single abstraction(GSR)
• GSR (Grid service reference)
• Dependent of the underlying protocol binding
• Expiration time
• Handle resolution services (HandleResolver)

16
Naming (cont)

• Migration based on
• Resource availability
• Locality of a client
• Client privilieges

Resolver(GSH)
Client
Handle resolver
timegt T
timelt T
GSR1
GSR2
Migrate at time T
Serviceinstance
Service instance
17
Service Life Cycle

• Grid services distinction from web service
• Grid service is transient, created as part of
  operation of the infrastructure
• ? need the mechanisms about lifetime of a service

18
Creating Transient Services Factories

• OGSI defines
• Extensible Factory interface
• Have common and simple cases
• Factory interface is responsible
• Creating the new service instance
• Handle resolution service
• Virtualization method of Factory interface
• Implemented directly by a hosting environment
• Delegating the request to other factory services
• Composing behaviors of multiple lower-level
  services? higher-level service instance

19
Service Lifetime Management

• Problem in distributed system
• Components fail and messages may be lost
• A Service never see an expected explicit
  termination request
• Consume resources indefinitely
• Soft-state approach
• Instances are created with a specified lifetime
• When Lifetime expired
• Terminate instances and release resources
• Mechanism
• Negotiating an initial lifetime
• Factory selects an initial time
• Explicit termination
• Requesting a lifetime modification

? Robust termination and failure detection !!
20
Fault model

• OGSI fault model
• Required elements
• Originating service and a time-stamp
• ogsiFaultType element

21
Service Groups

• Definition
• Collection of service instances
• OGSI interfaces
• ServiceGroup
• ServiceGroupRegistration
• ServiceGroupEntry

22
CONTENTS

• Service-Oriented Architecture
• Service-Oriented GRID Architecture
• An Example
• Web Services
• Open Grid Services Infrastructure
• OGSA Services and Schema
• Case Study Revisited
• Other Issues
• OGSA Implementations
• Future Directions

23
OGSA Services and Schema

• Examples
• Service discovery
• Service management
• Monitoring
• Security
• Data access messaging
• Services not standards, but useful
  capabilities
• Core services
• Data and information services
• Resource and service management service

24
Core Services

• Name resolution and discovery
• OGSI HandleResolver interface
• Discovery interface
• Querying mapping from semantic information to
  GSHs
• Security
• Policy
• Determine the method of action based on a set of
  conditions (particular context)
• Messaging, queuing, and logging
• Events
• Metering and accounting

25
Data and Information Services

• Data naming and access
• Need for interfaces for naming and accessing data
• Replication
• Metadata and provenance
• Maintaining various forms of metadata

26
Resource and Service Management

• Provisioning and resource management
• Required for negotiating SLAs
• Service orchestration
• DAGman and Chimera systems
• Transactions
• Assure that transactions have executed correctly
• Administration and deployment

27
Case Study Revisited

• Components of the file transfer framework

Keep track of the services
Simple example
28
Flow of File Transfer
STEP
1. Negotiation SLAs
2. Delivery Service
3. Monitoring Infrastructure
DataTransfer
Delivery Service
Initiate desired file transfer !!
client
29
Negotiating SLAs

• Prior to initiating a transfer
• Need SLAs between the storage system and consumer

30
Establishment of delivery service
31
Monitoring Infrastructure
32
Other Issues

• Different features from OO systems
• Not required inheritance
• Does not prescribe any particular development
  approach (e.g. language-specific)
• Service-Oriented Arch. are not without potential
  problems
• IDL may be
• Insufficient to express services and operations
• Hinder high-performance execution
• Limited in their capabilities
• OGSA may have overcome, but it will not be able
  to predict!!

33
OGSA Implementations

• Principles
• Implementing the Grid service instance directly
  as an operating system process
• More specialized component model(such as J2EE)
• Many of behaviors are supported by the hosting
  env.

GridServiceImpl.
Little opportunity for reuse
Protocoltermination
GridServiceImpl.
Protocoltermination
Demarshaling/Decoding
GridServiceImpl.
Protocoltermination
34
OGSA Implementations (cont)

• GT3
• Complete implementation of OGSI
• Discovery services, submission and monitoring of
  jobs,reliable file transfer
• other capabilities are being refactored to be
  OGSI compliant
• Data delivery, replica location, authorization
• Other OGSI impl.
• pyGlobus
• UNICORE

35
Future Directions

• Service and tools
• Implementation
• Semantics
• Scalability

36
Summary

• Everything is represented as a Grid Service
• Important merit of service-oriented model is
  virtualization
• GT3 supports existing GT APIs as well as WSDL
  interfaces
• Development of OGSA represents a natural
  evolution of Web Services
