Title: 1953 cab ride across the Great Northern


1

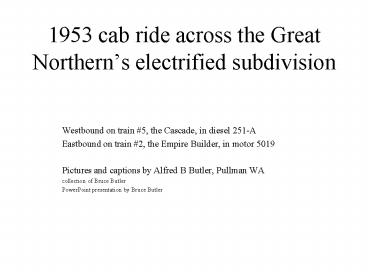

1953 cab ride across the Great Northerns
electrified subdivision
  • Westbound on train 5, the Cascade, in diesel
    251-A
  • Eastbound on train 2, the Empire Builder, in
    motor 5019
  • Pictures and captions by Alfred B Butler, Pullman
    WA
  • collection of Bruce Butler
  • PowerPoint presentation by Bruce Butler

2
Summer 1953 cab ride across GNs electrified zone
3
Original trip notes by Alfred B Butler - part 1
4
Original trip notes by Alfred B Butler - part 2
5
1.1 - No. 5 holds the Main at Monitor for a
meet with No. 6.
6
1.2 - 1251 PM No. 6 shows up on time
7
1.3 - Eastbound Cascadian growles slowly into
the passing track.
8
1.4 - Diesel 251-A idles waiting for 6 to clear.
251-A doing 330 miles/day has run over 1,800,000
miles. 1350 hp each unit.
9
1.5 -Engineer Al White notches back the throttle
with an eye on ammeter. 1000 amps. 250 and 251
are the oldest FTs on GN. 75 RPM per throttle
notch.
10
1.6 - 5 cars trail 251. Friction 5 per ton.
Load 20 per ton on 1 grade.
11
1.7 - Winton tunnel. Engineer got 4 deer last
night. 1.6 grade.
12
1.8 - Rails Trolley reflect light from tunnel
opening. Tunnel on a curve. Pantograph apt to
bounce.
13
1.9 - Length 4059.4 feet. Sound level high.
14
1.10 - Flag stop at Winton. On time at 142 pm
15
1.11 - A hand on the whistle rain on the
windshield.
16
1.12 - new 1,000,000 alignment straightens track.
17
1.13 - Mile post 1696.3 - high trestle tunnel.
18
1.14 - Looking down from the trestle. 2.2 grade.
19
1.15 - A mountain in the way. Short tunnel you
can see thru.
20
1.16 - We crest the grade at Berne. Elevation
2883 ft. Cascade tunnel length 7.79 miles or
41,152 ft.
21
1.17 - 204 pm. Drop 500 ft in 8 miles. 8 mi/hr
wind west to east through open tunnel. 34-36
applications of air from here to Skykomish.
22
1.18 - 10 degree curve. Outside rail elevated
3-3/4 to allow 30 mph speed.
23
1.19 - Slow order. Movement of bank. 15 mph.
GN Geologists are draining hillside. New rail
ready to install.
24
1.20 - Looking back from Engineers side.
Acceleration coasting 12 mph per minute. 1.57
grade.
25
1.21 - Skykomish - on time 250 PM. Rain on
windshield.
26
2.0A - 5 makes a brief pause at Skykomish.
27
2.0B - A wave from Engineer White and 5 is on
its way to Seattle.
28
2.1 - Motor generator sets in the Skykomish
substation. Been running steadily since 1927.
Original bearings. 350 amps at 13,200 volts
9400 H.P.
29
2.2 - Transformers outside. Step down from
110,000 volts to 44,000 volts to 11.500 volts,
11,000 volts 25 cycle on trolley.
30
2.3/2.4 - The Empire Builder, 2, on time from
Seattle at 523 PM arrival in Skykomish. 13 cars.
504 is an EMD E7 unit.
31
2.5 - Electric motor 5019 with heater car backs
on to 2 after the diesel has been cut off.
George Meyers, Engineer.
32
2.6 - Coupled and ready. Switch aligned.
33
2.7 - Notched out on the 2.2 grade to the
tunnel. 30 mph on the tangent track.
34
2.8 - Rated at 1900 tons on 2.2 grade. 5200
H.P. 22 mph. Class W motor, built by General
Electric in 1948.
35
2.9 - A deer bounces across the track.
36
2.11 - Looking back from the Firemans side do
the passengers give a thought to the engine crew?
37
2.12 - Approaching a curve the pantographs seem
about to slide off the trolley wire.
38
2.13 - Slide fences and snaking cars.
39
2.14 - West end of Cascade tunnel at Scenic.
Still 8 miles of 1.57 upgrade. It used to cost
1,000,000 a year to maintain the snowsheds.
40
2.15 - Over the top and into regeneration.
41
2.16 - 5019 is 101 ft long. Wheel diameter 42.
Gear ratio 70/17. Tractive effort 82,600 at
23 mph.
42
2.17 - Dry hills, new ballast slide fence.
43
2.18 - We let her roll!
44
2.19 - Whistling for valley crossings. 22 lb
force against trolley wire.
45
2.20 - Wear on trolley wire 0.001/year.
Resistance 0.2 ohm/mile trolley to rail out and
back. Copper cadmium beryllium alloy. 0000
equivalent. 2300 tension, 150 ft span.
46
3.6 - Cashmere 705 pm, On Time.
47
3.7 - Bob Newton running engine. Superintendent
in charge of the electrification. Dick Harbour on
right.
48
3.8 - Bob Newton, hand on the throttle.
49
3.9 - The meters tell the story. Were doing
about 48 mph!
50
3.11 - We went thru the unit to the rear cab for
a view of the train as we near the Columbia river.
51
3.12 - Yard limit Wenatchee. 55 mph.
52
3.13 - Green signal.
53
3.14 - On time - Wenatchee 720 P.M.
54
3.15 - We say goodbye as diesel 275 takes up the
load.
55
3.16 - Our host for this trip Bob Newton
.
56
Substation graph showing KW in motoring or
regeneration. Eastbound, Skykomish to Levenworth.
57
Substation graph showing KW in motoring or
regeneration. Eastbound, Levenworth to Wenatchee
58
Great Northern timetable showing Wenatchee -
Seattle
59
Data sheet for the W class motors 5018 and 5019
60
The End
  • I hope you have enjoyed this brief look at Great
    Northerns electrified zone, ca 1953
  • Pictures and captions by Alfred B Butler
  • PowerPoint presentation done by Bruce Butler
  • special thanks to Gary Tarbox for his helpful
    suggestions on PowerPoint
