Aeroelastic stability analysis and passive instability suppression

1

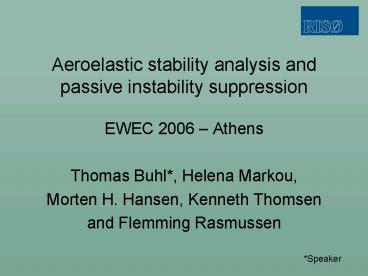

Aeroelastic stability analysis andpassive
instability suppression

• EWEC 2006 Athens
• Thomas Buhl, Helena Markou,
• Morten H. Hansen, Kenneth Thomsen
• and Flemming Rasmussen

Speaker
2
Stability Mechanisms

• Effect of flap/edgewise frequency coincidence
• Effect of flap/edgewise whirling coupling on
  damping
• Effect of torsional stiffness on damping
• Can whirl-flutter happen on a wind turbine?

3
Effect of flap/edgewise frequency coincidence
4
Effect of flap/edgewise frequency coincidence

• ASR turbine
• Isolated blade analysis
• Edge frequency lowered towards the flap frequency
• Four intervals
• 25
• 50
• 75
• 100

5
Effect of flap/edgewise frequency coincidence
Flapwise mode

• Intermediate stiffness reductions gives virtually
  no change
• Full coincidence
• Decreases damping below 21 m/s

6
Effect of flap/edgewise frequency coincidence
Flapwise mode

• Intermediate stiffness reductions gives virtually
  no change
• Full coincidence
• Decreases damping below 21 m/s
• Increases damping above 21 m/s

7
Effect of flap/edgewise frequency coincidence
Edgewise mode

• Intermediate stiffness reductions gives virtually
  no change
• Full coincidence
• Increases damping below 19 m/s

8
Effect of flap/edgewise frequency coincidence
Edgewise mode

• Intermediate stiffness reductions gives virtually
  no change
• Full coincidence
• Increases damping below 19 m/s
• Decreases damping above 19 m/s

9
Effect of flap/edgewise frequency coincidence

• Sectional work

10
Effect of flap/edgewise frequency coincidence
Mode shape at 22 m/s
11
Effect of flap/edgewise whirling coupling on
damping
12
Effect of flap/edgewise whirling coupling on
damping
Edgewise mode

• ASR turbine
• Full turbine analysis
• 100 coincidence increases edgewise damping

13
Effect of flap/edgewise whirling coupling on
damping
Flapwise mode

• 100 coincidence decreases flapwise damping
• Negative damped above 22 m/s

14
Effect of flap/edgewise whirling coupling on
damping
Original ASR
Shaft reduced to 2 of ori.
15
Effect of flap/edgewise whirling coupling on
damping
1st edgewise
1st flapwise
16
Effect of flap/edgewise whirling coupling on
damping
1st edgewise
Bladetip trace
17
Effect of torsional stiffness on damping
18
Effect of torsional stiffness on damping
PRVS turbine Torsional frequency reduced from
10.3 Hz to 3.8 Hz
19
Effect of torsional stiffness on damping
20
Effect of torsional stiffness on damping
21
Effect of torsional stiffness on damping
Tip speed 130 m/s (31 rpm)
Flap modes
Torsion
22
Effect of torsional stiffness on damping
1st edge
Sectional work
23
Can whirl-flutter happen on a wind turbine?
24
Can whirl-flutter happen on a wind turbine?
PRVS - Tower top element reduced in stiffness
25
Conclusions

• ASR An isolated blade analysis of flap-edgewise
  frequency coincidence showed that the damping
  could be decreased and result in instabilities.
• ASR The coupling of the flap/edgewise whirling
  modes can lead to increased damping of the
  edgewise mode when the modes couple at
  standstill.
• PRVS The critical relative wind speed for which
  flutter occurs is 130.75m/s when the torsional
  stiffness is reduced to 20 of the original.
• PRVS The reduction in torsional stiffness leads
  to negative damping of the first edgewise mode
• PRVS Whirl flutter was found when the tower top
  stiffness in the yaw and tilt directions was
  reduced to 1.5 of the original or less.
