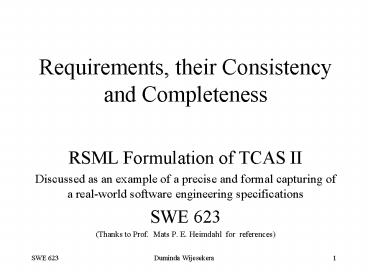

Requirements, their Consistency and Completeness

1
Requirements, their Consistency and Completeness

• RSML Formulation of TCAS II
• Discussed as an example of a precise and formal
  capturing of a real-world software engineering
  specifications
• SWE 623
• (Thanks to Prof. Mats P. E. Heimdahl for
  references)

2
TCAS II

• Traffic alert and collision avoidance system.
• Airborne device functioning independent of ground
  based traffic control.
• All commercial and larger commuter and business
  aircrafts (with 10-30 seats) must have this on
  aboard.
• TCAS I provided proximity warning (traffic
  advisories) and assist the pilot in visualizing
  intruder aircrafts.
• TCAS II recommends escape maneuvers (resolution
  advisories) in a vertical direction to avoid
  collusions.

3
Brief History

• Collision avoidance systems are 25 years old.
• Minimal Operational Performance Standards
  Document (MOPS-1983) was written in a combination
  of English and pseudocode.
• Revised extensively six times.
• Had difficulty in certification, so Government
  started rewriting the document and UCI started an
  experimental formal specification and safety
  analysis.

4
System View

• System Collection of components working
  together.
• Process control input output behavior in the
  presence of disturbances.
• Disturbances due to chemical, aerodynamic,
  thermal or physical laws.
• Operating Constraints
• Range constraints for input/output variables.
• Operating conditions.
• Limits design choices
• May be results of quality control, resource
  bounds, physical limitations, process
  characteristics etc.

5
TCAS Examples

• Maintain minimum separation between aircrafts
• Constraints
• No interfering with ground based air traffic
  control (ATC) functions.
• Acceptably low level of unwanted alarms.
• Minimizing deviation from ATC assigned tracks.

6
Difference between Goals and Requirements

• Goal Avoid near misses (I.e. aircrafts
  violating minimum separation distance)
• A legitimate goal, but cannot determine if it is
  achievable in a given operating environment.
• Therefore cannot be a requirement of the system
  design.
• The system can strive to minimize near misses.

7
Basic Process Control Model

• Control variables ( Vc )
• Process monitored through these
• Manipulated variables ( Vm )
• Controlled through these
• Sensors ( Fs )
• Monitor actual behavior of process
• Actuators ( Fa )
• Devices designed to manipulate process behavior
• Controller ( Fc)
• Device used to implement control function

Disturbances
Process Fp
Controlled Variables
Manipulated Variables
Actuator
Sensors
Controller Fc
Command Signal
8
RSML Approach
Desired process control behavior
Black-box specification of controller behavior
Specifying Controller Design Based on functional
decomposition
Implementation

• Black-box behavior specified using state machine
  model
• Outputs of the controller specified with respect
  to state change in the model as information
  received about current state via controlled
  variables Vc.
• Control function Fc specified using a model of
  the state of all other aircraft within hosts
  space.

9
Basic Definitions

• Input Variables Is,,Output Variables Os
• Controlled Vars Vc ManipulatedVars Vm
• Disturbances D
• Process Function Fp Vm x Is x D x t ? Os x Vc
• Sensor Function Fs Vc x t ? Is
• Actuator Function FA Os x t ? Vm
• Control Function Fc Is x Vc x t ? Os

10
Fc Controller Function

• Modeled as a state machine
• Iteratively refined during requirements
  specification.
• An abstraction of the current understanding of
  real world control loop.
• Most control functions are non-linear equations.
• Modeling errors represent mismatches between real
  world view and state machine view.

11
Design Criteria

• Need black-box behavior, not internal design
  information.
• Minimality and simplicity.
• Formal, concise, coherent notation.
• Readability, reviewability
• Best use of graphics, tables and symbolic.
• Ability to formally analyze safety, completeness
  and consistency.

12
Properties of Statecharts

• And/Or hierarchies.
• Conditions (conditional connectives in RSML)
• I.e. guard determines which Or state to
  transition as a consequence of an even
  triggering.
• Arrays of state machines.
• Example array of other aircraft (statechart)
• Additions
• Directed communication (unidirectional explicit
  FIFO queue) between state charts
• Broadcast mechanisms with some limitations

13
Interface Definitions and Communication Mechanisms

• State-charts modeled components, hence had to
  write interface definitions between models.
• Communication
• Sending machine execute SEND(msg, destination)
  - I.e. receivers name
• Triggers RECEIVE event in destination machine.
• No synchrony hypothesis in communication

14
State Machine Descriptions

• Input variables, output variables and graphical
  state machines
• Attributes of variable include
• Location (machine name),
• Source/destination (external component, eg
  Altimeter)
• Type (eg integer) , Expected Range 9eg 1 to 1000,

• Granularity (10s) , Units meters), Load
  (frequency of change)
• Exception handling (what to do for out of range)
• Traceability information (MOPS document reference)

15
Format ofRSML State Machines
16
Example RSML State-chart
17
(No Transcript)
18
(No Transcript)
19
Encoding States
20
Example State Definition
21
Transitions

• TRANSITION

East
North
North
East

• Had a notation for locations such as
• Location Other_aircraft gt Tracked gt
  Intruder_status_52

22
Notation for Guarding Conditions

• Conditions written in disjunctive normal form and
  tabulated

23
Example Table vs. Logic
24
Example Table vs. Logic
25
Analysis

• Completeness Robustness
• Responsiveness to every possible input and input
  sequence.
• Logical OR of transition condition is a
  tautology.
• Every state having a timeout transition behavior.
• Consistency
• Free of conflicting requirements.
• Free of undesired non-determinism.

26
Completeness D-completeness

• D-Completeness
• The system must respond in real time to any input
  and input sequence. Involves following steps
• At atomic states,
• all behaviors are defined (I.e. all external
  input changes are accounted for) and
• There are no conflicting requirements (source of
  non-determinism)

27
Completeness OR States Cont..

• At OR (Union) states,
• Transition conditions are disjoint.
• Guards of transitions triggered by the same event
  are mutually exclusive.
• Entire domain is covered (OR of conditions is
  True)
• OR of all guards of conditions triggered by same
  event is TRUE.
• (I.e. one and ONLY ONE satisfiable transition out
  of every state)
• AND/OR tabular representation of guards is very
  helpful for analysis.
• In general, this problem is NP complete (3-sat is
  NP hard), but Used BDDs to manipulate
  conditions.

28
Completeness OR - Continued

• At OR (Union) states Problems Encountered,
• BDDs are only good for symbolic manipulations,
  hence a lot of potential errors in the
  specifications are reported.
• Conversely, theorem proving approach will cover
  some of these problems, but is VERY expensive to
  do by itself.
• Would like a hybrid of BDDs talking to theorem
  provers, but such things do not exist yet!
• See Heimdahl, Czerney article in High Assurance
  Systems Engineering Conference 1999 on this point.

29
Completeness AND States

• Two transitions in parallel AND state triggers by
  same event
• If truth value of the guard of one component
  affects the truth value of the other guards, then
  non-determinism may result.
• So RSML check for such dependencies.
• Costly to check, but rare in TCAS specifications.

30
Completeness Serial Composition

• Transition triggering one event may trigger
  another event.
• In order to achieve this effect, the the domain
  of the second must be included in the range of
  the first.
• Thirdly, if an event is generated as a
  consequence of some action, and it is never
  caught any where else, then the specification is
  incomplete.

31
Consequences

• RSML specs are now the official specs for TCAS
  II.
• There are some tools to check d-completeness.
• Many incomplete specifications were detected
  during analysis phase.
• It is difficult to provide guidance in
  eliminating incompleteness's and inconsistencies.
• Sensitivity of the TCAS system How close an
  intruder is allowed to get? RSML specifications
  can be parametrized on sensitivity levels.
• Sensitivity analysis.
