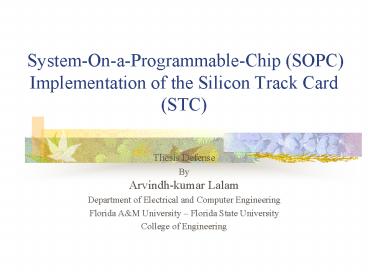

System-On-a-Programmable-Chip (SOPC) Implementation of the Silicon Track Card (STC)

1
System-On-a-Programmable-Chip (SOPC)
Implementation of the Silicon Track Card (STC)

• Thesis Defense
• ByArvindh-kumar Lalam
• Department of Electrical and Computer Engineering
• Florida AM University Florida State University

• College of Engineering

2
Outline

• DZERO Experiment
• Silicon Track Card (STC)
• SOPC Implementation and Validation
• Content Addressable Memory (CAM)
• Hit-Filter Implementation using a CAM
• Results and Conclusions

3
Proton Anti-proton Collision

• Study the properties of known particles
• Eg. top quark
• Look for the unknown

4
DZERO (D0) Experiment

• The DZERO Experiment is conducted in Tevatron
  Collider, at Fermi National Acceleration
  Laboratory
• proton anti-proton are made to collide at high
  velocities in the TeVatron collider
• The beams cross every 132 ns

The TeVatron Collider
5
D0 Detector
6
Particle tracks

• Cross-section of Fiber Tracker (CFT)

7
D0 Trigger
8
The Level_2 STT
L3
9
D0 Trigger -
STC

• road Track information translated for the
  STC

• clusters Groups of strips

• centroid Centroid of a cluster

• hit A centroid that falls in a road

10
STC - Functionality

• Reformats received strip data
• Finds Clusters and their centroids
• Identifies hits
• Stores intermediate data for debugging
• Implements a contention scheme
• Several STCs function simultaneously
• Operates at PCI 33 MHz

11
STC - Main Data Path
12
Control Logic and Channels

• Control Logic designed at BU acts as an interface
• Each Control Logic controls 8 Channels (STCs)
• STC receives SMT data directly from SMT
• commom data bus is used to download hits

13
System-On-a-Programmable-Chip (SOPC)

• Discrete PCB components?
• SOPC
• Altera APEX II EP2A90
• 7M gates 1.5Mbits SRAM
• Xylinx Virtex E XC2V10000
• 10M gates 3.4 Mbits SRAM
• Altera APEX 20KE
• EP20K600EBC652-1X
• Accommodates 1 STC

14
SOPC - Advantages

• The circuit can be fit into a single device
• Occupies smaller area on the board
• Board-design interconnects are less complex
• Internal propagation delays are predictable

15
Computer Aided Design Tools

• Entry and Functional Simulations Quartus II,
• Active HDL 4.2
• Entry in VHDL/Schematics
• Synthesis Quartus II, Synopsys FPGA Express
• Simulation and Configuration Quartus II

16
SOPC Implementation of STC

• Control Logic
• BU
• Silicon Track Card
• FAMU-FSU COE
• Used Test memory
• space to store test
• vectors of SMT data

17
SOPC Implementation - Hit download
18
SOPC Implementation - Result
Channel Hits Trailers Hit-words
STC0 7 1 8
STC1 2 1 2
Contention is successfully resolved
19
STC - Resources
Device Family Chip Logic Elements Memory bits Pins
FLEX (CPLD) EPF10K100EBC356-1 4,340 (83) 10,532 (21) 257 (94)
FLEX (CPLD) EPF10K200EGC599-1 2,941 (29) 79,424 (80) 466 (99)
FLEX (CPLD) EFF10K200SFC484-1 1,860 (18) 10,692 (10) 292 (79)
FLEX (CPLD) Total 10,361 96,612 829
APEX (SOPC) EP20K600EBC 652-1X 6,744 (27) 105,828 (33) 262 (53)
20
Content Addressable Memory(CAM)

• A memory like RAM and FIFO
• Takes data as input and provides the location
• Output can be encoded or unencoded
• A found signal is used to signal presence of
  data

21
Dont cares

• Dont-cares can be used to represent multiple
  digital words
• A dont-care (d) represents both 1 and 0
• CAMs that accommodate dont-cares are called
  Ternary CAMs
• Eg APEX CAM

22
APEX CAM

• Memory blocks of Alteras APEX chip can be used
  as a Ternary CAM
• The data can be stored in two ways
• During power-up (using an .mif file)
• During run-time

23
Previous Hit Filter

• Receives roads and centroids
• Internally stores roads
• Uses hit-match modules to find if a centroid
  falls in the roads
• When a centroid falls in a road, it is a hit
• Each hit-match generates a bit 1 for hit

24
Previous Hit Filter Block Diagram

• Contains 46 hit-match modules
• Each of the centroids is checked in all roads
• The locations of 1s are encoded to generate a
  hit-word
• Hit-format, designed in VHDL, uses Finite State
  Machine
• Hit-format module sequentially searches for hits.

25
Hit Filter CAM-only model

• Uses memory blocks instead of a combinational
  circuit (comparator)
• Set of all the words existing between the road
  boundaries is called a road-set
• Each road-set can be minimized to 12 words by
  using dont cares
• road-sets of each road are stored in the memory

26
Minimized Road-Set
1000 0000001 . . 1000 1111110
27
CAM-only model Implementation
28
CAM-only Model - Functionality

• Storing roads
• The road-set is minimized by using the dont
  cares
• The minimized road-set is stored in an APEX CAM
• The CAM needs 50 clock cycles to store each
  road-set
• Checking for hits
• Each of the centroids is given as input to the
  CAM
• If the centroid is found in the road-set, CAM
  returns all the encoded locations.
• CAM takes only two clock cycles to find the
  location of first hit

29
Hit Filter With New Encoder

• Uses previous comparator block and a new
  hit-word generator block
• The locations of 1s in the comparator word are
  encoded using a CAM

30
Hit Filter Implementation
31
CAM as Encoder
32
Hit Filter Encoder Map
46 x 46 Encoder Map
33
Hit-Word Generator
34
Hit Filter Results
Number of clock cycles required for storing road
information
6 roads (consecutive) 6 roads (distributed) 46 roads
Sequential search (contains comparator) 6 46 46
CAM only 270 310 2070
With CAM block in hit-word generator (contains comparator) 6 46 46
This depends on the upper and lower words of
the road. The quoted figures correspond to the
worst possible case.
35
Hit Filter Results
Number of clock cycles required for finding hits
6 roads (consecutive) 6 roads (distributed) 46 roads
Sequential search (contains comparator) 32 150 232
CAM only 10 10 50
With CAM block in hit-word generator (contains comparator) 10 10 50
36
STC Results

• Event 1 SMT data for a simple event
• Event 2 SMT data for a complex event

37
Conclusions

• SOPC implementation was successfully verified
• The upgraded STC shows an improvement of upto
  87

38
Future Work

• The number of roads Hit-Filter can accommodate
  can be increased

39
Acknowledgements

• National Science Foundation and the US Department
  of Energy.
• Boston University
• Faculty Heintz, Narain, Popkov
• Engineers Earle, Hazen
• Students Kevin, Zabi
• Florida State University Physics
• Faculty Adams, Prosper, Wahl
• Postdocs Tentindo-Repond
• Florida AM University Florida State University
  COE
• Faculty Perry
• Students Lolage, Meyers, Roper, Saunders
• Altera, Aldec, Synopsys
