Normalization

1

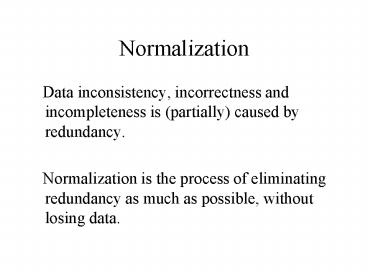

Normalization

• Data inconsistency, incorrectness and
  incompleteness is (partially) caused by
  redundancy.
• Normalization is the process of eliminating
  redundancy as much as possible, without losing
  data.

2
Tools of Normalization

• Normalization is achieved by
• lossless decomposition
• functional dependency

3
Functional dependency

• A functional dependency is a 1-n relation of a
  set of attributes within a relation to another
  set of attributes in the same relation.
• Example anr ? last_name

4
Functional dependency
Airport is functionally dependent on IATA. For
each airport, exactly one IATA exists. Notation
IATA ? Airport
5
Case Description

• Airline Reservation System (assignment 1999)
• Flights are operated by Carriers
• flight number, origin, destination, ETD, ETA
• destination is coded in IATA codes
• Passengers make a Reservation
• last name, initials, passport, nationality
• booked, standby, checked in, boarded

6
UNF
7
UNF (continued)
8
First Normal Form

• A relation is in first normal form if, and only
  if all domains contain atomic values only

• Problems with current tables
• Carrier contains both ID and full name
• Departure and Arrival contains both date and time
• Solution
• Split up columns

9
1 NF

• Anomalies
• Flights without reservations do not exist
• Carriers without flights do not exist

10
Second Normal Form

• A relation is in second normal form if, and only
  if the relation is in first normal form and if
  all non key-attributes are fully functionally
  dependent on the primary key.

• Full functional dependency A ? B is a functional
  dependency on B of A, so that B is not dependant
  on a part of A.
• Example
• anr last_name ? address,

11
1NF Dependency Diagram
12
2NF Violations

• FlightNumber is a determinant for Destination,
  Origin, CarrierID and CarrierName
• Passport is a determinant for Initials, LastName
  and Nationality.
• FlightNumber and DepartureDate together determine
  DepartureTime, ArrivalDate and ArrivalTime.
• FlightNumber, Passport and DepartureDate together
  determine Status.

13
Splitting up the tables...
Anomalies Carriers without flights cannot be
stored in the database
14
Third Normal Form

• A relation is in third normal form if, and only
  if the relation is in second normal form and if
  all non key-attributes are non-transitively
  dependent on the primary key.

A transitive dependency is a situation where two
functional dependencies are related in the sense
that A ? B and B ? C In other words C is
transitively dependent on A
15
2NF Dependency Diagram
3NF violation FlightNo ? CarrierId CarrierId ?
CarrierName
16
Splitting up the tables...
17
Boyce-Codd Normal Form
Relations in 3NF can still contain redundancy
when 1. A relation has two or more candidate
keys, and 2. Candidate keys are composite keys,
and 3. Candidate keys overlap. Boyce-Codd Normal
form A relation is in BCNF if all determinants
are candidate keys. Usually, a relation that is
in 3NF is in BCNF too.
18
Conclusion Normalization

• 1NF a relation is in 1NF iff all cells contain
  atomic values only.
• 2NF a relation is in 2NF iff it is in 1NF and
  all non-key attributes are fully functionally
  dependent on the primary key
• 3NF a relation is in 3NF iff it is in 2NF and
  all non-key attributes are non-transitively
  dependent on the primary key
• BCNF a relation is in BCNF iff all determinants
  are candidate keys.
• Tools of normalization are functional dependency
  and
• lossless decomposition.

19
Normalisation assignment 2000

• Case Study Digital Library
• Database components
• Document Records
• Thesaurus

20
(No Transcript)
21
Thesaurus

• A thesaurus consists of Terms and Relationships
• Example
• information retrieval - narrower term - text
  retrieval
• TERM Relationship TERM
• A document is classified into a (set of)
  thesaurus entries.

22
Linking records with thesauri

• Example
• Conceptualising information spaces in federated
  digital libraries (Papazoglou M, Hoppenbrouwers
  J) 1999 SIGMOD Record
• has keywords meta data semantics information
  retrieval query optimisation federated data
  base electronic library

23
UNF digital library
Bibliographic Records Table
Thesaurus Table
NOT A GOOD IDEA!
