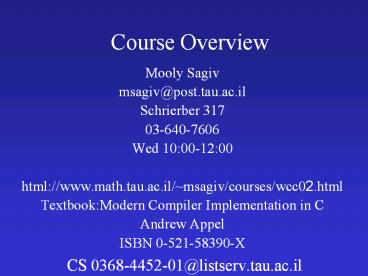

Course Overview

1
Course Overview

• Mooly Sagiv
• msagiv_at_post.tau.ac.il
• Schrierber 317
• 03-640-7606
• Wed 1000-1200
• html//www.math.tau.ac.il/msagiv/courses/wcc02.ht
  ml
• TextbookModern Compiler Implementation in C
• Andrew Appel
• ISBN 0-521-58390-X
• CS 0368-4452-01_at_listserv.tau.ac.il

2
Outline

• High level programming languages
• Interpreter vs. Compiler
• Abstract Machines
• Why study compilers?
• Main Compiler Phases

3
High Level Programming Languages

• Imperative
• Algol, PL1, Fortran, Pascal, Ada, Modula, and C
• Closely related to von Neumann Computers
• Object-oriented
• Simula, Smalltalk, Modula3, C, Java, C
• Data abstraction and evolutionaryform of
  program development
• Class An implementation of an abstract data type
  (datacode)
• Objects Instances of a class
• Fields Data (structure fields)
• Methods Code (procedures/functions with
  overloading)
• Inheritance Refining the functionality of a class
  with different fields and methods
• Functional
• Lisp, Scheme, ML, Miranda, Hope, Haskel
• Logic Programming
• Prolog

4
Other Languages

• Hardware description languages
• VHDL
• The program describes Hardware components
• The compiler generates hardware layouts
• Shell-languages Shell, C-shell, REXX
• Include primitives constructs from the current
  software environment
• Graphics and Text processing TeX, LaTeX,
  postscript
• The compiler generates page layouts
• Web/Internet
• HTML, MAWL, Telescript, JAVA
• Intermediate-languages
• P-Code, Java bytecode, IDL, CLR

5
Interpreter

• Input
• A program
• An input for the program
• Output
• The required output

interpreter
6
Example
C interpreter
7
Compiler

• Input
• A program
• Output
• An object program that reads the input and
  writes the output

compiler
8
Example
Sparc-cc-compiler
add fp,-8, l1 mov l1, o1 call
scanf ld fp-8,l0 add l0,1,l0 st
l0,fp-8 ld fp-8, l1 mov l1,
o1 call printf
assembler/linker
object-program
9
Interpreter vs. Compiler

• More efficient
• Compilation is done once for all the inputs ---
  many computations can be performed at
  compile-time
• Sometimes evencompile-time execution-time lt
  interpretation-time
• Can report errors before input is given

• Conceptually simpler (the definition of the
  programming language)
• Easier to port
• Can provide more specific error report
• Normally faster

10
Interpreters provide specific error report

• Input-program
• Input data y0

scanf(d, y) if (y lt 0) x 5 ... if (y
lt 0) z x 1
11
Compilers are usually more efficient
Sparc-cc-compiler
add fp,-8, l1 mov l1, o1 call
scanf mov 5, l0st l0,fp-12 mov
7,l0 st l0,fp-16 ld fp-8, l0 ld
fp-8,l0 add l0, 35 ,l0 st
l0,fp-8 ld fp-8, l1 mov l1,
o1 call printf
12
Compilers can provide errors beforeactual input
is given

• Input-program
• Compiler-Output line 4 improper
  pointer/integer combination op ''

int a100, x, y scanf(d, y) if (y lt
0) / line 4/ y a
13
Compilers can provide errors beforeactual input
is given

• Input-program
• Compiler-Output line 88 x may be used before
  set''

scanf(, y) if (y lt 0) x 5 ... if (y lt
0) / line 88 / z x 1
14
Abstract Machines

• A compromise between compilers and interpreters
• An intermediate program representation
• The intermediate representation is interpreted
• Example Zurich P4 Pascal Compiler(1981)

• Other examples Java bytecode, MS .NET
• The intermediate code can be compiled

Pascal compiler
P-code
interpreter
programs input
15
Why Study Compilers

• Become a compiler writer
• New programming languages
• New machines
• New compilation modes just-in-time
• Using some of the techniques in other contexts
• Design a very big software program using a
  reasonable effort
• Learn applications of many CS results (formal
  languages, decidability, graph algorithms,
  dynamic programming, ...
• Better understating of programming languages and
  machine architectures
• Become a better programmer

16
Course Requirements

• Compiler Project 35
• Develop a Tiger Front-End in C
• Two parts
• LexYacc (Chapter 2, 3, 4)
• Semantic analysis (5, 12)
• Tight schedule
• Bonus 10
• Theoretical Exercises 15
• Final exam 50

17
Compiler Phases

• The compiler program is usually written as
  sequence of well defined phases
• The interfaces between the phases is well defined
  (another language)
• It is sometimes convenient to use auxiliary
  global information (e.g., symbol table)
• Advantages of the phase separation
• Modularity
• Simplicity
• Reusabilty

18
Basic Compiler Phases
Source program (string)
Finite automata
lexical analysis
Tokens
Pushdown automata
syntax analysis
Abstract syntax tree
semantic analysis
Memory organization
Translate
Intermediate representation
Instruction selection
Dynamic programming
Assembly
Register Allocation
graph algorithms
Fin. Assembly
19
Examplestraight-line programming
Stm Stm Stm //(CompoundStm) Stm id
Exp // (AssignStm) Stm print (ExpList) //
(PrintStm) Exp id // (IdExp) Exp
num // (NumExp) Exp Exp Binop Exp //
(OpExp) Exp (Stm, Exp) // (EseqExp) ExpList
Exp, ExpList // (PairExpList) ExpList
Exp // (LastExpList) Binop //
(Plus) Binop - // (Minus) Binop
// (Times) Binop / // (Div)
20
Example Input
a 5 3 b ( print(a, a-1),
10 a) b print(b)
21
Questions

• How to check that a program is correct?
• How to internally represent the compiled program?

22
Lexical Analysis

• Input string
• Tokens

a\b 5 3 \nb (print(a, a-1), 10 a)
\nprint(b)
id (a) assign num (5) num(3) id(b) assign
print(id(a) , id(a) - num(1)), num(10)
id(a)) print(id(b))
23
Syntax Analysis

• Tokens
• Abstract Syntax tree

id (a) assign num (5) num(3) id(b) assign
print(id(a) , id(a) - num(1)), num(10)
id(a)) print(id(b))
CompoundStm
CompoundStm
AssignStm
AssignStm
opExp
id
eseqExp
id
numExp
numExp
opExp
Plus
a
PrintStm
b
5
3
24
Summary

• Phases drastically simplifies the problem of
  writing a good compiler
• The Textbook offers a reasonable partition into
  phases with interface definition (in C)
• Every week we will study a new compiler phase
