Title: Quality Assurance: Reviews and Walkthroughs


1

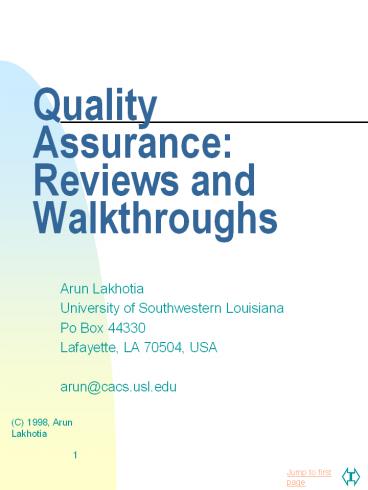

Quality Assurance Reviews and Walkthroughs
  • Arun Lakhotia
  • University of Southwestern Louisiana
  • Po Box 44330
  • Lafayette, LA 70504, USA
  • arun_at_cacs.usl.edu

2
Reference
  • Steve McConnell, Code Complete, Microsoft Press,
    1993.
  • See Chapter 24 and parts of Chapter 23
  • Keywords
  • Quality attributes
  • Faults, failures
  • Review
  • Walkthrough

3
Terminology
  • Failure
  • Externally observable incorrect behavior
  • Fault (bug, defect)
  • Internal cause of the external failure
  • Fix
  • Change the internals or environment to remove the
    failure

4
Software quality characteristics
  • Correctness
  • Usability
  • Efficiency
  • Reliability
  • Integrity
  • Adaptability
  • Robustness
  • Accuracy
  • Maintainability
  • Flexibility
  • Portability
  • Reusability
  • Readability
  • Testability
  • Understandability

5
Quality trade-offs
  • Correctness
  • Functioning exactly to specifications
  • Adaptability
  • Used in an environment or application for which
    it is not designed
  • Robustness
  • Functioning in the presence of invalid inputs
  • Increasing one may decrease the other

6
Quality improvement techniques
  • Dynamic -- by executing
  • Unit testing
  • Functional testing
  • Static -- without executing
  • Inspection
  • Code walkthroughs
  • Extern audit
  • Code reading
  • Desk check
  • Proof of correctness
  • Organizational
  • Written quality objectives
  • Development process
  • Explicit QA activity
  • Change control process

7
Effectiveness of QA techniques
  • Percent of total defects found in the life of a
    system by a technique
  • QA step Mean
  • Desk checking (Design) - 35
  • Informal review - 40
  • Formal inspection (Design) - 55
  • Formal inspection (Code) - 60
  • Prototyping - 65
  • Desk-checking code - 40
  • Unit testing - 25
  • Function testing - 35
  • Integration testing - 45
  • Field testing - 50

8
Cost of finding defects
  • In the beginning static techniques are more
    expensive
  • Overtime static techniques are cheaper and find
    higher number of bugs
  • Code reading found 80 more faults per hour

9
Effectiveness of QA techniques
  • No single technique finds greater than 65 (mean)
    errors
  • Unit testing - only 25
  • Combination of techniques needed
  • Combining any two techniques may increase the
    detection rate two fold
  • Static and dynamic processes find different types
    of defects
  • Dynamic techniques find about 60

10
Cost of fixing defects
  • How defects are found and the cost of fixing
    them.
  • Inspection
  • Finding and fixing in one step
  • 3 hours per defect
  • Testing
  • Find failure
  • Find case of failure (bug) and fix
  • Two steps
  • 12 hours per defect

11
Static techniques
  • Also called Reviews
  • Formal Inspection
  • Code walkthroughs
  • Code reading

12
Formal inspection
  • Formal
  • Well defined procedure
  • Well defined roles
  • Well defined expectations
  • Well defined output

13
Formal Inspection Roles
  • Moderator
  • Author
  • Reviewers
  • Scribe
  • but not Management
  • The roles of moderator, author, and reviewer
    should be played by different people.

14
Formal Inspection Process
  • Planning
  • Author gives material to moderator
  • Moderator identifies reviewers, provides them
  • Material
  • Checklist
  • Overiew Author gives overview
  • Preparation
  • Reviewer work independently and review material
  • Prepare a list of problems
  • Based on checklist
  • Inspection meeting
  • Go over the material at a reasonable pace
  • Identify defects
  • Do not fix
  • Scribe takes notes
  • Report Rework Followup

15
Code walkthroughs
  • Author
  • identifies possible reviewers
  • Gives them material
  • Reviewers
  • Read the code to find defects
  • Give feedback in a meeting
  • Emphasize on defect detection, not removal

16
Code Reading
  • Author
  • gives code to code readers
  • Readers
  • read it independently
  • prepare a list of problems identified
  • Give the list to the developer
  • in meeting
  • or outside meeting
