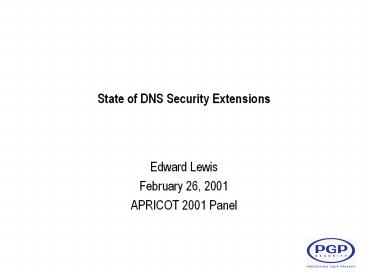

State of DNS Security Extensions

1
State of DNS Security Extensions

• Edward Lewis
• February 26, 2001
• APRICOT 2001 Panel

2
Agenda

• Brief overview of DNS Security Extensions
• Current state of specifications
• Current state of software
• Efforts underway

3
DNSSEC Components

• Name server to name server protections
• Digital signatures, KEY, SIG, NXT records
• Scaleable, Internet-wide transfers
• Query/Response protections
• TSIG addition to message, also a digital sig
  approach
• Resolver to "default" name server, zone transfer
• Publication of certificates
• Distribution of X.509, PGP certificates, CERT
  record
• Dynamic update security
• Authentication and authorization to change zones

4
DNSSEC in the network
top level domain
root server
authoritative name server
KEY RR, SIG RR, NXT RR
conference machine
TSIG
recursive (conference net) name server
5
IETF Status

• The current document set is at the Proposed
  Standard level
• Documents are listed in upcoming slides
• The documents are to be rewritten as early
  experience is gained
• The goal is to progress to Draft Standard in 2002

6
Implementations

• ISC's BIND
• First in version 8.2
• Full implementations starting in version 9
• Current version 9.1.x
• Some implementations in other code bases, none
  are publicly or widely available

7
KEY, SIG and NXT

• Documents
• RFC 2535, Basic definition
• RFC 2536, 2537 Key and signature algorithms
• RFC 2539 Diffie-Hellman keys
• Updates to this set
• RFC 3008 Signing authorization model
• More coming soon

8
What works

• Key generation
• Making, storing keys
• Signing and loading zones
• Addition of signatures, NXTs, to zones
• Basic validation of data
• Resolver fetches keys and verifies signatures

9
Remaining Issues

• Validation of child by parent (delegator)
• Child zone keys have to signed by parent zone
• Impact on high-volume TLDs
• Negative response issues
• NXT record does not satisfy everyone
• Impact on staff operations
• Management and protection of keys
• Need to sign zone data at intervals
• regular intervals - week? month? year?
• Interaction with parent zone

10
Query/Response

• Documents
• RFC 2535, in the basic definition
• Updates
• RFC 2845 Secret Key Transaction (TSIG)
• RFC 2931 Public Key Query/Response approach

11
What works

• Use of TSIG for zone transfers
• Addition of TSIG to authoritative servers to
  protect NOTIFY and AXFR
• Use of TSIG to authorize dynamic updates
• Updates can be restricted based upon the key used
  to sign request

12
Remaining Issues

• Distributing and Configuring Secrets for general
  queries
• General purpose queries, larger scale
• Where is the secret stored on a multiuser
  machine?
• Use of TKEY and SIG(0)
• Not in widespread use, not much experience

13
Publishing Certificates

• Documents
• RFC 2538 Basic definition
• What works
• CERT Record, simple addition to DNS
• Issues
• Software for applications to insert and extract
  certificates from DNS

14
Securing Dynamic Update

• Documents
• RFC 2136 Dynamic Update
• RFC 2137 Secure Dynamic Update (not implemented)
• RFC 3007 Secure Dynamic Update (implemented)

15
What Works/Issues

• Authorizing updates based upon keys used to sign
  request
• No longer need to trust based upon IP address
• Keeping signatures up to date
• Data not updated becomes stale
• Need tools to fix this

16
Other issues

• Need for applications to make use of these new
  features
• E.g., a secure shell implementation that uses
  keys from DNS
• E.g., a web browser that lets user know if the
  web site's address was digitally signed for
  protection
• E.g., a simple method for users to publish their
  personal certificates for email

17
Who's Working On It

• Status meeting summarized in
• draft-lewis-state-of-dnssec-00.txt
• Minutes of December meeting at San Diego IETF
• Attendees
• NLnet Labs, Verisign, The Foundation for Internet
  Infrastructure, Root Server System Advisory
  Committee, National Institute of Standards and
  Technology, Defense Information Systems Agency,
  RIPE NCC, Network Associates, Information
  Sciences Institute

18
Summary

• DNSSEC is a lot of work to define and implement
• Progress is happening, but not at a
  lightening-fast rate
• There is a lot of interest in the technology
• No matter the outcome, maintaining security will
  always increase workload,
• We do want to keep the increase to a minimum
