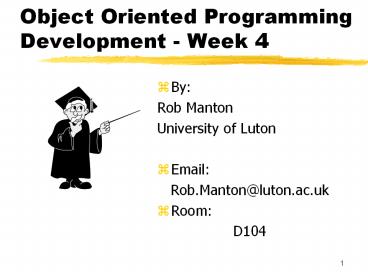

Object Oriented Programming Development - Week 4

1
Object Oriented ProgrammingDevelopment - Week 4

• By
• Rob Manton
• University of Luton
• Email
• Rob.Manton_at_luton.ac.uk
• Room
• D104

2
Module Outline

• Introduction
• The non object oriented basics
• Classes
• Design Approaches
• Testing

• Inheritance
• Aggregation
• Polymorphism
• Multifile Development

3
Today

• Functions recap
• Classes recap
• Objects recap
• Object Persistence and Visibility.

4
Functions (not OO)

• void doSomething()
• int main()
• doSomething()
• return 0
• void doSomething()
• printf("Hello World!\n")
• .

• Function declaration goes before main(). Function
  body goes afterwards or alternatively put these
  in a separate file and include it.

5
Working with classes

• For small classes you can add the definition
  above main() and the implementation below, but it
  is more usual to place them in separate files..

6
Working with classes

• Definition file (.h) and implementation file
  (.cpp) are added to project automatically when
  you do Insert/New Class

7
The two steps of Object Oriented Programming

• Making Classes Creating, extending or reusing
  abstract data types.
• Making Objects interact Creating objects from
  abstract data types and defining their
  relationships.

8
Example The Creature class

• class Creature
• private
• int yearOfBirth
• public
• void setYearOfBirth(year)
• yearOfBirth year
• int getYearOfBirth()
• return yearOfBirth

born1997
9
Example The Creature class

• class Creature
• private
• int yearOfBirth
• public
• void setYearOfBirth(year)
• yearOfBirth year
• int getYearOfBirth()
• return yearOfBirth

• The definition of a
• class
• The class keyword, followed by the class name.
• private attributes.
• public methods.
• the at the end

10
Example The Creature class

• class Creature
• private
• int yearOfBirth
• public
• void setYearOfBirth(year)
• yearOfBirth year
• int getYearOfBirth()
• return yearOfBirth

• This class has anattribute of typeint.
• Note that each C
• data type and also abstract data types can be
  used as attribute types.

11
Example The Creature class

• class Creature
• private
• int yearOfBirth
• public
• void setYearOfBirth(year)
• yearOfBirth year
• int getYearOfBirth()
• return yearOfBirth

• This class has two (public) methods. One to set
  the attribute value and the other to retrieve the
  attribute value.

12
Example The Creature class

• class Creature
• private
• int yearOfBirth
• public
• void setYearOfBirth(year)
• int getYearOfBirth()
• void CreaturesetYearOfBirth
• yearOfBirth year
• int CreaturegetYearOfBirth()
• return yearOfBirth

Note that unless the methods are very short,
declaration and implementation is usually
separated. The declaration goes into a header
file (.h), the implementation in a .cpp file.
13
Example The Creature class

• class Creature
• private
• int yearOfBirth
• public
• void setYearOfBirth(year)
• yearOfBirth year
• int getYearOfBirth()
• return yearOfBirth

This method is an example for a modifier
method. It modifies the attribute. The method
changes the state of the object.
14
Example The Creature class

• class Creature
• private
• int yearOfBirth
• public
• void setYearOfBirth(year)
• yearOfBirth year
• int getYearOfBirth()
• return yearOfBirth

This method is an example for a selector
method. It returns information about the
attribute but does not change the state of the
object.
15
Classes Objects

• What may be different for all objects in a class,
  and what remains the same?
• All the objects in a class may have different
  attribute values (state data), but their allowed
  behaviours are all the same.

So a class is a blueprint for objects
16
Objects Classes

• A class is defined by
• A Unique Name
• Attributes
• Methods

• An object is defined by
• Identity
• State
• Behaviour

17
Instantiating Objects

• An object is instantiated just like any other
  data type
• int x
• char y
• Creature z

Declaring z of type creature means we have
generated an object with the attributes and
methods of the class.
18
Multiple Objects

• Of course we can create many objects of the same
  class
• Creature myDog
• Creature theMilkman
• Creature myBestFriend

Creates three objects.
19
Sending Messages / Calling
Methods.

• A message is send to an object by calling a
  method of this object. Use the . (dot) for
  calling a method of an object.
• int k
• k theMilkman.getYearOfBirth()
• myDog.setYearOfBirth(1998)

Messages are sent to my dog and the milkman.
20
Back to the Instantiation...

• An object is instantiated just like any other
  data type
• int x
• char y
• Creature z

Here the default constructor of the Creature
class is automatically called. If we dont like
this we can specify constructors explicitly!
21
The Creature class with a user defined default
constructor.

• class Creature
• private
• int yearOfBirth
• public
• //
• Creature()
• yearOfBirth 1970
• cout ltlt Hello.

• The syntax for a constructoris similar as for a
  method, but
• It has the same name as the class.
• It has no return value.

22
The Creature with a parametrized constructor.

• class Creature
• private
• int yearOfBirth
• public
• //
• Creature(int year)
• yearOfBirth year

This constructor can be used as
follows Creature theMilkman(1953) instantiates
a 49 years old milkman.
23
The Creature with a copy constructor.
Example Creature myDog(1995) Creature
myCat(myDog) creates a cat of the same age as
the dog.

• class Creature
• private
• int yearOfBirth
• public
• //
• Creature(Creature otherCreature)
• yearOfBirth
• otherCreature.getYearOfBirth()

24
Constructors - summary

• A constructor is always called when an object is
  created.
• We can define our own constructors (Note a class
  can have more than one constructor).
• If an object is copied from another object then
  the copy constructor is called.

25
Classes exercise

• On paper for a change.

26
Again Objects Classes

• A class is defined by
• A Unique Name
• Attributes
• Methods

• An object is defined by
• Identity
• State
• Behaviour

27
Again Objects Classes

• A class is defined by
• A Unique Name
• Attributes
• Methods

• An object is defined by
• Identity
• State
• Behaviour

But We can give a class state and behaviour with
the keyword static!
28
Example The Creature class

• class Creature
• private
• int yearOfBirth
• static int numberOfAllCreatures 0
• public
• Creature() // Constructor - counts the
  creatures.
• numberOfAllCreatures
• static int getNumberOfAllCreatures()
• return numberOfAllCreatures

Note that all objects share the same value of the
class attribute numberOfAllCreatures.
29
Last Weeks Summary.

• A class is a blueprint for an object.
• Objects are created similar to other data types
  (int, char, ).
• The construction of an object can be defined by
  the user.
• Messages are sent to an object by calling a
  method.
• static messes the concept of classes and objects
  (but is nevertheless useful).

30
This weektypes of object

• Four types of object (or any other data type)
• Automatic (local) objects
• External (global) objects
• Static objects
• Dynamic objects

31
Types of object

• Four types of object (or any other data type)
• Automatic (local) objects
• External (global) objects
• Static objects
• Dynamic objects

First three are objects with specific names
32
Types of object

• Four types of object (or any other data type)
• Automatic (local) objects
• External (global) objects
• Static objects
• Dynamic objects

When objects are predictable enough to be
identified at compile time
33
Types of object

• Four types of object (or any other data type)
• Automatic (local) objects
• External (global) objects
• Static objects
• Dynamic objects

No fixed unique name Identified by the memory
address which they occupy
34
Types of object

• Four types of object (or any other data type)
• Automatic (local) objects
• External (global) objects
• Static objects
• Dynamic objects

For objects that cant be defined at compile
time their number or identity may vary at run
time
35
Automatic objects

• Instantiated within the scope of a part of the
  program (between curly brackets somewhere)
• Automatically destroyed when object falls out of
  scope
• visible only within that scope (between when
  object declared and closing )

36
External (global) objects

• Persistent
• Visible throughout program module
• Instantiated outside any scope (curly brackets in
  C) - usually at the top of your .cpp file
• automatically destroyed when program finishes
• can be referenced from other modules via extern
  keyword

37
Static objects

• As mentioned last week
• Persistent for whole program - the same lifetime
  as an external (global) object - useful to
  remember state
• scope as for automatic object
• uses keyword static

38
Dynamic objects

• Useful where we cant predict object identities,
  number or lifetimes.
• Created using the new keyword (you get a pointer
  to the object)
• Destroyed using the delete keyword
• Not destroyed automatically You have to do it
  yourself!!

39
The lifetime of named objects (the first three)

• Automatic (local) objects exist while they are in
  scope
• External (global) objects have file scope and
  exist for the whole program
• Static objects - may be instantiated in local
  scope with local visibility but persist from
  their declaration to the end of the program

40
class header file creature.h

• class creature
• private
• int yearOfBirth
• public
• creature()
• virtual creature()
• void setYearOfBirth(int year)
• int getYearOfBirth()

Private member variable (for encapsulation..)
Public constructor with no parameters
Modifier function (set something)
Accessor function (get something)
41
class implementation file creature.cpp

• creaturecreature()
• cout ltlt "constructor called for creature class."
  ltlt endl
• creaturecreature()
• cout ltlt "destructor called for creature class."
  ltlt endl
• int creaturegetYearOfBirth()
• return yearOfBirth
• void creaturesetYearOfBirth(int year)
• yearOfBirth year

Text message added to constructor and destructor
to demonstrate when objects are created and
destroyed
42
Automatic objects

• int main()
• cout ltlt "beginning of main function." ltlt endl
• creature myDog
• cout ltlt "end of main function." ltlt endl
• return 0

43
Automatic objects
With automatic object, object destroyed
automatically when it goes out of scope
(destructor gets called)
44
Automatic objects

• int main()
• cout ltlt "beginning of main function." ltlt endl
• creature myDog
• cout ltlt "end of main function." ltlt endl
• return 0
• cin

Automatic object now within local scope defined
by the curly brackets
45
Automatic objects
Because it is declared in local scope the
automatic object is now automatically destroyed
when it goes out of scope, which is before the
end of the main function
46
Automatic objects

• creature myDog
• myDog.setYearOfBirth(1966)

47
Automatic objects

• creature myDog
• myDog.setYearOfBirth(1966)

This is legal. myDog is still in scope.
48
Automatic objects

• creature myDog
• myDog.setYearOfBirth(1966)

49
Automatic objects

• creature myDog
• myDog.setYearOfBirth(1966)

This is not legal because myDog has gone out of
scope (and been automatically destroyed) when the
call to setYearOfBirth() is made.
50
External (global) objects

• creature myDog
• int main()
• cout ltlt "beginning of main function." ltlt endl
• myDog.setYearOfBirth(1966)
• cout ltlt "end of main function." ltlt endl
• return 0

Object declared outside of any function or scope.
This is legal because object is visible
throughout entire program
51
External (global) objects
With external (global) object, object is
automatically destroyed when program ends
52
External (global) objects

• creature myDog
• myDog.setYearOfBirth(1966)
• int main()
• cout ltlt "beginning of main function." ltlt endl
• cout ltlt "end of main function." ltlt endl
• return 0

Not legal can only call methods and functions
from within the braces of a function body
53
External (global) objects

• When is it useful to have a global object or
  variable?
• To make the object or variable visible in other
  source files within the same project
• only externally declared objects can be
  referenced in other program modules (other .cpp
  files)
• known as external linkage
• use extern keyword

54
External (global) objects
Say we have another class called person declared
in person.h and implemented in person.cpp To
refer to the myDog declared in the main file, we
repeat the declaration creature myDog, but adding
the extern keyword

• extern creature myDog
• void personcheckDog()
• int dobmyDog.getYearOfBirth()
• cout ltlt "the dog was born in" ltlt dob

This calls the same creature object declared in
the other program file
55
Static objects

• objectobject()
• value0
• void objectaddValue(int value_in)
• valuevalue_in
• int objectgetValue()
• return value

This is part of the implementation file for a new
class called object which we use to demonstrate
the difference between auto and static objects...
56
Static objects

• for (i0ilt5i)
• cout ltlt "now on iteration number " ltlt i
  ltltendl
• object auto_object
• auto_object.addValue(1)
• static object static_object
• static_object.addValue(1)
• cout ltlt "auto object contains " ltlt
  auto_object.getValue() ltlt endl
• cout ltlt "static object contains " ltlt
  static_object.getValue() ltlt endl

We compare two different types of object - the
auto version and the static one. Both are created
from the same class, the only difference is the
use of the keyword static
57
Static objects
Auto object gets destroyed when it goes out of
scope at end of each loop. Static object persists
and doesnt get destroyed when it goes out of
scope
58
Static objects
Auto object gets destroyed when it goes out of
scope at end of each loop. Static object persists
and doesnt get destroyed when it goes out of
scope
59
Dynamic objects

• Create a pointer to the object type - good
  practice to initialize them to NULL
• then use the new operator to return a pointer to
  the newly created object
• object myObjectPtrNULL
• myObjectPtr new object( )

60
Dynamic objects

• int main()
• cout ltlt "beginning of main function." ltlt endl
• creature pDogNULL
• pDog new creature()
• cout ltlt "end of main function." ltlt endl
• return 0
• cin

pDog is declared as a pointer to a creature
object using creature type.
61
Dynamic objects
Note that there is no message from the destructor
- the dynamic object is not automatically
destroyed
62
Dynamic objects
This is your job! You need to manually destroy
the object using the delete command otherwise you
will get a memory leak!
Note that there is no message from the destructor
- the dynamic object is not automatically
destroyed
63
Dynamic objects

• int main()
• cout ltlt "beginning of main function." ltlt endl
• creature pDogNULL
• pDog new creature()
• delete pDog

Manually destroy dynamic object when you have
finished it using the delete command
64
Dynamic objects
Now we are destroying the dynamically generated
object manually - very important!!
65
Dynamic objects

• How do you access the methods of a dynamic
  object?
• Use the -gt operator instead of the dot (.) syntax
• pDog-gtsetYearOfBirth(1966)

66
Summary

• Automatic (local) objects
• destroyed automatically when go out of scope
• visible only within scope
• External (global) objects
• destroyed automatically at end of program
• visible throughout module
• visible throughout other modules in program using
  extern keyword

67
Summary

• static objects
• visible only within scope
• persist throughout program
• Dynamic objects
• get a pointer to the object
• not automatically destroyed
• your job to delete them otherwise you get a
  memory leak

68
Summary

• define NUMDOGS 5
• int main()
• creature myDogsNUMDOGS
• int i
• for (i0iltNUMDOGSi)
• myDogsiNULL
• myDogsinew creature()
• myDogsi-gtsetYearOfBirth(1970i)
• for (i0iltNUMDOGSi)
• cout ltlt "dog number "ltltiltlt" was born in
  "ltltmyDogsi-gtgetYearOfBirth() ltlt endl
• for (i0iltNUMDOGSi)
• delete myDogsi
• return 0

69
Summary
70
Summary

• Automatic/external/static objects
• Have a unique name
• Useful when objects are predictable enough to be
  identified at compile time
• Dynamic objects
• No fixed unique name
• Identified by the memory address which they
  occupy
• For objects that cant be defined at compile
  time their number or identity may vary at run
  time
