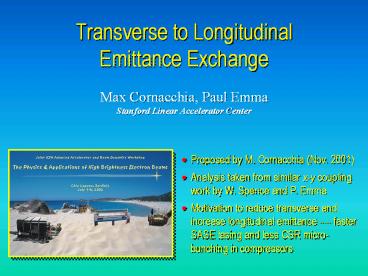

Transverse to Longitudinal Emittance Exchange
Max Cornacchia, Paul Emma Stanford Linear
Accelerator Center

• Proposed by M. Cornacchia (Nov. 2001)

• Analysis taken from similar x-y coupling work by
  W. Spence and P. Emma

• Motivation to reduce transverse and increase
  longitudinal emittance ? faster SASE lasing and
  less CSR micro-bunching in compressors

2
SASE FEL needs very bright electron beam
eN lt 1 mm at 1 Å, 15 GeV
sd lt 0.05 at Ipk 4 kA, K ? 4, lu ? 3 cm,
We need ??x lt 1 ?m , but ??z?? ? ??z
lt 300 ?m
RF gun produces ??x ??z few mm
3
Emittance Exchange Concept
Electric and magnetic fields
?

• Particle at position x in cavity gets
  acceleration DE/E ? d ? kx

• This energy deviation d in chicane causes
  position change Dx -hd

Must include magnetic field and calculate
emittance in both planes
4
Characterize Initial Beam
5
Propagate Beam
R 1
6
Rewrite emittances
some details
7
Introduce Symplectic Condition
8
Final Emittance Relations
equal emittances remain equal (i.e., if ex0 ez0
then ex ez)
9
Introduce Transverse RF
10
Effects of Transverse RF
11
Chicane with RF
12
Full System Transport Matrix
A 0 ? hk 1
13
Final Emittance Relations
14
Numerical Example
get nearly complete emittance exchange
15
Phase Space Before and After Exchanger
16
Normalized Phase Space
17
Final Bunch Length and Energy Spread
hk 1, ax az 0
2nd-order ex growth approximated by 2nd-order
dispersion
use small bx and large h
18
Bunch Compression
200 mm ? 20 mm
19
RF Deflector (cylindrical)
20
Cavity Thick-Lens Effect
By Dt
add chirp to compensate thick-lens
initial chirp
21
Tracking with Thick-Lens and Chirp
same as thin-lens cavity
l 0.4 m
22
Unusual System Characteristics
23
Summary

• System potentially reduces transverse emittance

• Also increases longitudinal emittance, possibly
  damping the CSR instability

• Bunch length is compressed (all in last bend)

• Moves injector challenge to longitudinal emittance

• Must avoid CSR energy spread increase in 1st bends

• Scheme may have other uses not yet considered
