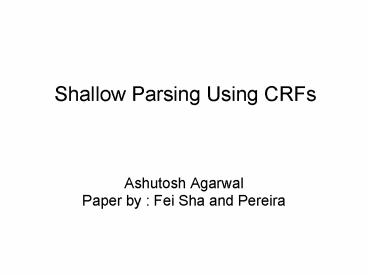

Shallow Parsing Using CRFs

1
Shallow Parsing Using CRFs

• Ashutosh Agarwal
• Paper by Fei Sha and Pereira

2
Shallow Parsing Chunking

• Introduction
• Identifies non-recursive parts of various phrase
  types in text
• e.g., (NP)(Tom Hanks) ran around (NP)(America).
• Tom Hanks and America are the two chunks
  identified
• NP chunking finding out the non-recursive type
  of Nps
• Also called base NPs

3
Previous Approaches

• Machine Learning Approaches
• K-order generative probabilistic models
• e.g., Hidden markov models
• Makes very naive independence assumptions
• Otherwise intractable
• As a sequence of classification tasks
• Classification of lable depends on input data
  prev classified labels of words
• Trained to make best local decision
• Myopic about the effect of current decision on
  later decisions

4
CRF NP Chunker

• Input to chunker POS tagged corpora
• Output Sequence of 'B', 'I', 'O' where
• 'B' represents beginning of chunk
• 'I' represents continuation of chunk
• 'O' represents outside of a chunk
• Hence 'OI' can never occur
• One label for each word in sentence
• e.g. Tom Hanks ran around America.
• Output BIOOB

5
Chunking CRF

• Has second order markov-dependency between chunk
  tags
• i.e., CRFs labels pairs of consecutive tags
• Thus, label at position i is ci-1ci
• And label at i-1 is ci-2ci-1
• And label at 0 is c0
• These constraints can be forced by giving
  appropriate features -infinite weight

6
Chunking CRFs

• We can divide our feature set as
• f(yi-1, yi,x,i)p(x,i)q(yi-1,yi)?
• p(x,i) is the predicate on input sequence x and
  position i
• e.g., word at position i is 'the'
• q(yi-1,yi) is a predicate on pairs of labels
• e.g., POS tags at position i and i-1 are DT,NN,
  etc

7
Features in chunking CRFs

• Since, the number POS tags, labels to be
  generated, etc is finite
• Hence finite number of features
• Millions of features on large training sets
• More features lead to better accuracy
• Might lead to overfitting though

8
Example Feature Set
9
Evaluation Metric

• Precision P
• Fraction of output chunks that exactly match the
  reference chunks
• Recall R
• Fraction of reference chunks returned by chunker
• F score (used for comparing with other systems)?
• F1 score 2 P R/(PR)?

10
Empirical Results
11
Conclusion

• Log-linear parsing models have potential to
  supplant currently dominant PCFG parsing models
• Allows much richer feature set
• Simpler smoothing
• Avoids label-bias problem
• Prevelant in classifier-based parsers

12
References

• Shallow Parsing with Conditional Random Fields,
  Fei Sha and Fernando Pereira, University of
  Pennsylvania
