Title: Inkjet Recycling Cost Analysis


1

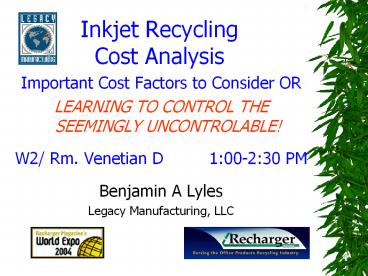

Inkjet Recycling Cost Analysis
  • Important Cost Factors to Consider OR
  • LEARNING TO CONTROL THE SEEMINGLY UNCONTROLABLE!
  • W2/ Rm. Venetian D         100-230 PM
  • Benjamin A Lyles
  • Legacy Manufacturing, LLC

2
Program Outline
  • Quality Report
  • Visual Inspection
  • Circuit Test
  • Performance Sample
  • Cost Analysis

3
QUALITY REPORT
  • All documents within a company must have a
    practical function.
  • Supplier
  • Invoice and packing list information
  • QC tests and tests results
  • Distribution
  • Archiving

4
VISUAL INSPECTION
  • Correct part number
  • - Is it a 23D and not a 41A
  • Correct count (packing list)
  • - Received only 95, not 100
  • Physical damage
  • - Cracks, missing nozzle plates, etc.
  • Packaging procedures
  • - Proper protection for circuits, etc.

5
CIRCUIT TEST
  • General Averages
  • HP45/15 1-2
  • HP26 2-3
  • HP29/20/78/56/57 6-8
  • HP49/23 8-15
  • Lexmark 70/80/16/26 8-12

6
PERFORMANCE SAMPLE
  • How do you REALLY know a component conforms to
    incoming specifications?
  • Randomly pick from different boxes or randomly
    from the same box
  • Sample size is dependent on number size of lot,
    but be practical
  • Have an established criteria for approval or
    rejection gt75 PASS

7
COST ANALYSIS
  • (Core/cost factor)
  • (Material/cost factor)
  • (Labor/cost factor)
  • Overhead Miscellaneous
  • Cost of Sellable Cartridge

8
CORE
  • Example
  • 500 ea. HP45A _at_ 5/ea.
  • Circuit Failure 7 ea. (1.4)
  • Damaged 5 ea. (1)
  • Non-virgin 2 ea. (lt1)
  • Failed print test 45 (9)
  • Core Cost Factor 1 (59/500) 0.882

9
MATERIAL
  • Example
  • 500 14 486 cartridges to recycle
  • Ink Cost Factor 1 (45/486) 0.907
  • Seal Cost Factor 1 (45/486) 0.907
  • Label Cost Factor 1

10
LABOR
  • Example
  • Inspection Labor 500 x 0.10 50
  • Process Labor Cost Factor
  • 1 (45/486) 0.907
  • Packaging Labor Cost Factor 1

11
OVERHEAD MISC.
  • Example
  • Overhead per sellable cartridge
  • 1.25
  • Miscellaneous
  • Shipping costs of cores 100/5000.20

12
TOTALS
  • Example
  • Core 5.00 / 0.882 5.67
  • Ink 0.74 / 0.907 0.82 (7/ 48 grams/cart.)
  • Seal 0.05 / 0.907 0.06
  • Other materials (tape, clip, label, box, etc.)
    0.75
  • Labor
  • 0.10 1.50 / 0.907 0.15 1.90
  • Overhead 1.25
  • Miscellaneous 100/500 0.20
  • Total 5.670.820.060.751.901.250.20
  • 10.65 cost per cartridge

13
COST REDUCTIONS
  • In-house collection 250 _at_ 2 ea.
  • Core (5.00/0.882 2.00/0.95)/2 3.89
  • Ink 0.74 / 0.93 0.80 (7/ 48 grams/cart.)
  • Seal 0.05 / 0.93 0.05
  • Other materials (tape, clip, label, box, etc.)
    0.75
  • Labor
  • 0.10 1.50 / 0.93 0.15 1.86
  • Overhead 1.25
  • Miscellaneous 50/500 0.10
  • Total 3.890.800.050.751.861.250.10
  • 8.70 cost per cartridge

14
CONCLUSION
  • START WITH A PLAN
  • CREATE A SYSTEM FOR DOCUMENTATION
  • CONTROL, CONTROL, CONTROL
  • ANALYZE, ANALYZE, ANALYZE,
  • FIND YOUR FINAL COST
  • REDUCE COSTS AS YOU GO
  • DECIDE IF PSYCHIATRIC HELP IS NEEDED

15
Benjamin LylesVP EngineeringLegacy
Manufacturing 518 17th St. Ste. 1630Denver, CO
80202benlyles_at_legacyllc.com303-446-2919
