New Lightweight Construction Techniques and Firefighter Safety

1

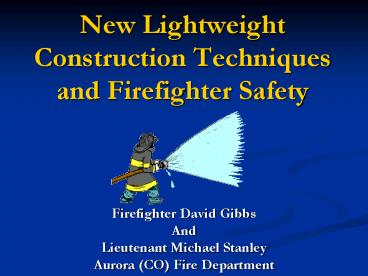

New Lightweight Construction Techniques and
Firefighter Safety

• Firefighter David Gibbs
• And
• Lieutenant Michael Stanley
• Aurora (CO) Fire Department

2
New Townhouse Units Under Construction in Aurora,
Colorado
3
Size-Up

• Three Stories
• Multi-family Dwellings
• Lightweight Construction
• Wood Frame
• Steel
• Fire Sprinklers

4
Unique Construction Features

• Finger-Jointed Trusses
• Double Attics
• Walk Throughs
• Balloon Construction
• Steel Support Beams
• Scabbed Studs

5
Finger-Jointed Trusses
Note the lack of nails in the Gussett
6
Double Attic
This can lead to unseen fire spread into a void
space above our heads!
7
Walk Throughs

• Utilized so workers can move from unit to unit.
• Located in the back corners of each unit.
• Allow wider passage point for Firefighters in the
  event of a wall breach.

8
Balloon Construction
The bearing walls in between units are made of
galvanized steel studs
9
Looking Up

• This causes a common void between the units for
  fire to spread much like any other similar
  structure

10
Non-Platform Construction
Joint does not occur until approximately 30
above floor level
11
Looking Down
Fire can now spread unimpeded between units and
floors in unseen void spaces!
12
Steel Support Beams

• Multiple Lightweight galvanized steel studs
  screwed together.
• Supporting Load Bearing Steel I-Beams.
• Used to transfer load from the roof to the
  foundation.

13
Load Bearing I-Beam

• With 1,000 Degrees of Flame Contact the load
  bearing system of the structure could fail
  causing a catastrophic collapse!

14
Scabbed Studs
15
Cut Stud
Scab
16

• Used to straighten studs to correct for warping
  or bowing.
• Original stud is cut and straightened.
• Scrap of 2 x 4 is scabbed on to hold it
  together.
• This reduces material waste.
• Should only be used on non-bearing interior walls.

17
Be Safe!
