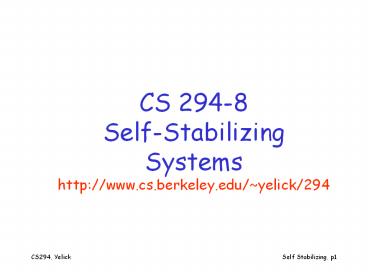

CS 294-8Self-Stabilizing Systems
http//www.cs.berkeley.edu/yelick/294
2
Administrivia
  • No seminar or class Thursday
  • Sign up for project meetings tomorrow, Thursday,
    or Tuesday (?)
  • Poster session Wednesday, 12/13, in the Woz,
    2-5pm
  • Final papers due Friday, 12/15

3
(Self) Stabilization
  • History Idea introduced by Dijkstra in 1973/74.
    Popularized by Lamport in 1983.
  • Idea of stabilization ability of a system to
    converge in finite number of steps from arbitrary
    states to desired state

4
Overview
Concepts Tools
Asynchronous Cut Snapshot
Asynchronous Fault-Tolerant Byzantine Faults Authorization, Xcast
Asynchronous Fault-Tolerant Self-Stabilizing Local Checking, Counter Flushing
5
Stabilization
  • Motivation fault tolerance
  • Especially transient faults
  • Also useful for others (crashes, Byzantine)
  • Where Stabilization ideas appear in physics,
    control theory, mathematical analysis, and
    systems science

6
Stabilization
  • Definition Let P be a state predicate of a
    system S. S is stabilizing to P iff it satisfies
    the following
  • Closure P is closer in S any computation that
    starts in a state in P leads to states that are
    in P
  • Convergence every computation of S has a finite
    prefix such that the following is in P

7
Stabilization (Refined)
8
Practical Issues
  • Stabilizing protocols allow for
  • Corrupted state
  • Initialization errors
  • Not corruption of code
  • Applications
  • Routing, Scheduling, Resource Allocation

9
Dijkstras Model
  • The concurrency model is unrealistic, but useful
    for illustration
  • Processors are organized in a sparse, connected
    graph
  • At each step a processor looks at its own step
    and neighbors, and changes its own state
  • A demon selects the processor to executed
    (fairly)

10
Impossibility of Stabilization
  • If the processors are truly identical
    (symmetric), then stabilization is impossible
  • Consider an N processor system, with N a
    non-prime, say N 2m
  • Consider an initial state that is cyclically
    symmetric, e.g.,
  • s, t, s, t, s, t
  • pis state is s for i even, and t for i odd
  • Then the scheduling demon can schedule all even
    processors (which will all move to s) and then
    all odd (move to t), so no progress will be made

11
Implications of Impossibility
  • How important is this result?
  • Burns and Pachl show that with a prime number of
    processors, self-stabilization with symmetric
    processors is possible
  • More importantly, how realistic is the symmetry
    assumption?

12
Mutual Exclusion on a Line
  • The following simple example is a solution to the
    mutual exclusion problem
  • n processors are connected in a line
  • Each talks to 2 neighbors (1 on the ends)
  • State
  • Each process has 2 variables
  • up token is above if true, below if false
  • x a bit used for token passing

13
Token Passing on a Line
  • Top (Process n-1)
  • x 0 up false
  • x 0 up false
  • x 0 up false
  • x 1 up true
  • x 1 up true
  • .
  • .
  • .
  • x 1 up true
  • Bottom (Process 0)
  • Logical token
  • Token is at one of 2 procs where up differs
  • If xs differ, upper proc, if same, lower proc

14
Token Passing Program
  • Bottom-move-up0
  • If x0 x1 and up1 false then x0
    x0
  • Top-move-downn-1
  • If xn-2 ! xn-1 then xn-1 xn-2
  • Middle-move-upi
  • if xi ! xi-1 then xi xi-1 upi
    true
  • Middle-move-downi
  • if (xi xi1 and upi true and
    upi1true then upi false
  • This is Dijkstras second, 4-state algorithm

15
Token Passing Up
  • Top (Process n-1)
  • x 0 up false
  • x 0 up false
  • x 0 up false
  • x 1 up true
  • x 1 up true
  • .
  • .
  • .
  • x 1 up true
  • Bottom (Process 0)

x 1 up true
if xi ! xi-1 then xi xi-1
upi true
16
Token Passing Down
  • Top (Process n-1)
  • x 0 up false
  • x 1 up true
  • x 1 up true
  • x 1 up true
  • x 1 up true
  • .
  • .
  • .
  • x 1 up true
  • Bottom (Process 0)

x 1
if xn-2 ! xn-1 then xn-1 xn-2
17
Proof Idea for Correct States
  • If the initialization of states is correct
  • One can divide the processor line in two parts
    based on up
  • Two processors, i and i-1 in between
  • All processors above i have same x value as xi
    all below i-1 same as xi-1
  • An action in the program is enabled only when the
    token is held
  • Only 1 action is enabled (and only 1 process
    holds the token at any given time)
  • The above can be checked by examining the
    predicates on the rules

18
Locally Checkable Properties
  • In any good state, the following hold
  • If upi-1 upi, then xi-1xi
  • If upi true then upi-1true
  • These are enough to show that only 1 processor is
    enabled
  • These are locally checkable
  • a local set (pair) of processors can detect an
    incorrect state

19
General Stabilization Technique 1
  • Varghese proposed local checking and correction
    as a general technique
  • Turn local checks into local correction
  • Consider processors as tree (line is special
    case)
  • Consider I-1 to be Is parent
  • For each node I (I ! 0), add Correction action
    check the local predicate between I and its
    parent, correct Is state if necessary
  • Correction affects only child, not parent

20
Practical Issues
  • Dijkstras algorithm works without the explicit
    correction step
  • For more complex protocols, correction is used
  • Although Dijkstras algorithm is
    self-stabilizing, it goes through states where
    mutual exclusion is not guaranteed

21
Token Passing on Ring
  • Processor 0 and n-1 are neighbors
  • Initially, count 0, except for processor 0
    where count 1
  • Zero-move
  • If count0 countn-1
    then count0 count01 mod (n1)
  • Other-move
  • If counti ! counti-1 then counti
    counti-1
  • Note this is Dijkstras first, k-state algorithm

22
Token Ring Execution
  • Good States
  • For I 1n1, either countI-1countI or
    countI-1 countI1
  • Either count0 countn-1 or
    count0 countn-11

x
x-1
x
p0
x-1
x
x-1
x
x-1
x-1
x-1
x-1
x-1
token
23
Proof Idea
  • The following can be shown
  • In any execution, P0 will eventually increment
    its counter (because all other processor decrease
    of counter values)
  • In any execution P0 will eventually reach a
    fresh counter value
  • Any state in which P0 has a fresh counter value m
    is eventually followed by a state in which all
    processes have m

24
General Stabilization Technique 2
  • Varghese proposes counter flushing as a general
    technique for stabilization
  • Starting with some sender (P0) sending to others,
    which messages in rounds
  • Make stabilizing by numbering messages with
    counters (max ctr gt N)
  • Sender must eventually get fresh value

25
Compilers and Stabilization
  • Two useful properties for compilers (according to
    Schneider)
  • Self-stabilizing source code should produce
    self-stabilizing object
  • Compiler should produce a self-stabilizing
    version of our program even if the source code is
    not

26
Compilers Cont
  • Fundamental difference between symmetric and
    asymmetric rings
  • Self-stabilization is unstable across
    architectures
  • There is a class of programs for which a compiler
    can be written to force stabilization

27
Summary
  • Self-stabilizing algorithms
  • Overlooked for 10 years
  • Revived in distributed algorithms community
  • Algorithms for MST, Communication,
  • Relevance to practice
  • Tolerating transient faults is important
  • Do these ideas appear in real systems?
  • See http//www.cs.uiowa.edu/ftp/selfstab/bibliogra
    phy/stabib.html
