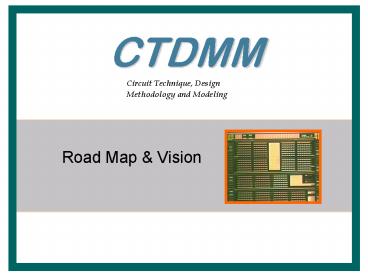

CTDMM Road Map and Vision

1
(No Transcript)
2
Vision Mission

• To excel in circuit technique, design methodology
  and modeling in Analog, RF and Mixed-Signal IC by
  year 2014.
• To employ knowledge and expertise from
  Universities and Industries.

3
Knowledge
4
Application
IEEE wireless
Sensor
Design Tool
Knowledge
Telecommunication IC
Wireline IC
Robust Device Model
5
Projects
In order to acquire the knowledge, below are
projects which will be undertaken.

• Analog, RF and millimeter-wave circuit design
  beyond 45 nm CMOS.
• Multiband RFID Reader IC.
• Visible Light Filter and Photodiode for Optical
  Sensor Application.
• CPW MWMICs.
• Readout IC for Radiation Sensor.
• Development of remotely-control medical equipment
  with reporting features.

6
Project 1-Analog, RF and millimeter-wave circuit
design beyond 45 nm CMOS

• The investigation starts from device-level
  simulation results that are imported into a
  simulation environment for analog circuits to
  evaluate the performance of classical topologies
  of circuits that typically occur in the radio
  front-ends of telecommunication IC.
•

7
Project 2-Multiband RFID Reader IC

• To develop commercial ready Multiband Reader IC (
  Microwave and UHF ) using current state of the
  art technology.

8
Project 3-Visible Light Filter and Photodiode
for Optical Sensor Application

• The use of patterned metal layers as integrating
  light filters offer numerous benefit compare to
  colour filter array. One of them is to reduce
  colour cross talk, this is because it offers
  shorter distance from pixel surface and pixel
  photodiode. The patterned metal layer offer
  robust application such as for high temperature
  usage application.
• The proposed research work is also focusing on
  development of photodiode models, high speed
  operational amplifier and low power data
  converters. This deliverables will ensure the
  outcome of the research can be commercialized in
  the future.
•

9
Project 4-CPW MWMICs

• The develop MWMICS ( gt 30 GHz )
• The proposed research work is also focusing on
  LNA, PA and T/R switch. The investigation on CPW
  structure is the main focus in the research.
•

10
Project 5-Readout IC for Radiation Sensor

• The IC provides preamplifier and shaping
  amplifier functions and its output stage is
  capable of driving conventional Analogue to
  Digital Converter modules.
•

11
Project 6-Development of remotely-control
medical equipment with reporting features

• The development of commercial medical device such
  as blood pressure/heart beat meter which could
  report wirelessly.
•

12
Contact

• Arjuna Marzuki
• Lecturer,
• School of Electrical and Electronic Engineering,
• USM, 14300, Nibong Tebal.
• Tel[phone]
• Email a_marzuki_at_ieee.org, eemarzuki_at_eng.usm.my,
  arjuna_at_cedec.usm.my
• http//tech.groups.yahoo.com/group/CTDMM/
• http//ee.eng.usm.my/eeacad/arjuna/
