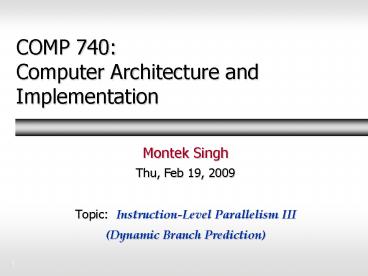

COMP 740: Computer Architecture and Implementation

1
COMP 740Computer Architecture and Implementation

• Montek Singh
• Thu, Feb 19, 2009
• Topic Instruction-Level Parallelism III
• (Dynamic Branch Prediction)

2
Why Do We Need Branch Prediction?

• Basic blocks are short, and we have done about
  all we can do for them with dynamic scheduling
• control dependences now become the bottleneck
• Since branches disrupt sequential flow of instrs
• we need to be able to predict branch behavior to
  avoid stalling the pipeline
• What we must predict
• Branch outcome (Is the branch taken?)
• Branch Target Address (What is the next
  non-sequential PC value?)

3
A General Model of Branch Prediction
Branch predictor accuracy
Branch penalties

• T probability of branch being taken
• p fraction of branches that are predicted
• to be taken
• A accuracy of prediction
• j, k, m, n associated delays (penalties) for
• the four events (n is usually
  0)

Branch penalty of a particular prediction method
4
Theoretical Limits of Branch Prediction

• Best case branches are perfectly predicted (A
  1)
• also assume that n 0
• minimum branch penalty jT
• Let s be the pipeline stage where BTA becomes
  known
• Then j s-1
• See static prediction methods in Lecture 7
• Thus, performance of any branch prediction
  strategy is limited by
• s, the location of the pipeline stage that
  develops BTA
• A, the accuracy of the prediction

5
Review Static Branch Prediction Methods

• Several static prediction strategies
• Predict all branches as NOT TAKEN
• Predict all branches as TAKEN
• Predict all branches with certain opcodes as
  TAKEN, and all others as NOT TAKEN
• Predict all forward branches as NOT TAKEN, and
  all backward branches as TAKEN
• Opcodes have default predictions, which the
  compiler may reverse by setting a bit in the
  instruction

6
Dynamic Branch Prediction

• Premise History of a branch instrs outcome
  matters!
• whether a branch will be taken depends greatly on
  the way previous dynamic instances of the same
  branch were decided
• Dynamic prediction methods
• take advantage of this fact by making their
  predictions dependent on the past behavior of the
  same branch instr
• such methods are called Branch History Table
  (BHT) methods

7
BHT Methods for Branch Prediction
8
A One-Bit Predictor
State 0 Predict Not Taken
State 1 Predict Taken

• Predictor misses twice on typical loop branches
• Once at the end of loop
• Once at the end of the 1st iteration of next
  execution of loop
• The outcome sequence NT-T-NT-T makes it miss all
  the time

9
A Two-Bit Predictor

• A four-state Moore machine
• Predictor misses once on typical loop branches
• hence popular
• Outcome sequence NT-NT-T-T-NT-NT-T-T make it miss
  all the time

10
A Two-Bit Predictor

• A four-state Moore machine
• Predictor misses once on typical loop branches
• hence popular
• Input sequence NT-NT-T-T-NT-NT-T-T make it miss
  all the time

11
Correlating Branch Outcome Predictors

• The history-based branch predictors seen so far
  base their predictions on past history of branch
  that is being predicted
• A completely different idea
• The outcome of a branch may well be predicted
  successfully based on the outcome of the last k
  branches executed
• i.e., the path leading to the branch being
  predicted
• Much-quoted example from SPEC92 benchmark eqntott

if (aa 2) /b1/ aa 0 if (bb 2)
/b2/ bb 0 if (aa ! bb) /b3/
TAKEN(b1) TAKEN(b2) implies NOT-TAKEN(b3)
12
Another Example of Branch Correlation
if (d 0) //b1 d 1 if (d 1) //b2
...

• Assume multiple runs of code fragment
• d alternates between 2 and 0
• How would a 1-bit predictor initialized to state
  0
• behave?

BNEZ R1, L1 ADDI R1, R0, 1 L1 SUBI R3, R1,
1 BNEZ R3, L2 L2
13
A Correlating Branch Predictor

• Think of having a pair of 1-bit predictors p0,
  p1 for each branch, where we choose between
  predictors (and update them) based on outcome of
  most recent branch (i.e., B1 for B2, and B2 for
  B1)
• if most recent br was not taken, use and update
  (if needed) predictor p0
• If most recent br was taken, use and update (if
  needed) predictor p1
• How would such (1,1) correlating predictors
  behave if initialized to 0,0?

14
Organization of (m,n) Correlating Predictor

• Using the results of last m branches
• 2m outcomes
• can be kept in m-bit shift register
• n-bit self-history predictor
• BHT addressed using
• m bits of global history
• select column (particular predictor)
• some lower bits of branch address
• select row (particular branch instr)
• entry holds n previous outcomes
• Aliasing can occur since BHT uses only portion of
  branch instr address
• state in various predictors in single row may
  correspond to different branches at different
  points of time
• m0 is ordinary BHT

15
Improved Dynamic Branch Prediction

• Recall that, even with perfect accuracy of
  prediction, branch penalty of a prediction method
  is (s-1)T
• s is the pipeline stage where BTA is developed
• T is the frequency of taken branches
• Further improvements can be obtained only by
  using a cache storing BTAs, and accessing it
  simultaneously with the I-cache
• Such a cache is called a Branch Target Buffer
  (BTB)
• BHT and BTB can be used together
• Coupled one table holds all the information
• Uncoupled two independent tables

16
Using BTB and BHT Together

• Uncoupled solution
• BTB stores only the BTAs of taken branches
  recently executed
• No separate branch outcome prediction (the
  presence of an entry in BTB can be used as an
  implicit prediction of the branch being TAKEN
  next time)
• Use the BHT in case of a BTB miss
• Coupled solution
• Stores BTAs of all branches recently executed
• Has separate branch outcome prediction for each
  table entry
• Use BHT in case of BTB hit
• Predict NOT TAKEN otherwise

17
Parameters of Real Machines
18
Coupled BTB and BHT
19
Decoupled BTB and BHT
20
Reducing Misprediction Penalties

• Need to recover whenever branch prediction is not
  correct
• Discard all speculatively executed instructions
• Resume execution along alternative path (this is
  the costly step)
• Scenarios where recovery is needed
• Predict taken, branch is taken, BTA wrong (case
  7)
• Predict taken, branch is not taken (cases 4 and
  6)
• Predict not taken, branch is taken (case 3)
• Preparing for recovery involves working on
  alternative parh
• On instruction level
• Two fetch address registers per speculated branch
  (PPC 603 640)
• Two instruction buffers (IBM 360/91, SuperSPARC,
  Pentium)
• On I-cache level
• For PT, also do next-line prefetching
• For PNT, also do target-line prefetching

21
Predicting Dynamic BTAs

• Vast majority of dynamic BTAs come from procedure
  returns (85 for SPEC95)
• Since procedure call-return for the most part
  follows a stack discipline, a specialized return
  address buffer operated as a stack is appropriate
  for high prediction accuracy
• Pushes return address on call
• Pops return address on return
• Depth of RAS should be as large as maximum call
  depth to avoid mispredictions
• 8-16 elements generally sufficient
