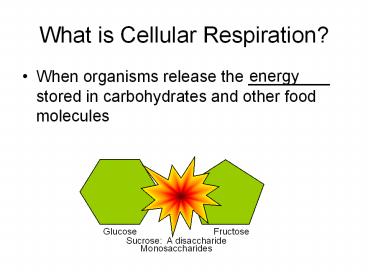

What is Cellular Respiration?

1
What is Cellular Respiration?
energy

• When organisms release the _________ stored in
  carbohydrates and other food molecules

Glucose Fructose Monosaccharides
Sucrose A disaccharide
2
Aerobic Respiration

1. Occurs when Oxygen is present
2. Many ATP Molecules made

3
Anaerobic Respiration

• Occurs when no Oxygen is present
• Very little ATP made
• Two basic types
• Fermentation Alcohol and CO2 produced
• Lactic Acid

4
What did Krebs and Chance Discover in their
Research?

• Enjoy this video clip, and jot down a summary of
  Krebs and Chances research.
• Pay attention to the significance of both
  scientists discoveries.

5
Label the parts of the mitochondrion
Inner membrane
Outer membrane
Inter-membrane space
Cristae
Matrix
6
3 stages of Cellular Respiration

• Glycolysis
• Occurs in the cytoplasm
• No O2 required
• Krebs Cycle
• Occurs in the mitochondrion
• Electron Transport Chain
• Requires O2

7
Glyco lysis literally means sugar
splitting
ATP
ATP
ADP
ADP
P
P
ATP
-2
8
Glycolysis takes place in the cytoplasm
NAD
NADH
P
NAD
NADH
P
NADH
2
9
Glycolysis takes place in the cytoplasm
ATP
ADP
P
ATP
ADP
P
ATP
2
10
Glycolysis takes place in the cytoplasm
ATP
ADP
P
ATP
Pyruvate
ADP
P
ATP
2
11
What is the net gain of energy in Glycolysis?

• ATP 2
• NADH 2

12
The Krebs Cycle takes place in the Matrix of the
Mitochondrion
NAD
NADH
CoA
Acetyl CoA
NAD
NADH
CoA
13
The Krebs Cycle takes place in the Matrix of the
Mitochondrion
CoA
Citrate
14
The Krebs Cycle takes place in the Mitochondrion
NAD
NADH
15
The Krebs Cycle takes place in the Mitochondrion
NAD
NADH
16
The Krebs Cycle takes place in the Mitochondrion
ATP
ADP
P
NADH
NAD
17
The Krebs Cycle takes place in the Mitochondrion
FADH
FADH2
18
What is gained and lost for each pyruvate
molecule?

• What is lost during the Krebs Cycle?
• A Carbon atom must be lost
• It is lost in the form of Carbon Dioxide
• There are 3 CO2 molecules lost

• What is gained during the Krebs Cycle?
• 4 NADH molecules are made.
• 1 FADH2 molecule is made
• 1 ATP molecule is made

19
What is gained per glucose molecule?

• NADH 4
• ATP 1
• FADH2 1

• But there were two molecules of Acetyl CoA (per
  glucose) that went into the Krebs Cycle
• How many would actually be produced in this case?

8
2
2
20
Where is the energy?

• So far, most of the usable energy from the
  original glucose molecule is stored as electrons
  in and
• Where will most of the ATP be made?
• The Electron Transport Chain

FADH2
NADH
21
(No Transcript)
22
Where is the Electron Transport Chain?
Inside the mitochondrion. Folds of the inner
membrane known as cristae.
Many ATP molecules willbe produced in these
Electron Transport Chains
23
How much ATP can each electron carrier make?
ATP
ATP
NADH
ATP
ATP
FADH2
ATP
FADH2
FADH2
24
After electrons travel through the ETC, Oxygen is
the final electron acceptor. Electrons, and two
Hydrogen ions attach to the oxygen, and H2O is
formed.
25
Hydrogen ions pump from the matrix to the inter-
membrane space, using the energy from the
electrons.
26
The diffusion of H ions through the enzyme, ATP
synthase makes ATP
27
C6H12O6
ATP
28
C6H12O6
CO2
H2O
ATP
29
ATP
C6H12O6
CO2
H2O
O2



30
Photosynthesis and Respiration

• With a neighbor, fill in the steps in this cycle
  of Photosynthesis and Respiration.
• We will check your answers when you are done!
