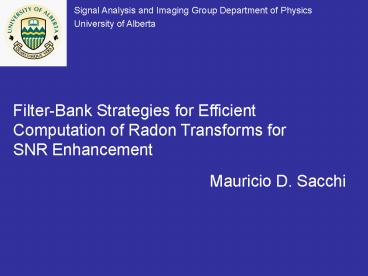

Signal Analysis and Imaging Group Department of
Physics University of Alberta
Filter-Bank Strategies for Efficient Computation
of Radon Transforms for SNR Enhancement

• Mauricio D. Sacchi

2
Outline

• Radon Transforms for Noise Signal modeling
• Filter Banks
• Filter Banks Radon Transforms
• Examples
• Summary

3
Hybrid Radon Transform (Trad, Sacchi, Ulrych,
JSE 2001)
v
p
d
Inverted m Sparse Inversion
4
Hybrid Radon Transform (Trad, Sacchi, Ulrych,
JSE 2001)
Recovered model of hyperbolic events

• Recovered Model of linear events

5
Hybrid Radon Transform (Trad, Sacchi, Ulrych,
JSE 2001)
Linear and Hyperbolic RT
6
Hybrid Radon Transform (Trad, Sacchi, Ulrych,
JSE 2001)
Simultaneous signal and noise focusing
7
Hybrid Radon Transform (Trad, Sacchi, Ulrych,
JSE 2001)
Solution
Model of linear noise
Model of signals with hyperbolic/parabolic moveout
8
Hybrid Radon Transform (Trad, Sacchi, Ulrych,
JSE 2001)
Algorithm CG Preconditioning Updates for
high res.
9
Hybrid Radon Transform (Trad, Sacchi, Ulrych,
JSE 2001)
Algorithm CG Preconditioning Updates for
high res.
10
Filter banks Analysis and Synthesis
s(t)
2
L
L
2
x(t)
x(t)
2
H
H
2
d(t)
x(t)x(t)
11
Cosine Filters
12
Filter Banks 3 Levels Decomposition
13
Analysis Signal Linear Noise
N0512 N1256 N2128
N364
14
Analysis Signal Linear Noise
N0512 N1256 N2128
N364
15
Analysis Signal Linear Noise
16
Proposed Algorithm
IRT Inverse Radon Transform Linear and
Hyperbolic FLRT Forward Linear RT FHRT
Forward Hyperbolic
FHRT
IRT
FLRT
FHRT
IRT
Linear Noise
FLRT
N0512 N1256 N2128
N364
17
Analysis Signal Linear Noise at Level 3
18
Analysis Signal Linear Noise at Level 3
19
Radon Transform at Level 3
20
Synthesis from Radon Transform at Level 3
21
Radon Transform at Level 3
22
Synthesis from Radon Transform at Level 3
23
Summary of results at level 3
24
Synthesis at Level 1 Modeled Noise
25
Final Subtraction at Level 1
26
Field Data Example

• 3 Levels decomposition
• High Resolution Hyperbolic Linear Radon
  Transform
• Hybrid RT (Trad, Sacchi and Ulrych, JSE 2001)
• Sparseness in Radon panels is introduced via
  pre-conditioning

27
Field Example
28
Data at level 3
29
Radon at level 3 - low pass decompostion
30
Data from Radon at level 3
31
Radon at level 3 - high pass decompostion
32
Data from Radon at level 3
33
Linear noise from level 3 back at level 1
34
Final Subtraction
35
Cost

• Improvement for 3 levels decomposition

36
Summary - Discussions

• High Resolution Time Domain Hybrid Radon
  Transforms are expensive to compute
• The use of Radon de-noising methods with Filter
  Banks leads to a simple and efficient strategies
  for linear noise attenuation

37
Summary - Discussions

• We have exploited differences in
• Frequency content
• Moveout signature
• to estimate a model of linear noise that is
• then subtracted from the data
• Important applications Time domain Radon noise
  attenuation of 3D shots and hybrid gathers
  (x-spreads)

38
Acknowledgments

• SAIG Sponsors
• CGGVeritas
• ConocoPhillips
• Encana
• ENI SPA AGIP
• Divesco
• Fugro
• Norsk Hydro
• Statoil
• Faculty of Science, University of Alberta
• Natural Sciences and Engineering Research Council
  of Canada (NSERC)
