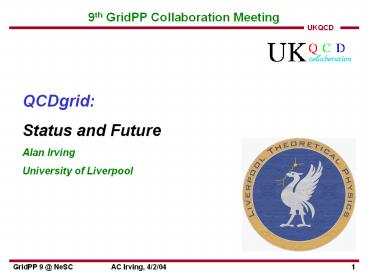

QCDgrid Status and Future Alan Irving University
of Liverpool
2
UKQCD and the Grid QCDgrid architecture

• PPARC support

• GridPP1 Phase 1 data grid ?
• GridPP1 Phase 2 pilot scheme for
• distributed processing ?
• GridPP2 Full distributed processing
• GridPP2 International Lattice Data
• Grid activities (ILDG)

3
QCDOC Columbia IBM UKQCD BNL
10,000 processors 10 Tflops, 6.6M, July 2004
128 procs Nov 03
4
Stop press ....

• Following exhaustive tests of the ASIC, orders
  have now been placed for some 14,720 ASICS for
• 2048 node development machine ( gt 1 Tflop
  sustained) for assembly in March
• 12,000 node main machine, for assembly in May

5
UKQCD computing strategy with QCDOC

• Distributed computing ? Grid
• International standards (ILDG)
• SCIDAC US strategy
• Local resources compute/data
• Tier 1 Edinburgh
• Tier 2 Edinburgh, Liverpool, Swansea,
  Southampton ( RAL)

• UKQCD approved simulations
• International cooperation with MILC,
  Columbia,..
• Data grid for configuration acquisition and
  storage
• International nodes available
• Job submission software (JSS) for homogeneous
  physics analysis within UKQCD
• Need for significant clusters at computational
  nodes, (Liverpool, RAL, ...)

QCDOC
FE
Grid
Node
6
Basics of the QCDgrid datagrid

• Currently has 4 sites with 7 RAID disk nodes
• Main design and implementation by EPCC (James
  Perry)
• Admin by C Maynard (Physics/Edinburgh) local
  sys admins
• User requirement/testing driven by Liverpool (C
  McNeile)
• File replication managed by custom written
  software built on Globus 2
• Central control thread ensures at least 2 copies
  of each file at different sites
• Replica catalogue maps logical names to physical
  locations
• Metadata catalogue associates physical parameters
  with files
• XML document for each data file
• XML document storage in eXist XML database,
  queried by Xpath

7
Operation of the QCDgrid datagrid

• Initial queries via browser GUI
• Production running via command line tools
• Current developments
• Simple interface for data/metadata submission
  under development
• Grid administration tools
• Grid recovery tools including switching of
  control thread
• EDG software for virtual organisation management
  and security.
• Data binding in QCDOC codes

8
QCDgrid metadata browser
9
Pilot version of job submission software

• Globus toolkit
• EDG software for VO management
• and security
• Integrated with datagrid SW
• Pilot running on test grid at EPCC
• Command line job submission
• Job IO can go to user console
• Output files returned automatically
• Soon ...
• Deploy on main grid
• Integrate with batch systems (PBS ..)
• Better user interface (GUI..)
• GridPP2..
• Full system with real analysis code

10
job submission test
alan_at_qcdtest gridwork qcdgrid-job-submit
qcdother.epcc.ed.ac.uk \
/home/alan/gridwork/testrn \ -input
/home/alan/gridwork/in_seed.dat Storing results
in local directory qcdgridjob000002 Storing
results in remote directory /tmp/qcdgridjob000024
RSL(executable/opt/qcdgrid/qcdgrid-job-controll
er) (arguments/tmp/qcdgridjob000024/jobdesc) (e
nvironment(LD_LIBRARY_PATH /opt/globus/lib/opt/q
cdgrid)) Connecting to port 16395... OUTPUT
iter r.n. 0 0.586089 1
0.651327 r.n. seeds written to out_seed.dat
testrn finished Ok! Job has
completed Retrieving jobdesc Retrieving
controller.log Retrieving wrapper.log Retrieving
stdout Retrieving stderr Retrieving
out_seed.dat alan_at_qcdtest gridwork
11
International Lattice Data Grid

• UKQCD launched this in 2002 in Boston
• Participants from USA(Scidac), Japan,
  Germany,..
• Enable data sharing
• Agree standards
• Steering group of national reps ..
• 2 working groups

• Metadata WG
• XML schema
• gauge formats etc

• Middleware WG
• Web service standards
• Storage Resource Manager

Feb 3 CP-PACS (Japan) launch ILDG node at
http//www.lqa.rccp.tsukuba.ac.jp/
12
3-continent file browsing
UKQCD
JLAB
LATT03
13
ILDG file browser
14
QCDgrid and GridPP2

• Extend Job Submission Software, resource
  brokering,..
• XML mark-up within main QCDOC production codes
• Web services implementation of replica and
  metadata catalogues
• Web services ILDG replica and metadata catalogues
• Web services based compute grid using UK and
  non-UK nodes

15
QCDgrid websites

• QCDgrid home page (at GridPP?)
• http//www.gridpp.ac.uk/qcdgrid
• QCDgrid project page at NeSCForge development
  site
• http//qcdgrid.forge.nesc.ac.uk/
• ILDG project page at JLAB, USA
• http//qcdgrid.lqcd.org/ildg

16
CONCLUSIONS

• UKQCD has operational data grid (QCDgrid)
• QCDOC preparations are well advanced
• Tier 2 nodes have been (are being) installed
• Work continues on XML tools
• Prototype job submission SW exists and is being
  developed
• International activity is increasing (
  )
• Open software development via NeSC Forge
