Title: AFLP diversity in


1

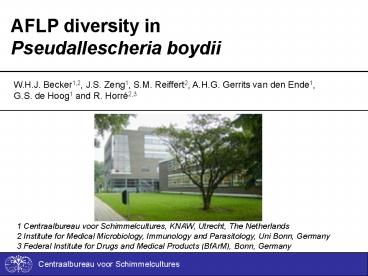

AFLP diversity in Pseudallescheria boydii
W.H.J. Becker1,2, J.S. Zeng1, S.M. Reiffert2,
A.H.G. Gerrits van den Ende1, G.S. de Hoog1 and
R. Horré2,3
1 Centraalbureau voor Schimmelcultures, KNAW,
Utrecht, The Netherlands 2 Institute for Medical
Microbiology, Immunology and Parasitology, Uni
Bonn, Germany 3 Federal Institute for Drugs and
Medical Products (BfArM), Bonn, Germany
2
Methods
  • Strains
  • - Grown 2-4 weeks on MEA (Malt Extract Agar)
  • DNA-extraction
  • Minipestles, silica-mix
  • Purification with chloroform, amylalcohol,
    ammoniumacetate
  • Without phenol
  • Results of optimisation (Data not shown here)
  • - RNA Digestion with RNAse not necessary
  • - Further purifications e.g. with colums not
    necessary
  • modified according Moeller E.M., Bahnweg G,
    Sandermann H, Geiger H.H.
  • A simple and efficient protocol for isolation of
    high molecular weight DNA
  • from filamentous fungi, fruit bodies and infected
    plant tissues
  • Nucleic Acids Research 1992, Vol 20, No. 22, 6115
    - 6116

3
Methods
AFLP The primers of the last selective
PCR-reaction are marked with fluorescent
colours Green Blue Yellow AG Joe AC
6-Fam AT Ned Standard Red ROX Gene
Scan 500 Modified after Vos et al.
AFLP, a new technique for DNA fingerprinting,
Nucleic Acids Research 1995, Vol. 23 4407-4414.
4
Methods

5
Methods

6
Methods
Filter

Data processing ABI Prism 310 Genetic Analyser
7
Method Data Processing

8
Wards averaging
N 58 strains
Pseudallescheria boydii
B1
Cut-off 85 90 (Ward and UPGMA) dependent on
quality of AFLP-pattern
B
B2
A1
A2
A3
A
A4
A5
Scedosporium prolificans
9
UPGMA
Pseudallescheria boydii
B
A2
A3
A1
A
A4
A5
Scedosporium prolificans
10
Wards averaging
Pseudallescheria boydii
B11
B1
B12
B13
B14
B
B21
B2
B22
B23
A
11
How to define groups ?
  • Main groups (A,B)
  • Clusters in Ward
  • UPGMA distance above 50
  • Subgroups (e.g. A4, B22)
  • Groups are recognized in
  • Wards Averaging and UPGMA

12
DNA-DNA-Reassociation
E. Guého, G.S. de Hoog Taxonomy of the medical
species of Pseudallescheria and Scedosporium, J.
Mycol. Méd., 1991, 1 3-9
Pseudallescheria_at_yahoo.de
13
Wards averaging
Wards averaging
Wards averaging
Pseudallescheria boydii
Pseudallescheria boydii
Pseudallescheria boydii
B11
B1
B12
IP 1742.88 CBS 116894, Group 3
B13
B14
B
CBS 108.54 , Group 3
B21
CBS 101.22 , Group 1
B2
B22
B23
A1
CBS 297.38 , Group 2
A2
A3
A
A4
A5
Scedosporium prolificans
14
Results 1 Groups
  • 3 Maingroups in AFLP A, B1, B2

15
Results 1 Groups
  • 3 Maingroups in AFLP A, B1, B2
  • AFLP-Groups confirm the
  • DNA-DNA-Reassociation-Groups

16
Results 1 Groups
  • 3 Maingroups in AFLP A, B1, B2
  • AFLP-Groups confirm the
  • DNA-DNA-Reassociation-Groups
  • More genetic variability in group B1/B2 than in
    group A

17
Results 1 Groups
  • 3 Maingroups in AFLP A, B1, B2
  • AFLP-Groups confirm the
  • DNA-DNA-Reassociation-Groups
  • More genetic variability in group B1/B2 than in
    group A
  • More invasive strains in group A (63 ) than in
    group B (21 )

18
Results 1 Groups
  • 3 Maingroups in AFLP A, B1, B2
  • AFLP-Groups confirm the
  • DNA-DNA-Reassociation-Groups
  • More genetic variability in group B1/B2 than in
    group A
  • More invasive strains in group A (63 ) than in
    group B (21 )
  • All 3 marker strains with growth max at 36C are
    found in group A

19
Conclusions 1 Groups
  • 3 Maingroups in AFLP A, B1, B2
  • AFLP-Groups confirm the
  • DNA-DNA-Reassociation-Groups
  • More genetic variability in group B1/B2 than in
    group A ? restricted sexuality in group A ?
  • More invasive strains in group A (63 ) than in
    group B (21 )
  • All 3 marker strains with growth max at 36C are
    found in group A

20
Wards averaging
Pseudallescheria boydii
B11
B1
B12
B13
B14
B
B21
Clinical Case Near drowing, Patient BAL 2
different (?) strains of the same group (A3), But
in watersample a complete different genotype was
found (B12)
B2
B22
B23
More than one strain in one patient ?
A1
A2
A3
A
A4
A5
Scedosporium prolificans
21
Wards averaging
Pseudallescheria boydii
B11
B1
B12
Two similar strains Both group B11, Both
otomycosis, but one from Canada and one from NL !
B13
B14
B
B21
B2
B22
B23
A1
A2
A3
A
A4
A5
Scedosporium prolificans
22
Wards averaging
Pseudallescheria boydii
B11
B1
B12
B13
B14
B
B21
B2
B13 Similar strains from North America, Africa
and Europe
B22
B23
A3 Similar strains from South America and Europe
A1
A2
A3
A
A4
Worldwide distribution, No local clusters seen so
far.
A5
Scedosporium prolificans
23
Wards averaging
Pseudallescheria boydii
B11
B1
B12
B13
B14
B
B21
B2
B22
B23
A1
Mycetoma strains can be found in group B22 and
A3, A4, A5 but inside this groups the genotypes
are very similar.
A2
A3
A
A4
A5
Scedosporium prolificans
24
Results 2 Strains
  • More than one strain per patient ?

25
Results 2 Strains
  • More than one strain per patient ?
  • Sometimes clustering in clinical pictures
  • (e.g. otitis, mycetom)

26
Results 2 Strains
  • More than one strain per patient ?
  • Sometimes clustering in clinical pictures
  • (e.g. otitis, mycetom)
  • No local clusters seen so far

27
Conclusions 2 Strains
  • More than one strain per patient
  • ? very sufficient mode of infection
  • Sometimes clustering in clinical pictures
  • (e.g. otitis, mycetom)
  • No local clusters seen so far

28
Conclusions 2 Strains
  • More than one strain per patient
  • ? very sufficient mode of infection
  • Sometimes clustering in clinical pictures
  • (e.g. otitis, mycetom)
  • ? similar strains may share the same
  • factors of pathogenicity
  • No local clusters seen so far

29
Conclusions 2 Strains
  • More than one strain per patient
  • ? very sufficient mode of infection
  • Sometimes clustering in clinical pictures
  • (e.g. otitis, mycetom)
  • ? similar strains may share the same
  • factors of pathogenicity
  • No local clusters seen so far
  • ? worldwide distribution of same genotypes

30
Pseudallescheria_at_yahoo.de
