1

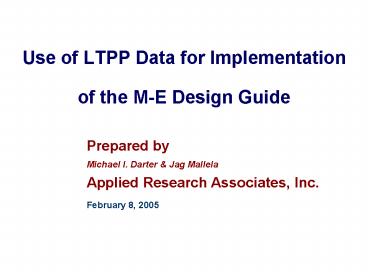

  • Use of LTPP Data for Implementation
  • of the M-E Design Guide

Prepared by Michael I. Darter Jag
Mallela Applied Research Associates, Inc.
February 8, 2005
2
Use of Case Studies
  • Analysis of Case Studies are very effective to
    help highway agencies implement the Design Guide.
  • Shows that its not difficult to use the software.
  • Provides experience in obtaining inputs, running
    the program, and reviewing outputs.
  • Provides assessment of the ability of procedure
    to predict key distresses and smoothness.
  • Helps establish databases (materials, traffic,
    others).

3
Use of LTPP Data in State Implementation
Develop input data libraries Traffic Material
Climate Structure/Perf.
Evaluate the M-E PDG in State Case studies
Local calibration necessary?
  • LTPP Database

Yes
Local calibration of models Distresses,
Smoothness, Reliability
No
Implement the results Manuals
Libraries Software
4
Summary of LTPP Data Sources
5
Summary of LTPP Data Sources
6
Summary of LTPP Data Sources
7
Example of Utah LTPP Sections for M-E PDG
Implementation Efforts
Case 1 49-3011, JPCP
Case 2 49-1008, HMA
8
Case study 1 Performance prediction example of
an LTPP 49-3011 JPCP
  • General information
  • LTPP GPS-3, JPCP
  • On a 4-lane divided Interstate 15
  • Nephi, Utah
  • Constructed in April opened in July 1986
  • Info from
  • LTPP database

9
Case study 1 Level 1 Traffic inputs, with WIM
data for 2 years, each quarter
Volume Inputs
  • Info from
  • LTPP database

10
Case study 1 Level 1 Traffic inputs, with WIM
data for 2 years, each quarter
  • Truck volume info
  • Base year 2-way AADTT 320
  • Growth rate 12 percent (compound)
  • Directional distribution 50 percent
  • Lane distribution 100 percent

Truck growth
  • Data from LTPP database

11
Case study 1 Level 1 Traffic inputs, with WIM
data for 2 years, each quarter
Vehicle class distribution
12
Traffic inputs, Site-specific load
spectra---Single
Single axle
  • Processed using Utah WIM Data

13
Traffic inputs, Site-specific load
spectra---Tandem
Tandem axle
  • Processed using Utah WIM Data

14
Case study 1 Level 1 Traffic inputs, Continued
Hourly distribution
Axle Configuration
15
Traffic inputs, Continued
Axle per vehicle
  • Processed using Utah WIM Data

16
Case study 1 Climatic Data Input
Climatic Inputs
17
Case study 1 JPCP Design Features
  • Design information
  • Permanent curl/warp -13 oF
  • Random joint spacing 12-13-17-18 ft
  • Tied PCC shoulder
  • (long term LTE 40 )
  • LCB base bonded 60 months
  • Base erodibility 2 (very high strength lean
    concrete)
  • Data from LTPP database

18
Case study 1 Pavement Layers
Pavement Structure LTPP TST_L05B table
19
Case study 1 PCC Surface
PCC general thermal materials Properties
LTPP TST_ tables
  • PCC thermal properties
  • CTE 7.810-6 /oF (extremely high value)

20
Case study 1 PCC Surface
PCC mixture LTPP INV_ tables
  • PCC material information
  • Cement content 564 Ib/yd3
  • Water/cement ratio 0.443
  • Coarse aggregate type quartzite

21
Case study 1 PCC Surface
PCC strength modulus
  • Data partially from LTPP database

22
PCC Flexural Strength
1.
2.
3.
MR ST/0.67 ST tensile strength
23
PCC Elastic Modulus
Adjusted to 28-day strength
24
Case study 1 Lean Concrete Base
LCB properties LTPP TST_ tables
25
Case study 1 Subgrade
Subgrade properties LTPP TST_ tables
26
Selection of Subgrade Mr
  • Design Guide requires lab tested Mr at optimum
    moisture (level 2), or default Mr based on AASHTO
    soil class (level 3)
  • Alternative level 2 method for existing pvt
  • Backcalculate k-value using FWD deflection data
    (approach used in calibration)
  • Select corresponding Mr to match backcalculated
    k-value

27
Backcalculated Subgrade k-value
Selected Mr to provide average backcalculated k
value of 238 psi/in Input Mr 15,000 psi (this
would be at optimum moisture)
Mean k-value 238 psi/in
28
Case study 1 M-E PDG Analysis Screen
29
Case study 1 Analysis results Transverse slab
cracking
30
Case study 1 Analysis results Computed
transverse joint LTE
31
Case study 1 Analysis results Joint faulting
32
Backcasting Initial IRI
Initial IRI 77 in/mile
33
Case study 1 Analysis results SmoothnessIRI
Initial IRI 77 in/mile
34
Case Study 2 LTPP 49-1008
  • General information
  • LTPP GPS-1, Conventional HMA
  • On 4-lane divided US-89
  • County Sevier, Utah
  • Constructed in August 1976

35
Case study 2 Pavement Structure
Existing HMAC
9.1 in
4.7-in
Soil/Aggregate (A-1-b)
Semi-infinite
Subgrade (A-4/A-6)
HMA Pavement Structure LTPP TST_L05B Table
36
Case study 2 HMAC Properties
  • HMA Properties
  • Thickness 9.1 in
  • AC grade AC-10
  • Volumetric binder content 11
  • Percent air voids 8.5 percent

37
Case study 2 HMAC Properties
Default Creep Compliance
  • HMA Properties
  • Percent retained on ¾-in sieve 0
  • Percent retained on ?-in sieve 12
  • Percent retained on No. 4 sieve 37.5
  • Percent passing No. 200 9.9

38
Case study 2 Unbound Base Properties
  • Aggregate Base Properties
  • Thickness 4.7 in
  • AASHTO class A-1-a
  • Plasticity index NP (1)
  • Pct passing 4 sieve 56.5
  • Pct passing 200 sieve 12.2
  • D60 12.4-mm

39
Case study 2 Subgrade Properties
  • Subgrade Properties
  • AASHTO class A-4/A-6
  • Plasticity index 10.0
  • Pct passing 4 sieve 91.5
  • Pct passing 200 sieve 61.1
  • D60 0.075-mm

40
Selection of Subgrade Mr
  • Design Guide requires lab tested Mr at optimum
    moisture (level 2) or default Mr based on AASHTO
    soil class (level 3)
  • Alternative level 2 method (existing pvt)
  • Backcalculate subgrade in-situ elastic modulus
    using FWD deflection data
  • Convert to in situ lab Mr
  • Adjust to optimum moisture content Mr

41
Case study 2 Subgrade Insitu Mr (July ER0.35)
42
Case study 2 Simulation of Performance with the
M-E PDG
  • Longitudinal cracking
  • Fatigue (alligator) cracking
  • Rutting
  • Smoothness (IRI)

43
Case study 2 Longitudinal Cracking
44
Case study 2 Fatigue Cracking
45
Case study 2 Rutting
46
Case study 2 Initial IRI
Initial IRI 52 in/mile
47
Case study 2 Smoothness (IRI)
Initial IRI 52 in/mile
48
Better Design through the M-E PDG
49
Comparison of Predicted Measured Rutting
50
Limited Calibration
51
Summary
  • Use of LTPP sections in State and surrounding
    region can be a major help in implementation of
    the new M-E PDG (at all levels testing, design,
    mgt.)
  • Data libraries can be established for State (or
    region) traffic, HMA, PCC, soils, aggregates,
    design features, key distress types, IRI, etc.


52
Summary
3. Run case studies of each LTPP section. a) to
gain experience with software and with inputs.
b) to observe prediction capability over
prediction, under prediction, wide scatter,
etc.?

53
Summary
4. Use results to perform limited calibration to
determine if various defaults could be adjusted
to better predict distress and IRI unbiasedly.
