Kaj Gr

1

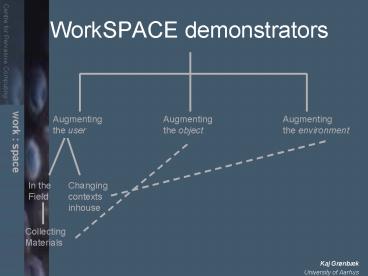

WorkSPACE demonstrators
In the Field
Changing contexts inhouse
CollectingMaterials
2
Augmenting the User Activities

• Studies at TJP
• Generic brainstorm
• beyond landscape architecture
• Series of prototypes

3
Proposed plan - prototypes
UserEval TJP others
Paper for Pervasive computing conf

• v.0.3a
• v0.2
• high res.panel andpen

UserEval TJP

• v.0.3a
• v0.2
• Pocket PC and pen

• v.0.1
• LapTop
• GPS
• Topos
• Data Call
• Shared Camera WS

• v.0.2
• v0.1
• GPRS
• Compass
• GIS integration
• Capture (picture, sound)
• Object tagging

• v.0.3a
• v0.2
• wearable display andinteraction

4
Different Mobile Situations

• On the Move
• on/off line
• low BW
• audio only

• In the office
• on line
• changing contexts
• expensive displays

• Outdoor site
• Inspecting
• capture
• sketch/annotate
• low BW
• GPS location

• Workspace objectives
• Spatial
• location
• visualization
• info. org.
• infrastructure
• physical/digital

• Indoor site
• Inspecting
• capture
• sketch/annotate
• high BW
• tag based location

• Distributed offices
• high BW
• video
• shared intranet space

• At home
• alone
• medium BW
• cheap displays

5
(No Transcript)
6
Mobile Topos
GPS
Walls, tables, PCs
GPRS, 3G, (802.11)
Topos gateway
CollaborationServer
7
Using Topos with a Landscape as background

• Topos world correspond to part of real world
• in some future import of GIS info...
• First experiment
• Katrinebjerg model Web pages and pictures
  belonging to the institutions in the area
• For local demo purposes
• TJP example
• ...

8
Katrinebjerg townscape...
9
Location based support
10
Current prototype
11
Current prototype

• Mobile phone modem
• GPS
• LapTop
• Batteries
• ...

12
Location/Connection
No Location Manual location Rough location Precise location
No Connect
Low Bandwidth
High Bandwidth
13
Interaction
Pen Camera Speech
Inspecting
Annotating
Capturing
Creating
Simulating
Presenting
14
Collaboration modes
Local on-site collaboration Site-remote collaboration
Individual
Small group
Plenary presenation
15
Mobile client options (short term)

• Portable PC Full Topos client, Local Database,
  GPS
• Portable PC Full Topos Client GPS GPRS
  communication to Database
• AAA designed PC Full Topos Client GPS GPRS
  communication to Database
• Pocket PC Pocket Topos GPS GPRS
  communication to Database
• ....

16
Status

• GPS -gt PC
• Done
• Integration of GPS library in Topos
• Done
• GPRS communication too slow problems with
  TeleDanmark gateway
• using data call instead
• Camera support
• not done yet
• Directionality support needed
• the GPS does not supply proper direction
