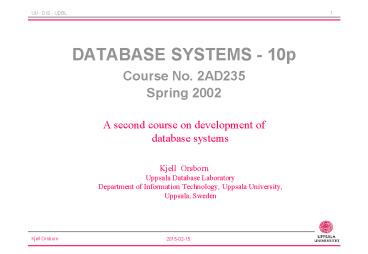

DATABASE SYSTEMS - 10p Course No. 2AD235 Spring 2002

1
DATABASE SYSTEMS - 10pCourse No. 2AD235 Spring
2002

• A second course on development of database
  systems
• Kjell OrsbornUppsala Database
  LaboratoryDepartment of Information Technology,
  Uppsala University, Uppsala, Sweden

2
Introduction to Object-Oriented and
Object-Relational Databases

• Kjell Orsborn Uppsala Database
  Laboratory,Department of Information Technology,
  Uppsala University, Uppsala, Sweden

3
Talk Outline

• Some General DBMS Concepts
• limitations of traditional DBMSs
• History of DBMSs
• Object-Oriented Databases
• Object-Relational Databases
• Differences
• Standards

4
Database Design

• Database Design
• How to translate subset of reality into data
  representations in the database.
• Schema
• A description of properties of data in a database
  (i.e. a meta-database)
• Data Model
• A set of building blocks (data abstractions) to
  represent reality.Each DBMS supports one Data
  Model.The most common one is the Relational Data
  Model where data is represented in
  tables.NOTICE E.g. CAD people use the word
  Data Model instead of Schema
• Conceptual Data Model
• A very high level and user-oriented data model
  (often graphical).CDM not necessarily
  representable in DBMS or computer!Most common
  CDM is Entity-Relationship (ER) data model.But
  also Extended ER models are common
• Conceptual Schema Design
• Produce a DBMS independent Conceptual Schema in
  the Conceptual Data Model

5
Extended Entity-Relationship Diagram
6
Logical Database Design

• Logical Database Design
• How to translate Conceptual Schemas in the
  conceptual data model (e.g. ER-schemas)to a
  Conceptual Schema in the DBMS data model (e.g
  relational tables)
• Logical Database Design for the Relational Data
  Model includes
• Key Identification What attributes are used to
  identify rows in a table?
• Normalization Table decomposition to solve
  update problems, normal forms
• PROBLEM Semantics may disappear or be blurred
  when data is translated to less expressive data
  model and normalized

7
Physical Database Design

• Physical Database Design
• Physical representation of the database schema
  optimized with respect to the access patterns of
  critical applications.
• Indexes
• permit fast matching of records in table
  satisfying certain search conditions.
• The index structures are closely related to the
  internal physical representations of the DBMS.
• Indexes can speed up execution considerably, as
  well as storing data usually accessed together in
  the same table.
• Indexes permit the database to scale, i.e. the
  access times grow much slower than the database
  size.
• PROBLEM New applications may require data and
  index structures that are not supported by the
  DBMS. (e.g. calendars, numerical data,
  geographical data, data exchange formats, etc.)

8
The ANSI/SPARC three-schema Architecture

• Achieves Data Independence

9
Data Independence

• External View
• Mapping Conceptual Schema --gt subset of the
  database for a particular (group of) users.
• Data Independence
• The capability to change the database schema
  without having to change applications.NOTE Data
  Independence is very important since databases
  continuously change!
• Logical Data Independence
• The capability to change conceptual schema
  without having to change applications and
  interfaces to views.E.g. create a new table,
  add a column to a table, or split a table into
  two tables
• Physical Data Independence
• The capability to change the physical schema
  without having to change applications and logical
  schema (E.g. add/drop indexes, change data
  formats, etc.)
• PROBLEM Application programs still often have
  data dependencies, e.g. to map relational
  database tables to application object structures.

10
Database Manipulation

• Query Language
• Originally a QL could only specify more or less
  complex database searches.Now the query language
  (SQL) is a general language for interactions with
  the database.
• Typical query language operations are
• Searching for records fulfilling certain
  selection conditions
• Iterating over entire tables applying update
  operations
• Schema definition and evolution operators
• Object-Oriented Databases have other operations
  such as create and delete objects
• The user directly or indirectly calls SQL in the
  following ways
• By running an interpreter that interactively
  executes SQL commands
• By running an application program that contains
  calls to Embedded SQL
• By running a graphical Database Browser to
  navigate through the database. (The browser
  internally calls embedded SQL)
• PROBLEM Would like to be able to customize and
  extend query language for different application
  areas.

11
Views

• View
• A view is a mapping from the Conceptual Schema to
  a subset of the database as seen by aparticular
  (group of) users.
• SQL is a closed query language that maps tables
  into tables gt SQL allows very general views
  (derived tables) to be defined as single queries
• Views provide
• External schema
• Each user is given a set of views that map to
  relevant parts of the database
• Logical data independence
• When schema is modified views mapping new to old
  schema can be defined
• Encapsulation
• Views hide details of physical table structure
• Authorization
• The DBA can assign different authorization
  privileges to views ofdifferent users
• NOTICE Views provide logical data independence.

12
Evolution of Database Technology
13
New DBMS Applications (for OODBMSs)

• Classical DBMS
• Administrative applications, e.g. Banking (ATMs)
• Properties
• Very large structured data volumes
• Very many small Transactions On-line (High
  transaction rates)
• Occasional batch programs
• High Security/Consistency
• New Needs for Engineering, Scientific databases,
  etc.
• Extensibility (on all levels)
• Better performance
• Expressability (e.g. Object-Orientation needed)
• Tight PL Interfaces
• Long transactions (work in sand box)

14
New DBMS Applications (cont. ...)

• Problem areas
• CASE Computer Aided Software Engineering
• CAD Computer Aided Design
• CAM Computer Aided Manufacturing
• OIS Office Information Systems
• Multi-media databases
• Scientific Applications
• Hypertext databases (WWW)

15
Object-Oriented Databases

• Problems with using RDBMSs for OO applications
• Complex mapping from OO conceptual model to
  relations
• Complex mapping gt complex programs and queries
• Complex programs gt maintenance problems
• Complex programs gt reliability problems
• Complex queries gt database query optimizer may
  be very slow
• Application vulnerable to schema changes
• Performance

16
Object-Oriented Databases

• First generation ODBs
• Extend OO programming language with DBMS
  primitives
• E.g. C, SmallTalk, Java
• Allow persistent data structures in C programs
• Navigate through database using C primitives
  (as CODASYL)
• An object store for C, SmallTalk, Java, etc.
• Several products out, e.g.
• Objectivity, Versant, ObjectStore, Gemstone, Poet
  , PJama, O2

17
Object-Oriented Databases

• Pros and consLong transactions with
  checkin/checkout model (sand box)Always same
  language (C)High efficiency (but only for
  checked-out data)- Primitive query languages
  (now OQL standard proposed)- No methods in
  database (all code executes in client, no stored
    procedures)- Rudimentary data independence (no
  views)- Limited concurrency- Unsafe, database
  may crash- Slow for many small transactions
  (e.g. ATM applications)- May require extensive
  C or Java knowledge

18
Object-Oriented Databases

• Persistence
• Integrated with programming language
• E.g. C with persistent objectsclass PERSON
  ... ....PERSON P // Local within block...
  static PERSON p // Local for
  executionpersistent PERSON p // Exists between
  program executions
• Pointer swizzling
• Automatic conversion from disk addresses to MM
  addresses
• References to data structures on disk (OIDs) look
  like regular C pointers!
• Navigational access style.
• Fast when database cached in main-memory of
  client!
• Preprocessed by OODBMS for convenient extension
  of C

19
Object-Relational Databases

• Object-Relational DBMSs
• Idea
• Extend on RDBMS functionality
• Customized (abstract) data types
• Customized index structures
• Customized query optimizers
• Use declarative query languages, SQL extension
  (SQL99)
• Extensible DBMS
• Object-orientation for abstract data types
• Data blades (data cartridges, data extenders) are
  database server plug-ins that provide
• User definable index structures
• Cost hints and re-write rules for the query
  optimizer

20
Object-Relational Databases

• Pros and consMigration path to SQLViews,
  logical data independence possibleProgramming
  language independenceFull DBMS
  functionalityStored procedures, triggers,
  constraintsHigh transaction performance by
  avoiding data shippingEasy to use declarative
  queries- Overkill for application needing just a
  C object store- Performance may suffer
  compared to OODBs for applications needing   just
  an object store- May be very difficult to extend
  index structures and query optimizers
• Research prototypes Iris (HP), Postgres
  (Berkeley), Starburst (IBM)
• Products Informix, OpenODB (Odapter), DB2NOTE
  On-going evolution of 1st gen. products to become
  more Object-Relational

21
Object-Oriented Databases

• Literature
• M.Stonebraker Object-relational DBMSs - The next
  great wave, Morgan-Kaufmann 1996
• Object-Oriented Manifestos
• First generation ODB Manifesto State-of-the-art
  OODBs anno 1990
• Atkinsson et al The OO Database System Manifesto
  in W.Kim, J-M. Nicolas, S.Nishio (eds) 1st Intl.
  Conf. on Deductive and OO DatabasesEarly O2
• Object-relational DB Manifesto Requirements for
  next generation DBMSs anno 1990
• Stonebraker et. al. Third-generation Data Base
  System ManifestoSIGMOD Record, Vol. 20, No. 4,
  Dec.1991.

22
Object-Oriented Databases

• The Manifestos
• Object identity
• E.g. for structure sharingUnique OIDs
  maintained by DBMSE.g. Parent(tore) ulla,
  Parent(kalle)ulla
• Complex objects
• Not only tables, numbers, strings but sets,
  bags, lists, and arrays, i.e. non-1NF relations
• E.g. Courses(tore) c1,c2,c3
• Encapsulation
• SimplicityModularitySecurity

23
Object-Oriented Databases (manifesto cont. ...)

• Extensibility
• User-defined data types and operations on these
  new datatypes
• e.g. datatypes create type Person, create type
  Timepoint
• e.g. operations. name(tore), t2 - t1, t2 gt
  t1, etc.
• Both OO and OR allow abstract datatypes through
  object-orientation
• Extensions of physical representations (including
  indexes) and corresponding operations
• OO/OR databases allow extensions of physical
  representations
• OR databases allow definition of new indexes
• Extensions of query processor with optimization
  algorithms and cost models
• OR databases allow extensions of query
  processing
• Class Hierarchies as modelling tool (both OO/OR)
• Classification
• e.g. Student subtype of Person
• Shared properties
• Specialization
• Student subtype of Person with extra attributes
  University, Classes,

24
Object-Oriented Databases (manifesto cont. ...)

• Computational completeness
• OR databases Turing complete query language
  SQL99 code executes on server
• OO databases C/Java code with embedded OQL
  statements executes in client (web server)
• Persistence
• OO databases transparent access to persistent
  object by swizzling
• OR databases embedded queries to access
  persistent objects
• Secondary storage management
• OR databases indexes can be implemented by user
  (difficult!)
• Concurrency
• OO databases good support for long transactions
• OR database good support for short transactions
• Ad hoc query facility
• OO Databases weak
• OR Databases very strong

25
Object-Oriented Databases (manifesto cont. ...)

• Data independence
• OO Databases weak
• OR Databases strong
• Views
• Important for data independence
• Query language required
• Only in OR databases!
• Schema evolution
• Relational DBs have it!
• Fully supported in OR databases, primitive in OO
  databases

26
Object Database Standards

• Object-Oriented DBMS Standard
• The ODMG standard proposal
• R. Cattell, Ed. The ODMG-93 Standard for Object
  Databases, Morgan-Kaufmann Publishers, San Mateo,
  California, 1993.
• Includes an Object Data Model
• Object Query Language OQL (different model than
  SQL99)
• Object-Relational DBMS Standards
• The SQL99 (SQL3) standard proposal
• ISO-Final Draft International Standard (FDIS)
  ISO/IEC FDIS 9075-2 Database Language SQL
• Very large (gt1000 pages)
• SQL-92 is subset
• Much more than object-orientation included
• Triggers, procedural language, OO, error
  handling, etc.
• Certain parts, e.g. standards for procedures,
  error handling, triggers, already being included
  in the new SQL-99 standard.

27
Data Exchange Formats

• Purpose
• Standardized formats for sending data between
  systems
• examples STEP/EXPRESS, PDF, HTML, XML, VRML,
  MIDI, MP3, etc.
• Engineering domain standard STEP (standard for
  exchange of product data)
• STEP is an industry wide ISO standard for
  exchange of mainly engineering (CAx etc.) data
• separates meta-data (schema) and data as for
  databases
• EXPRESS is data model in database terms i.e. it
  is the language in which to define the schema.
• STEP models are standardized schemas for
  different engineering application areas, e.g.
  AP209
• The exchanged data follows specialized STEP
  schemas, e.g. PART 21 most common (XML based
  too, PART 29)
• CAx vendors normally not able to handle EXPRESS
  schemas
• Only PART 29 files following a specific schema,
  e.g. AP 209

28
Data Exchange Formats

• The STEP/EXPRESS and database community sometimes
  use the same terminology with different meanings
• Data model
• database world schema language (i.e. EXPRESS is
  a data model)
• STEP/EXPRESS world here a particular schema
  definition written in EXPRESS
• We therefore avoid the word data model to
  minimize confusion
• Multi-level schema architecture
• database world external - conceptual - internal
  schemas
• STEP/EXPRESS world
• Application protocol, AP (c.f. external schema)
• Integrated resources, IR (c.f. conceptual schema)

29
Data Exchange Formats

• The XML language
• Extension of HTML to be able to define own tags
  in web documents,
• for exampleltpolygongtltlinegtltstartgt1.2
  1.3lt/startgtlt/endgt2.1 3.4lt/endgtlt/linegtltlinegtltsta
  rtgt2.1 3.4lt/startgtlt/endgt4.6 4.2lt/endgtlt/linegtlt/p
  olygongt
• Can also define DTD which is grammar for allowed
  tags in the documents referencing it
• DTDs are more or less well specified schemas
• On-going work to define real schema language for
  XML SMLSchema
• XML not object-oriented - only nested structures

30
Introduction to AMOS II and AMOSQL

• Kjell Orsborn
• Uppsala Database Laboratory,Department of
  Information Technology, Uppsala University,
  Uppsala, Sweden

31
Iris/OpenODB/Odapter/AMOS II Object-Relational
DBMS

• IRIS
• 1st Object-Relational DBMS Iris research
  prototype developed in Database Technology
  Department of HP Laboratories
• Iris query language OSQL is a functional query
  language
• OpenODB/Odapter is the HP product based on Iris
• AMOS II
• AMOS II developed at UDBL but has its roots in
  Iris
• AMOS II runs on PCs under Windows NT/2000 and
  Solaris
• AMOS II uses query language AMOSQL
• AMOS II system is a fast main-memory DBMS
• AMOS II has single user or optional client-server
  configuration
• The object part of SQL99 is close to AMOSQL
• Mediator facilities AMOS II is also a
  multi-database (mediator) system for integrationg
  data from other databases

32
AMOS II / Iris Data Model

• Basic elements in the AMOS II data model

33
AMOS II Data Model

• Objects
• Atomic entities (no attributes)
• Belong to one or more types where one type is the
  most specific type
• Regard database as set of objects
• Built-in atomic types, literals
• String, Integer, Real, Boolean
• Collection types
• Bag, Vector
• Surrogate types
• objects have unique object identifiers (OIDs)
• explicit creation and deletion
• DBMS manages OIDs
• AMOSQL example
• create person instances tore

34
AMOS II Data Model

• Types
• Classification of objects
• groups of OIDs belong to different types
• Multiple inheritance supported
• Organized in a type/subtype Directed Acyclic
  Graph
• defines that OIDs of one type is a subset of OIDs
  of other types
• Types and functions are objects too
• of types type and function
• Part of the AMOS II type hierarchy

35
AMOS II Data Model

• Types continued
• Every object is an instance of at least one type
• A type set is associated with each OID
• Each OID has one most specific type
• Each surrogate type has an extent which is the
  set of objects having that type in its type set.
• System understands subtype/supertype
  relationships
• Objects of user-defined types are instances of
  type Type and subtypes of UserObject
• User defined objects always contains class
  UserObject in its type set
• Object types may change dynamically (roles)

36
AMOS II Data Model

• Functions
• Define semantics of objects
• properties of objects
• relationships among objects
• views on objects
• stored procedures for objects
• Functions are instances of type Function
• More than one argument allowed
• Bag valued results allowed, e.g. Parents
• Multiple valued results allowed
• Sets of multiple tuple valued results most general

37
AMOS II Data Model

• A function has two parts
• 1) signature
• name and types or arguments and results
• examples
• name(person p) -gt charstring nname(department
  d) -gt charstring ndept(employee e) -gt department
  dplus(number x, number y) -gtnumber
  rchildren(person m, person f) -gt bag of person
  cmarriages(person p) -gt bag of ltPerson s,
  Integer yeargt
• 2) implementation
• specifies how to compute outputs from valid
  inputs
• non-procedural specifications, except for stored
  procedures
• A function also contains an extent, i.e. a set of
  mappings from argument(s) to result(s)
• for examplename(tore) Torename(d1)
  Toysdept(tore) d1plus(1,2) 3 or (12
  3) Indefinite extent!children(tore,ulla)
  karl,oskarmarriages(tore) lteva,
  1971gt,ltulla,1981gt

38
AMOS II Data Model

• AMOSQL has four kinds of functions
• 1) stored functions (c.f. relational tables,
  object attributes)
• values stored explicitly in database
• 2) derived functions (c.f. relational views,
  object methods)
• defined in terms of queries and other functions
  using AMOSQL
• compiled and optimized by Amos when defined for
  later use
• 3) database procedures (c.f. stored procedures,
  object methods)
• for procedural computations over the database
• 4) foreign functions (c.f. object methods)
• escape to programming language (Java, C, or Lisp)
  e.g. for foreign database access
• Functions can also be overloaded
• overloaded functions have several different
  definition depending on the types of their
  arguments and results.

39
AMOSQL language - schema definition and
manipulation

• Creating types
• create type Person
• create type Student under Person
• create type Instructor under Person
• create type TAssistant under Student, Instructor

40
AMOSQL language - schema manipulation

• Delete a type
• delete type Person
• referential integrity maintained
• types Person, Student, Instructor and TAssistent
  also deleted
• Create functions
• create function name (Person p) -gt Charstring nm
  as stored
• create function name (Course) -gt Charstring as
  stored
• create function teaches(Instructor) -gt bag of
  Course as stored
• create function enrolled(Student) -gt bag of
  Course as stored
• create function instructors(Course c) -gt
  Instructor i as select i where teaches(i) c
• The instructors function is the inverse of teaches

41
AMOSQL language - schema manipulation

• Delete functions
• delete function teaches
• referential integrity maintained.
• e.g. function instructors also deleted
• Defining type and attributes
• create type Person properties(name
  Charstring,birthyear Integer,hobby Charstring)
• name, birthyear, hobby are defined together with
  type Person
• Above equivalent to
• create type Personcreate function name(Person)
  -gt Charstring as storedcreate function
  birthyear(Person) -gt Integer as storedcreate
  function hobby(Person) -gt Charstring as stored

42
AMOSQL language - schema manipulation

• Example of inherited properties
• create type Person properties (name Charstring
  key, age Integer, spouse Person)
• create type Employee under Person properties
  (dept Department)
• Employee will have functions (attributes) name,
  age, spouse, dept
• Can easily extend with new functions
• create function phone(Person) -gt Charstring as
  stored

43
AMOSQL language - schema manipulation

• Modeling relationships with cardinality
  constraints
• create function enrolled(Student e nonkey) -gt
  Course c nonkey as stored
• create function teaches(Instructor i key) -gt
  Course c nonkey as stored
• Modeling properties of relationships by
  multi-argument stored functions
• create function score(Student,Course) -gt Integer
  s as stored
• Modeling properties of relationships by
  multi-argument derived functions
• create function instructors(Student s, Course c)
  -gt Teacher t asselect t where teaches(t) c and
  enrolled(s) c

44
AMOSQL language - data definition and manipulation

• Instance creation
• create Person(name, birthyear) instancesrisch
  (T.J.M. Risch, 1949),ketabchi (M.A.
  Ketabchi, 1950)
• equivalent formulationcreate Person instances
  ketabchi, rischset name(risch) T.J.M.
  Rischset birthyear(risch) 1949set
  name(ketabchi) M.A. Ketabchiset
  birthyear(ketabchi)1950
• Instance deletion
• delete rischdelete ketabchi

45
AMOSQL language - data manipulation

• Calling functions
• name(risch)T.J.M. Risch
• equivalent formulationselect name(risch)T.J.
  M. Risch
• Adding elements to bag-valued functions
• add hobbies(risch) Paintingadd
  hobbies(risch) Fishingadd hobbies(risch)
  Sailinghobbies(risch)PaintingFishing
  Sailing

46
AMOSQL language - data definition and manipulation

• Removing elements from set-valued functions
• remove hobbies(risch) Fishinghobbies(risch
  )PaintingSailing
• Adding type to object
• add type Teacher to rischset teaches(risch)
  math
• Removing type from object
• remove type Teacher from rischteaches(risch)
  Error Function teaches not defined for object
• This will also implicitly doremove
  teaches(risch) mathGood for database
  evolution.

47
AMOSQL queries

• AMOSQL power relationally complete and more
• General format
• select ltexpressionsgtfrom ltvariable
  declarationsgtwhere ltpredicategt
• Example
• select name(p), birthyear(p) from Person p
• Function composition simplifies queries that
  traverse function graph (Daplex semantics)
• name(parents(friends(risch)))
• More SQLish
• select nfrom Charstring n, Person par, Person
  frwhere n name(par) and par parents(fr)
  and fr friends(risch)
• Works also for bag-valued arithmetic functions
• sqrt(sqrt(16.0))2.0-2.0

48
AMOSQL examples

• Examples of functions and ad hoc queries
• create function income(Person) -gt Integer as
  storedcreate function taxes(Person) -gt Integer
  as storedcreate function parents(Person) -gt bag
  of Person as storedcreate function
  netincome(Person p) -gt Integer as select
  income(p)-taxes(p)create function
  sparents(Person c) -gt Student as select
  parents(c) / Parent if parent is student bag
  of implicit for derived functions /create
  function grandsparentsnetincomes(Person c) -gt
  Integer as select netincome(sparents(parents(c))
  )select name(c)from Person cwhere
  grandsparentsnetincomes(c) gt 100000 and income(c)
  lt10000

49
AMOSQL aggregation functions

• An aggregation function is a function that
  coerces some value to a single unit, a bag,
  before it is called.
• bagged arguments are not distributed as for
  other AMOSQL functions (no Daplex semantics for
  aggregation functions)
• count(parents(friends(risch)))5
• Signature
• create function count(bag of Object) -gt Integer
  as foreign ...
• Nested queries, local bags
• sum(select income(p) from Person p)

50
AMOSQL quantification

• Quantifiers
• Existential and universal quantification over
  subqueries supported through two aggregation
  operators
• create function notany(bag of object) -gt boolean
• create function some(bag of object) -gt boolean
• some tests if there exists some element in the
  bag
• notany tests if there does not exist some
  element in the bag
• Example
• create function maxincome(Dept d) -gt Integer as
  select income(p)from Employee pwhere dept(p)
  d and notany(select true from Employee q where
  income(q) gt income(p))

51
AMOSQL advanced updates

• Set-oriented updates
• Setting multiple function instances
• set salary(e) sfrom Employee e, Integer
  swhere ssalary(manager(e))
• Removing values from set-valued functions
• remove friends(risch) ffrom Person fwhere
  age(f) gt age(risch)
• remove friends(risch) p from Person pwhere
  count(friends(p))gt5

52
AMOSQL stored procedures

• Database Procedures
• For example to encapsulate database updates
• create function creperson(charstring nm, integer
  inc) -gt person p asbegin create person
  instances p set name(p) nm set income(p)
  inc result pend
• Optimized iterative update
• create function RemoveOldFriends(Person p) -gt
  boolean asbegin remove friends(p) s from
  Person s where age(s) gt age(p) endRemoveOldF
  riends(risch)

53
AMOSQL sequences

• Vectors (ordered sequences of objects)
• The datatype vector stores ordered sequences of
  objects of any type
• Vector declarations can be parameterized by
  declaring the typeVector of lttypegt as for
  example
• create type Segment properties(start Vector of
  Real, stop Vector of Real)
• create type Polygon properties(segments Vector
  of Segment)
• Vector values have system provided constructors
• create Segment instances s1, S2set
  start(s1)Vector of Real(1.1, 2.3)set
  stop(s1)Vector of Real(2.3, 4.6)set
  start(s2)Vector of Real(2.8, 5.3)
• create Polygon instances p1set
  segments(p1)Vector of Segment(s1, s2)

54
AMOSQL sequences

• Extended ER notation
• Vector types can be used as any other type
• E.g. functions on sequences can be defined
• create function square(Number r)-gtNumber as
  select r r
• create function positive(Number r)-gtNumber as
  select r where rgt0
• create function length(Segment l) -gt realas
  select positive(sqrt(square(start(l)0 -
  stop(l)0) square(start(l)1 - stop(l)1)))
• create function length(Polygon p) -gt realas
  select sum(select length(segments(p)i) from
  Integer i)
• Vector queries
• length(s1)
• length(p1)
• select s from Segment s where length(s) gt 1.34

55
AMOSQL schema queries

• System data can be queried as any other database
  data as for example
• Find the names of the supertypes of EMPLOYEE
• name(supertypes(typenamed(EMPLOYEE)))PERSON
• Find the resolvents of an overloaded function
• name(resolvents(functionnamed(AGE)))DEPARTMEN
  T.AGE-gtINTEGERPERSON.AGE-gtINTEGER
• Find the types of the first argument of each
  resolvent of a function
• name(resolventtype(functionnamed(AGE)))DEPART
  MENTPERSON
• Find all functions whose single argument have
  type PERSON
• attributes(typenamed(PERSON))NAMEAGE

56
How to run AMOS II

• Install system on your PC by downloading it from
• http//www.csd.uu.se/udbl/amos/
• Run AMOS II with
• amos2
• Users guide in
• http//www.csd.uu.se/udbl/amos/doc/amos_users_gui
  de.html
• Simple AMOS II tutorial in
• http//www.csd.uu.se/udbl/amos/doc/tut.pdf

57
(AM)OSQL in Iris/OpenODB/AMOS II

• Summary
• (AM)OSQL provides flexible OR DBMS capabilities
• Not hard wired object model, but dynamically
  extensible model
• Extended subset of object part of SQL99
• Very good support for ad hoc queries
• Good schema modification operations
• Object views
• The key is the functional model of (AM)OSQL
