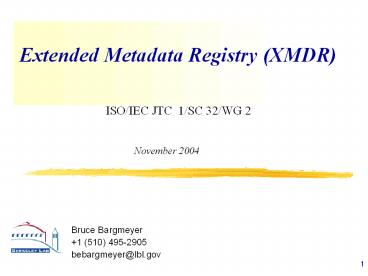

Extended Metadata Registry (XMDR)

1
Extended Metadata Registry (XMDR)
ISO/IEC JTC 1/SC 32/WG 2

• November 2004

Bruce Bargmeyer 1 [phone] bebargmeyer_at_lbl.
gov
2
Topics

• XMDR project direction
• What, when, who, how
• XMDR relationship to WG 2 projects
• A view of semantics based computing
• Some specific semantics challenges
• Some technology choices
• A preview of issues to be raised for Parts 2 and
  3
• Frank Olken will describe some of the content and
  ontology issues and approaches

3
XMDR Project Direction

• Extend the capabilities of 11179 metadata
  registries to register complex metadata
  structures (concept structures, terminologies)
• Ontologies, Graphs, Taxonomies, Thesauri,
• This presentation will use the term concept
  structures as synonymous with complex metadata
  structures
• Extend the capabilities of 11179 metadata
  registries to record correlations and
  interrelations between data (e.g., data elements
  domains) and other concept structures.
• Extend the capabilities of 11179 metadata
  registries to record correlations and
  interrelations between the various concept
  structures themselves.

4
XMDR SC 32/WG 2

• Propose draft text for 11179 Part 2, Version 3
• Preview November 2004 WG 2 meeting
• Proposals April 2005 WG 2 meeting
• Propose issues for 11179 Part 3, Version 3
• Test demo extended 11179 capabilities in a
  reference implementation
• Tests demo starting March 2005
• Register concept structures nominated by
  participants

5
XMDR Project Direction

• Part of an Interagency/International Cooperation
  on Ecoinformatics
• Sponsors participants EPA, EEA, USGS, DOD,
  NCI, Mayo Clinic
• Extend semantics management capabilities for
  ISO/IEC 11179
• Produce design for next generation of operational
  ISO/IEC 11179 registries
• Test demo extended 11179 capabilities in a
  reference implementation
• Research, develop, evaluate, adapt, extend, and
  demonstrate techniques and technologies for
  semantics based computing
• Facilitate early adoption of these technologies
• Establish best practices for semantic web and
  semantic based computing

Forging Semantics Based Computing
6
Project Direction - Ecoinformatics

• Information science and information technology
  for the environment
• Sound information as the basis for environmental
  policy, decisions, and action
• Information technology that supports and enables
  development of sound information
• Facilitate interaction with environmental
  information
• Human - Computer
• Computer - Computer

7
People Involved

• XMDR Project at LBNL (Ecoinformatics )
• LBNL Bruce Bargmeyer, Frank Olken, Kevin Keck,
  John McCarthy (ret. consulting)
• DOD Nancy Lawler Sam Chance
• EPA Larry Fitzwater, Howard Tsai, Linda Spencer,
  William Sonntag
• USGS Gail Hodge (IIA, for USGS) (Lisa Zolly,
  USGS, is joining L8)
• Mayo Clinic Harold Solbrig
• NCI Sherri De Coronado, Denise Warzel
• SC 32/WG 2, INCITS-L8
• Ashton Computing Management Judith Newton
• Farance Inc. (consulting)

8
XMDR Liaison Activities

• OMG Ontology Development Metamodel (ODM)
• W3C Semantic Web Best Practices and Deployment
  Working Group
• Ecoterm
• EU Joint Research Center (EDEN-IW)
• National Science Foundation (Ecoinformatics)
• Interagency/International Cooperation on
  Ecoinformatics

9
Project Direction

• What the project is not
• An attempt to make 11179 metadata registries be a
  development and maintenance facility for every
  type of concept structure
• An attempt to standardize the complete range of
  terminology servers

10
XMDR Relationship to WG 2 Projects - Introduction
Real World
Metamodel constructs CDIF Core, MOF, XML-Schema,
RDFS, ODM, OWL, Common Logic (CL)
Modeling Tools
Methodologies/tools EDR, NIAM, O-O, RDF, UML,
Ontology
Model Artifacts and Exchange
CDIF, (UML MDL, XMI), OWL, CL SCL (KIF)
Applications
SQL (relational), Object, Semantic Web (might be
agent based, grids, etc.
11
11179 Semantics Management
12
MDR Keeping Track of the Real World
Present
ANSI Industry Govt
CZ Czech Republic LO Slovakia
ISO
CZ Czechoslovakia
Country changes
Past
Country
13
SC 32 Standards Projects
WG2 - 20943
WG 2 11179
Metamodel constructs CDIF Core, MOF, XML-Schema,
RDFS, ODM, OWL, CL WG 2 - MMF (19763), CL
(24707) MOF PAS submission
Methodologies EDR, NIAM, O-O, RDF, UML, Ontology
CDIF, (UML- MDL, XMI), OWL, CL SCL (KIF)
WG 2 - MMF (19763), CL (24707) XMI PAS
submission
WG 2 - 20944
SQL, Object, RDF, Semantic Web WG 3 - SQL
14
XMDR Focus
XMDR project
WG2 - 20943
WG 2 11179 Parts 2 3
Metamodel constructs CDIF Core, MOF, XML-Schema,
RDFS, ODM, OWL, CL WG 2 - MMF (19763), CL
(24707) MOF PAS submission
Methodologies EDR, NIAM, O-O, RDF, UML, Ontology
CDIF, (UML- MDL, XMI), OWL, CL SCL (KIF)
WG 2 - MMF (19763), CL (24707) XMI PAS
submission
WG 2 - 20944
XMDR project
XMDR project
SQL, Object, RDF, Semantic Web WG 3 - SQL
15
A Current Example
Ontology Works Inc. (OWI) IODE data modeling tool
Domain ontology expressed in Simple Common
Logic (based on Draft ISO/IEC 24707
OWI Knowledge Server Application
16
Another Current Example
Protégé ontology tool
Domain ontology expressed in As an OWL ontology
OWI Knowledge Server Application, possibly built
on Objectivity as the persistent object Store
(DBMS)
17
Semantics Based Computing

• What is it?
• Evolution of semantics management
• Evolution of technologies that utilize semantics

18
Semantics based computing

• Computation based on the meaning of data rather
  than on the manipulation of syntactic structures.

19
Semantic Mapping
19

20
Metadata RegistriesSemantics Management Evolution

• Initial data standards, evolved to stronger
  semantics management
• Common data across information systems (data
  standards)
• Database (schema) integration
• Data use - metadata
• Warehouse support schema and metadata
• XML support (schema)
• Backed into concept/terminology support (deeper
  semantics)
• Next Semantics servers -- for semantic web and
  semantics based computing

21
Past, Present, Future?
Users
Lots of users
Lots of information systems
Lots of Data Sources
22
Data Standards

• Avoid a combinatorial explosion of data content,
  description, and metadata arrangements for
  information access and exchange. Data standards
  and metadata registries can help.

23
Data Element Concept
Name Country Identifiers Context Definition Un
ique ID 5769 Conceptual Domain Maintenance
Org. Steward Classification Registration
Authority Others
Afghanistan Belgium China Denmark Egypt France Ger
many
Data Elements
AFG BEL CHN DNK EGY FRA DEU
004 056 156 208 818 250 276
Afghanistan Belgium China Denmark Egypt France Ger
many
Name Context Definition Unique ID 4572 Value
Domain Maintenance Org. Steward Classification
Registration Authority Others
Name Context Definition Unique ID 3820 Value
Domain Maintenance Org. Steward Classification
Registration Authority Others
Name Context Definition Unique ID 1047 Value
Domain Maintenance Org. Steward Classification
Registration Authority Others
ISO 3166 English Name
ISO 3166 3-Numeric Code
ISO 3166 3-Alpha Code
24

25
Then there is one point of access to our
environmental data resources
Separate Data Repositories
Separate Regs/ Procedures
Separate Environmental Media Legislation
Complete Warehouse Repository
Regulated Facility
State Regs Fed Air Reg Fed Water Reg Fed RCRA
Reg Fed TSCA Reg
State Laws CAA CWA RCRA TSCA
Public/ Environmental Regulators/ Environmental Co
mmunity
Regulated Facility
June 1996
26
Data and Semantics Management
27
ISO/IEC 11179 Metadata Registries
Evolving toward stronger semantics management
28
World Wide Web
Companies
Data Services
Metadata Registries
Universities
Environmental Data Grid
Semantic Services
Terminology Thesaurus Ontology
Taxonomy
Computation Services
Agencies
Data Standards
Structured Metadata
Others
Environmental Semantics Grid
Software Models, Visualization, Analysis Agent
systems Semantic Based Computing
Environmental Computer Grid High Performance,
cluster, Personal
September 2004
29
World Wide Web
Companies
Data Services
Metadata Registries
Universities
Environmental Data Grid
Semantic Services
Terminology Thesaurus Ontology
Taxonomy
Computation Services
Agencies
Data Standards
Structured Metadata
Others
Environmental Semantics Grid
Software Models, Visualization, Analysis Agent
systems Semantic Based Computing
Environmental Computer Grid High Performance,
cluster, Personal
September 2004
30
What is it ? 2

• Semantics based computing Applications that take
  the meaning of data into account to direct the
  processing.
• Establish linkage between concepts referenced in
  text and related data in databases
• Semantic Web
• Support agent-based development of actionable
  data, for informed decision making.

31
Some Challenges

• Translate the 11179 UML model into an ontology,
  manually.
• Translate the 11179 UML model into an ontology,
  automated.
• Identify emerging technology for building
  reference implementation, develop architecture
• Identify test concept structures and sources
• Characterize concept structures
• Identify extensions needed for 11179
• Propose extensions needed for 11179

32
Manual TranslationUML 11179 to an Ontology

• Use Protégé tool and OWL specification
• Frank will show tell all about it

33
Automated Translation 11179 UML Metamodel to an
OWL Ontology
Part 3 metamodel as Rational Rose UML MDL file
34
ISO/IEC 11179Expressed as an Ontology
lt?xml version"1.0" encoding"ISO-8859-1"?gt ltrdfR
DF xmlnsrdf"http//www.w3.org/1999/02/22-rdf
-syntax-ns" xmlnsrdfs"http//www.w3.org/200
0/01/rdf-schema" xmlnsowl"http//www.w3.org
/2002/07/owl" xmlns"http//www.owl-ontologie
s.com/unnamed.owl" xmlbase"http//www.owl-ont
ologies.com/unnamed.owl"gt ltowlOntology
rdfabout""/gt ltowlClass rdfID"Registrar"gt
ltrdfssubClassOf rdfresource"http//www.w3.org
/2002/07/owlThing"/gt ltrdfssubClassOfgt
ltowlRestrictiongt ltowlcardinality
rdfdatatype"http//www.w3.org/2001/XMLSchemaint
" gt1lt/owlcardinalitygt
ltowlonPropertygt ltowlObjectProperty
rdfID"contact"/gt lt/owlonPropertygt
lt/owlRestrictiongt lt/rdfssubClassOfgt
ltrdfssubClassOfgt ltowlRestrictiongt
35
(No Transcript)
36
Potential Standards/Technologies

• DBMS
• Object, XML, Relational, RDF/Graph, Logic, Text,
  Document, Multimedia
• Knowledge Representation
• Web Ontology Language (OWL)
• Simple Common Logic (SCL)
• Middleware/Messaging
• Cocoon 2, Jini, CoABS, JMS, XMLBlaster, SOAP
• XML Semantic Web Services
• Axis, JWSDP
• Agent Development
• ABLE, JADE
• Engines/Servers
• OMS (IBM), Federator/OMS (OWI)
• Jess

37
Content andContent Characterization
A
B
B
B
C
C
C
C
C
Directed Acyclic Graphs, Cyclic, Undirected,
Frank Olken to tell about this.
38
PreviewSuggested Changes for P2/P3 (cont.)

• Issue 1. Make "relation" an administered item.
  The relationship could be managed as part of the
  structure in which they are involved.
  Alternatively, in Clauses 4.10 and 4.11, possibly
  treat the subject role as an aggregate
  association. This is an alternative way of
  administering relationships, more in line with
  current practice.

39
PreviewSuggested Changes for P2/P3 (cont.)

• Issue 2. Rename the "horizontal" role and
  association names in Clause 4.7.3, Figure 3.
  E.g., Value_Domain should not have the role
  "representing" going in two directions. The
  association name "data_element_representation"
  may be impacted by the change in role names. Note
  that the role between the top two boxes is
  labeled "having" and "specifying", while the role
  between the bottom two boxes is labeled
  "represented_by" and "representing". The
  relationship between the upper two boxes and
  bottom two should be symmetric. Also, "having"
  could better be "specified_by". (We also have
  possible alternate proposals for labels.)

40
Preview of Issues (cont.)

• Issue 3 Identify the types of correspondences
  between concepts. The point is to record the
  types of overlap between the concepts. An
  alternative is translation tables, which record
  pairs of IDs linking concepts without any more
  specific "type" information.

41
PreviewSuggested Changes for P2/P3

• Issue 4. Directed Relationships as replacement to
  "association" and "related to" in Clauses 4.10
  and 4.11. Note that in Clause 4.11,
  "concept_relation" is directed, but no inverse is
  specified.
• Issue 5. Replace the "string" value to a relation
  instance. This applies to
• Clause 4.10
• clasification_scheme_item_relationship_type
  _description
• Clause 4.11
• data_element_concept_relationship_type_description

• concept_relationship_type_description

42
Next Year Proposed

• Service Oriented Architecture

43
Eighth International Open Forum on Metadata
RegistriesSemantic Interoperability Where
Meaning Meets Metadata.Open Forum 2005
April 11-14, 2005 Berlin, Germany
Berlinopenforum.de
