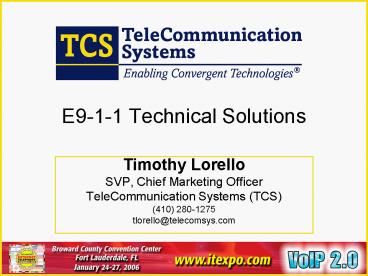

E9-1-1 Technical Solutions

1
E9-1-1 Technical Solutions

• Timothy Lorello
• SVP, Chief Marketing Officer
• TeleCommunication Systems (TCS)
• [phone]
• tlorello_at_telecomsys.com

2
Mission Critical Communications

• TCS Established in 1987
• HQ Annapolis, Maryland, USA
• Offices Seattle, Tampa, London
• Data Centers Washington, Arizona and Maryland
• NASDAQ TSYS, August 2000

• TCS Strategic Offers
• Wireless Location Messaging
• Enterprise Mobility Solutions
• Satellite Services
• Professional Services
• Homeland Security

• TCS Industry Relations
• Founding Member SMS Forum, PAM Forum, IN Forum
• Member CTIA, ETSI, GSM, 3GPP, LIF, Wireless
  Village, NENA, NRIC, OMA

2
3
TCS E9-1-1 Experience

• Carriers
• Contractual relationships with over 50 carriers
• Contracted to deploy E9-1-1 services to about 100
  million subs
• Handling about 50 of all Wireless VoIP E9-1-1
  calls
• Public Safety
• Deployed E9-1-1 in 42 states to over 4600 PSAPs
• Largest number of VoIP PSAPs deployed (several
  hundred)
• Member of NENA, APCO and ComCARE
• Charter member of NENA Next Generation task force

3
4
Agenda

• VoIP Adopts the Wireless E9-1-1 Model
• VoIP A Challenging Environment
• The Current VoIP Models
• Location The Toughest Challenge
• Other Key Issues to Address
• What Happens when Technology Fails?
• How to Test without driving Public Safety Crazy
• Pay Attention to Liability
• Solutions Being Tested Deployed

4
5
VoIP Adopts the Wireless E9-1-1 Model
5
6
Requirements for E9-1-1

• Requirements for a proper E9-1-1 call
• Must know location of caller
• Must use caller location to route call
• The US has over 8000 Public Safety Answering
  Points (PSAPs)
• PSAPs typically cover metropolitan areas or
  counties
• PSAPs are Call Centers which dispatch Emergency
  Services
• Must deliver caller location
• Call Centers can automatically receive location
  information
• For wireline VoIP, street address information
  is delivered
• For wireless, latitude/longitude information is
  delivered

1 Location 2 Routing 3Delivery Full
E9-1-1!
6
7
Wireline E9-1-1 Scenario
4109990000
4106661111
Central Office
2
3
Database Approach
PSAP
ALI Automatic Location Identification
(database) PSAP Public Safety Answering Point
ALI
Local Exchange Carrier (LEC)
7
8
Wireless E9-1-1 Scenario
4109990000
4107771111
Wireless Carrier
LEC
Mobile Switching Center
1
ESRK
ALI
a - Tower b - Precise
2
3
Network Approach
PSAP
Precise X/Y
CRDB Call Routing Data Base PDE - Position
Determination Entity
ESRK
MPC Mobile Positioning Center ESRK
Emergency Services Routing Key
MPC
ALI
CRDB
PDE
E911 Network Operations Center
8
9
The Current VoIP E9-1-1 Models
9
10
VoIP Presents E9-1-1 Challenge

• Voice over IP (VoIP)
• Voice transmitted as data over IP transport
• Three broad categories of service
• Static VoIP to the home as a wireline
  replacement
• Nomadic VoIP person stops in different places
• Mobile VoIP continuous movement within VoIP
  network
• Challenges
• 1 How to locate?
• 2 How route?
• 3 How deliver?

1
2
3
10
11
Phased Approach for VoIP E9-1-1

• I1 routing to PSAP administrative line
• This is Basic 9-1-1 not Enhanced E9-1-1
• Requires geospatial boundary maps for PSAPs
  nationwide
• I2 use existing E9-1-1 infrastructure
• True Enhanced E9-1-1
• Requires same as I1 and also access to Selective
  Routers
• I3 use VoIP in the end-to-end delivery model
• True Enhanced E9-1-1
• Requires boundary maps but NOT selective routers
• PSAP uses VoIP in their response systems
• VoIP call the whole way

11
12
VoIP E9-1-1 Scenario
4109990000
VoIP Service Provider (VSP)
4107771111
LEC
Softswitch
EQRK
ALI
VoIP
1
2
3
Network Approach
Registration
9-1-1
4109990000 ESQK
PSAP
Dispatch to Registered Location
MSAG or Civic address 4107771111
CRDB Call Routing Data Base Register-
Location Registration Data
ESQK
VPC VoIP Positioning Center ESQK Emergency
Services Query Key
VPC
ALI
CRDB
Register
E911 Network Operations Center
12
13
VoIP E9-1-1 Scenario
4109990000
VSP Backbone
VSP
4107771111
9-1-1
LEC
EQRK
ALI
VoIP
Softswitch
Softswitch
1
2
3
Network Approach
Registration
9-1-1
4109990000 ESQK
PSAP
Dispatch to Registered Location
MSAG or Civic address 4107771111
CRDB Call Routing Data Base Register-
Location Registration Data
ESQK
VPC VoIP Positioning Center ESQK Emergency
Services Query Key
VPC
ALI
CRDB
Register
E911 Network Operations Center
13
14
The Toughest VoIP Challenge Location
14
15
Automatic Location Port Discovery

• Port identification discovery
• System identifies ports in use
• System interrogates devices attached to ports
• Port mapped to telecom identifier
• Administrator can map port to a specific location
• Done for PBX systems today
• Helps business meet FCC E9-1-1 MLTS requirements
• Updates submitted daily activated w/in 48 hours
• VoIP implementations will change more rapidly
• 48-hour delays will impact progress on MLTS
  issues
• Excellent for Enterprise applications

15
16
Automatic Location Triangulation

• WiFi triangulation techniques
• Triangulates on attached devices
• System interrogates devices attached to ports
• Interacts w/ client software on device
• Accuracy demonstrated within 3 to 5 meters
• Excellent for enterprise applications

16
17
Automatic Location GPS

• GPS Triangulation Techniques
• Integrated into WiFi device
• Interacts with visible satellites for multi-point
  triangulation
• Same technology as in current wireless handsets
• Accuracy under 5 meters in many scenarios
• Excellent for consumer applications

17
18
Automatic Location TV-GPS

• TV-GPS Triangulation Techniques
• Integrated into WiFi device
• Interacts with TV towers for multi-point
  triangulation
• Same technology
• With three connections, can triangulate within 1
  meter
• Excellent for consumer and enterprise applications

18
19
Automatic Location WiFi Mapping

• Mapping of WiFi Hot Spots
• Handset identifies WiFi connection point
• Over 70 major metropolitan areas mapped
• Thin client communicates IP address to Mapping
  Server
• When 9-1-1 is dialed, TCS interrogates Mapping
  Server
• Accuracy within 30 meters or better
• Currently able to provide live demonstrations
• Excellent for consumer or enterprise applications

19
20
Other Key Issues To Address Failure Testing Liabi
lity
20
21
Failure Is Not an Option
3129990000
4106663333
Chicago Illinois
Softswitch
9-1-1
1600 Primrose Lane Maryland
Registration Failures
TRC
Live Operator Support if Processes Or Technology
Fail
TRC TCS Resource Center
Location Failures
21
22
Testing 1-2-3
VSP Backbone
VSP
4107771111
9-1-1
VoIP
Softswitch
Softswitch
3
1
Registration
2
9-1-1
VoIP Verify
PSAP
Avoid Calling The PSAP
CRDB Call Routing Data Base Register-
Location Registration Data
ESQK
VPC
ALI
CRDB
Register
E911 Network Operations Center
22
23
You May Be Unprotected!!

• Public Safety is demanding E9-1-1
• The customer base expects it
• The FCC has mandated it
• Regulations protect Competitive LECs (CLECs)
• Most states provide liability protection
• Extends to wireline, wireless, and CLEC
• Not all VoIP Service Providers are CLECs
• Some wish to avoid the regulatory environment
• Unfortunately, they miss the regulatory
  protections

23
24
Solutions Being Tested and Deployed
24
25
Applying Wireless Mobility to VoIP

• VoIP Carriers
• Preferred vendor for Vonage (largest VoIP Service
  Provider VSP)
• Partner with Level(3) (largest VoIP Backbone
  Provider)
• VoIP Solutions Being Deployed
• I1 solution provided today
• Calls can be primary-routed to Administrative
  Lines
• Calls can be primary-routed to TCS Response
  Center (RC)
• TCS RC can deliver calls to Administrative Lines
• TCS RC can deliver calls directly to First
  Responders (Fire, Police, Ambulance)
• I2 Calls successfully completed at hundreds of
  PSAPs nationwide
• Routing Instructions provided to VSP call server
• Call-back number and Registered Location
  automatically delivered to PSAP
• PSAP Outreach Efforts
• Education information exchange w/ 3000 PSAPs
  nationwide

25
26
Nationwide Deployment Progress

• TCS is aggressively deploying PSAPs
• In support of Vonage
• In support of customers of Level(3)
• Thousands of PSAPs have received information
• Thousands of PSAPs have provided information
• Hundreds have been deployed
• ALI connections in place
• Selective Router access by Level(3) others
• Rapidly provisioning ESNs and ESQKs
• Testing EVERY ESQK

26
27
Following the NENA Standard
27
28
Summary

• Evolution is the first step (following wireless)
• VoIP A Challenging Environment
• Models exist and are being implemented
• Location is the toughest technical challenge
• Other Key Issues to Address
• Have a fall-back scenario to handle failures
• Have a test platform that does not impact the
  PSAP
• VoIP providers are exposed to liability be
  aware!
• Nationwide VoIP E9-1-1 Rollout Continues!!

28
29
Questions Tim Lorello SVP, Chief Marketing
Officer [phone] lorellot_at_telecomsys.com
Thank You!
