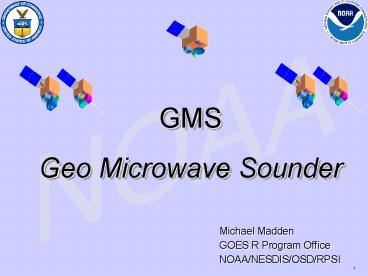

GMS Geo Microwave Sounder
Michael Madden GOES R Program Office NOAA/NESDIS/O
SD/RPSI
2
Outline

• Introduction
• Microwave Band
• AMSU Examples
• GOES R Applications
• Promising Technology

3
Geo Microwave

• Passive Sounder identified as GOES R P3I
• Compliments HES
• Provides high resolution spatial coverage
• Scheduled post 2015 launch
• NOAA/NASA following promising technologies
• Hosted on A, B, or C satellite

4
Introduction

• Passive Microwave Sounder
• Based on AMSU experience
• Single and dual band algorithms
• ATMS already flying on NPOESS
• Increases utility of IR sounders
• Previously Identified as a need at GUC II
• NOAA Requirements
• Hemispheric Coverage
• Hourly Updates
• Temperature/Moisture/Precipitation

5
Microwave Band
6
AMSU Channels
7
Hurricane Erin
8
Hurricane Erin
AMSU 5 (53.6 GHz)
9
Hurricane Erin
AMSU 6 (54.5 GHz)
10
Hurricane Erin
AMSU 7 (54.9 GHz)
11
Hurricane Erin
AMSU 8 (55.5 GHz)
12
Hurricane Erin
AMSU 16 (89 GHz)
13
GEM Concepts
GEM GeoSTAR
Approach Solid dish Sparse aperture
Mass 70 kg 100 kg
Power 150 Watts 250 Watts
Electronics 50 x 60 x 40 cm 50 x 60 x 40 cm
Antenna Size 200 cm dish 300 cm strip
Data Rate lt0.5 Mbps lt0.5 Mbps
exact values are TBD
14
GEostationary Microwave (GEM)

• Solid dish antenna design
• NOAA/ETL and MIT design
• 5 bands (54, 118, 183, 380 and 424 GHz)
• 43 Channels
• 2m solid dish antenna
• 16 140 km resolution
• CONUS in 90 minutes
• 1500 x 1500 km in 15 minutes

15
GEM Resolution
Frequency Resolution
54 GHz 116 km
118 GHz 56 km
183 GHz 36 km
380 GHz 18 km
424 GHz 16 km
16
GeoSTAR

• Thinned aperture radiometer
• NASA JPL design
• 3 bands (54, 89 and 183 GHz)
• 10 Channels
• 25 50 km resolution
• Sparse aperture, no moving parts
• Full disk in 60 minutes
• Similar technology on SMOS

17
GeoSTAR Resolution
Frequency Resolution
54 GHz 50 km
89 GHz 25 km
183 GHz 50 km
18
Summary

• Passive microwave sounder identified as P3I
• Technology continuing, currently PDR
• Provide moisture, temperature, precipitation
• Cloud clearing for HES
• Based on AMSU/ATMS bands
• NOAA/NASA following promising technologies
• GEM
• GeoSTAR
• First Launch planned for 2015
• Stay Tuned!

19
Acknowledgements

• AMSU Imagery courtesy of UW/CIMSS
• GEM information courtesy of Al Gasiewski,
  NOAA/ETL
• GeoSTAR information courtesy of Bjorn
  Lambrigtsen, NASA/JPL
• Microwave information courtesy of Shyam Bajpai,
  NOAA/NESDIS
