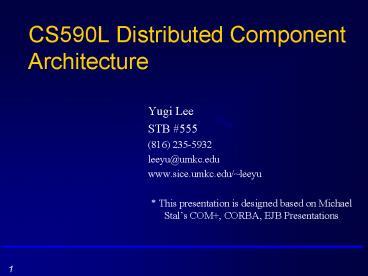

CS590L Distributed Component Architecture

1
CS590L Distributed Component Architecture

• Yugi Lee
• STB 555
• [phone]
• leeyu_at_umkc.edu
• www.sice.umkc.edu/leeyu
• This presentation is designed based on Michael
  Stals COM, CORBA, EJB Presentations

2
Motivation

• Driven by the Internet as well as mobile and
  embedded devices distributed solutions are now
  considered common place.
• However, building distributed applications is a
  non- trivial task.
• Thus, the question is how can we efficiently
  build and deploy such applications?
• Basic architectural understanding of OO
  Middleware.
• Better leveraging Component Platforms.

3
Distributed Applications
4
Services of the Middle Tier

• The services in the Middle Tier participate in
  different kinds of tasks
• They must participate in the workflow of
  integrated business processes.
• They must connect to databases and other backend
  systems for data storage and service access.

5
Services of the Middle Tier

• Problem Functionality in the middle tier is
  always subject to change and adaptation. It is
  used in unforeseen contexts (from different
  clients).
• Solution The middle tier should not be
  structured as a monolithic unit but rather be
  decomposed.

6
Component-based Software

• Components are the appropriate means for
  decomposition
• Presentation Tier components
• they typically represent sophisticated GUI
  elements.
• they share the same address space with their
  clients.
• their clients are containers that provide all the
  resources.
• they send events to their containers.
• Middle Tier components
• they typically provide server-side functionality.

• they run in their own address space.
• they are integrated into a container that hides
  all system details.

7
Building distributed applications is complex

• How to cope with heterogeneity?
• How to access remote services in a
  location-transparent way?
• How to handle (de-) marshaling issues?
• How to find remote objects?
• How to activate remote objects?
• How to keep state persistent and consistent?
• How to solve security issues?
• Synchronous/ asynchronous communication?

8
Distributed Objects are the answer

• What we need is an architecture that ...
• supports a remote method invocation paradigm
• provides location transparency
• allows to add, exchange, or remove services
  dynamically
• hides system details from the developer

9
Requirements for Distributed Component-based
Applications

• Transparent, platform-neutral communication.
• Activation strategies for remote components.
• Non-functional properties such as performance,
  scalability, Quality of Service.
• Mechanism to find and create remote components.
• Keeping state persistent and consistent.
• Security issues.
• Data transformation.
• Deployment and configuration.

10
Component/Container Approach

• In order to shield components from the underlying
  infrastructure specifics, containers are
  introduced.
• Containers
• manage components and notify components about
  events such as activation, passivation,
  transactions.
• provide components access to services such as
  transactions, security, persistence.
• help to register and deploy components.

11
Application Servers (Servers Containers)
12
Select the right standard

• COM, Windows DNA 2000, Microsoft. NET or
• CCM (Corba Component Model), CORBA 3 or
• EJB v2, J2EE
• Andrew Tanenbaum The best thing about standards
  is that there are so many to choose from

13
EJB 2.0

• There are three flavors of enterprise Beans
• A session bean type (mandatory for EJB 1.0 and
  EJB 1.1 compliant containers)
• An entity bean type (mandatory in EJB 1.1
  compliant containers)
• A message bean type (mandatory in EJB 2.0
  compliant containers)

14
(No Transcript)
15
CORBA-3

• In the year 2000 the OMG has published CORBA 3
  which offers solutions in the 3 areas
• Internet
• Quality of Service
• Components
• With CORBA 3, the OMG offers a full range of
  enterprise technologies.
• the specification of CCM (Corba Component Model),
  11/2001
• Interoperability (COM, EJB)
• Portable Object Adapter (POA)

16
CORBA Architecture
17
COM

• First of all COM COM Services
• COM is MTS 3.0
• It is integrated to Windows 2000
• It contains a lot of services such as
• Transaction Serrvices (MTS)
• Security Services
• Synchronization Services
• Queued Components
• Event Service
• COM Catalog RegDB Registry

18
COM Architecture
19
Middleware Comparision-1
20
Middleware Comparision-2
21
Middleware Comparision-3
IIOP Internet Inter-Orb Protocol, OTS Object
Transaction Services, JTS Java Transaction
Services, MTS Microsoft Transaction Services
ADSI Active Directory Service Interfaces JNDI
Java Naming and Directory Interface AMI Asynch
Messaging Interface
22
Middleware Comparision- 4
UPnP Universal Plug and Play
23
Universal Plug and Play

• an architecture for pervasive peer-to-peer
  network connectivity of PCs of all form factors,
  intelligent appliances, and wireless devices.
• a distributed, open networking architecture that
  leverages TCP/IP and the Web to enable seamless
  proximity networking in addition to control and
  data transfer among networked devices in the
  home, office, and everywhere in between.
• MS XP support for UPnP Internet gateways,
  providing broadband users for online games,
  videoconferencing and other peer-to-peer
  services.

24
JINI/JXTA

• Jini an open architecture that enables
  developers
• to create network-centric services that are
  highly adaptive to change.
• to build adaptive networks that are scalable,
  evolvable and flexible as typically required in
  dynamic computing environments.
• JXTA
• a set of open, generalized peer-to-peer (P2P)
  protocols, defined as XML messages, that allow
  any connected device on the network ranging from
  from cell phones and wireless PDAs to PCs and
  servers to communicate and collaborate in a P2P
  manner.
• JXTA peers create a virtual network where any
  peer can interact with other peers and resources
  directly even when some of the peers and
  resources are behind firewalls and NATs or are on
  different network transports.

25
