Introduce of Linac Control System

1

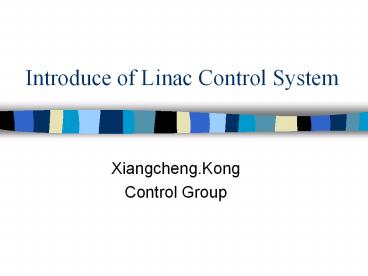

Introduce of Linac Control System

• Xiangcheng.Kong
• Control Group

2
Architecture
3
Main Function

• PS control
• Vacuum monitor
• Modulator monitor
• Step/DC Motor control
• safe system

4
Hardware developer
5
Remote IO feature
6
IO Statistics

• Vacuum PS Step Motor Total
• DA 4x16 1x84 148
• AD 8x166 2x84 302
• DI 8x16 1x847 219
• DO 1x16 1x842 18 102

System estimate 350,000 approximate 42,000
7
Special treatment for RS-422
Extra UART reception schematic diagram Double
port out for RS-422
8
Software environment

• Windows 98/NT
• Visual c
• Turbo c
• NI LabView
• ASM51

9
Console

• Trace Ball used as PS regulator
• MDI Alarm
• www Server for diagnosis
• Channel Scan

10
Data Exchange Process
Control Program
TCP/IP UDP/IP
232 Intermediate transceiver for Intranet
232/CAN 232/422 Bus Driver
11
The feature of 232 transceiver Intermediate

• 10 user if TCP Link
• Provide UDP Link Access Method
• User ID Verify
• FIFO Array
• Re-transmit while error occur
• Home Made

12
(Continue) The feature of 232 transceiver
Intermediate
13
(Continue) the 232 transceiver Intermediate for
intranet
14
Diagnosis Tool Channel Access
15
Threshold value Adjustment App.
16
Klystron Output Display
17
Klystron Output Display for Intranet
18
Discuss

• Reliable Link is not guarantee in TCP/IP for a
  long time because of noise
• .increate main nodes for data exchange
• .UDP link for monitor system
• Local DataBase establish for physics beam tune
  and them interface
• .use commerce DB
• .server/client Architecture

19
Conclusion

• Control system is flexible and open.
• System diagnosis perfect include.
• Only 23 person to do all hardware and software.
• Graphics class is developing because of less
  human resource.
• EPICS will start basing on the fieldbus lay.

20
Thank You Very Much
