J2EE and Microsoft 'NET Framework Enterprise Computing

1

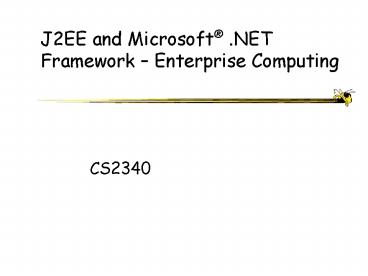

J2EE and Microsoft .NET Framework Enterprise
Computing

• CS2340

2
Administrivia

• TA applications due tomorrow _at_ noon
• http//www.cc.gatech.edu/TA-app
• 12/2 Demo your project!
• 1 pt extra credit
• Send me email to sign up

3
What is an Enterprise?

• A large organization that uses computers
• Has existing IT resources
• databases
• applications
• Has large amounts of data
• May have high transaction volumes
• Has complex multi-tier environments

4
What is an Enterprise Application?

• Software that supports the purpose of the
  enterprise
• Examples
• Filling orders
• Tracking inventory
• Handling accounts
• Making reservations

5
Evolution of Enterprise Software

• 1960s mainframes with punch card entry
• Batch jobs ran at night from punch cards
• Data usually a day behind
• 1970s mainframes with dumb terminal entry
• VSAM filesystem for data store with indexes and
  keys
• 1980s mainframes with personal computer clients
• SQL for access to relational databases
• Some work done locally
• 1990s Client Server
• Cost of supporting client software was high
• Limits on transaction throughput with 2 tiers
• 2000s N-tier with many different client devices
• J2EE, CORBA, and .Net for enterprise applications

6
What is hard about Enterprise Software?

• Handling a variety of operating systems,
  databases, and servers
• Handling large numbers of users
• Handling large numbers of transactions
• Providing security
• Keeping the system up
• Allowing for growth
• Allowing for different client devices (browser,
  wireless, applets, applications)
• Connecting to legacy applications

7
What is J2EE?

• Java 2 Platform, Enterprise Edition
• A standard architecture for creating, deploying,
  and managing enterprise-level server-side
  software
• J2EEs Goal
• Provide components that make it faster, cheaper,
  and less complex to develop and maintain
  enterprise applications that are
• machine, server, and database independent
• multi-tier
• scalable
• reliable
• secure

8
What do we mean by the J2EE?

• Specifications
• Group developed requirements for the J2EE
  platforms
• Server
• Software that runs J2EE applications
• Compatibility Test Suite
• How a platform is tested to verify specification
  compliance
• Reference Implementation
• A sample implementation of the specifications
• Blueprints
• Best practices and guidelines

9
Why use the J2EE?

• Use it for applications that
• Are machine, server, and database independent
• So you can move your application to different
  machines, operating systems, and databases
• Are scalable
• Can grow over time
• Require transactions
• Like debiting one account and crediting another
  at the same time
• Are reliable
• Stay up and handle large numbers of users
• Are secure
• Protect sensitive data

10
J2EE Primary APIs

• JavaServer Pages (JSPs)
• Dynamic page creation based on client request
• Java Servlets
• Controller for routing client requests to JSP
• Enterprise JavaBeans (EJBs)
• Represent business entities and processes
• JDBC data access API
• Access data in relational databases
• The Java Naming and Directory Interface (JNDI)
• Access enterprise name and directory services
• The Java Transaction API (JTA)
• Handle distributed transactions
• Interface Definition Language (IDL)
• Access CORBA services via IIOP

11
What do the APIs do?
JNDI
EJB
EJB
JTA
EJB
HTTP
Servlet
EJB
JDBC
EJB
EJB
JSP
JSP
IDL
HTML or XML
CORBA
12
J2EE Secondary APIs

• Java Message Service (JMS)
• Send asynchronous messages
• JavaMail
• Send and receive e-mail
• J2EE Connector Architecture
• Connect to legacy systems
• XML Pack
• Java API for XML Processing (JAXP)
• Parse and transform XML documents
• Java API for XML Messaging (JAXM)
• Send and receive XML messages
• Java API for XML Registries (JAXR)
• Interact with XML Registries (UDDI and ebXML)
• Java API for XML-based RPC (JAX-RPC)
• Remote procedure calls(RPC) with Simple Object
  Access Protocol (SOAP)

13
Common Language Runtime (CLR)

• Its a VM (Java-like) on which any (supported)
  language can run.
• Why a VM?
• Memory Protection
• Cross-language
• Support for strong-typing across languages
• Thread support
• Compactness
• Flexibility (Reflection, Meta-programming)
• JIT compilation in the VM
• Stack-based
• 3 generation garbage collector

14
Languages in CLR

• Language of choice is C (C-sharp) a Java-like
  language
• No inner classes
• Better type checking
• Other languages will run on CLR, but only within
  the CLR constraints
• Visual Basic, JScript are full fledged CLR
  languages
• For example, only C that is VM-safe will run
• That subset looks much like C
• Under CLR, all languages get object features
• Inheritance used extensively
• Every language gets constructors

15
Supported Languages

• Languages targeted to CLR
• APL C
  C COBOL
• Component Pascal Curriculum Eiffel
  Fortran
• Haskell Java Language
  Microsoft JScript Mercury
• Mondrian Oberon Oz
  Pascal
• Perl Python
  RPG Scheme
• Smalltalk Standard ML
  Microsoft Visual Basic

Languages interoperate seamlessly. Can write
part of app in Scheme, part in C and part in
Smalltalk!
16
Languages compile to MSIL

• Languages compile to MSIL (Microsoft Intermediate
  Language)
• Also known as bytecodes
• MSIL is shipped in portable executable (PE) units
• Similar to, say, .class files or applets
• Includes meta-data about types
• An application is made up of assemblies

17
Reuse

• Tries to get maximum reuse of components/assemblie
  s (like Smalltalk)

We get this in the .NET world via assemblies.
18
Assemblies

• In general, a static assembly can consist of four
  elements
• The assembly manifest, which contains assembly
  metadata (required).
• Type metadata.
• Microsoft intermediate language (MSIL) code that
  implements the types.
• A set of resources.

19
Assemblies can be spread across the network
20
Assemblies are the security unit

• Each assembly has a set of corresponding grants
• Each grant allows certain permissions
• DnsPermission, Environment, FileDialog, FileIO,
  IsolatedStorage, Reflection, Registry, Security,
  UI, WebPermission, SocketPermission
• The set of grants establishes a security policy
• Grants are determined by CLR managed code
  security policy system.

21
Assemblies

• They are also the basic unit for
• Versioning
• Types
• Reference Scope Boundary
• Deployment
• Side-by-side execution
• Can be shared via the Global Assembly Cache (like
  a Squeak Image).

22
Application Domains

• Processes provide nice separation of applications
  with separate address, security and run control.
  But causes problems with IPC.
• Application Domains allow multiple applications
  to run in same box, share memory and security
  rights, but also have isolation and individual
  security and run control if desired. So a
  process can run multiple applications!

23
Class Library

• Data classes support persistent data management
  and include SQL classes.
• XML classes enable XML data manipulation and XML
  searching and translations.
• Windows Forms support development of Windows GUI
  applications across CLR
• Web Forms include classes that enable you to
  rapidly develop web GUI applications.

24
Forms
25
C System.Object

• Public methods
• Equals
• GetHashCode
• GetType
• ToString
• Overriding inherited behaviors is common

26
C Code and Manifest
using System class MainApp public static
void Main() Console.WriteLine
("Hello World using C!")
.assembly extern mscorlib .publickeytoken
(B7 7A 5C 56 19 34 E0 89 ) // .z\V.4..
.ver 1024110 .assembly Hello // ---
The following custom attribute is added
automatically do not uncomment. ------- //
.custom instance void mscorlibSystem.Diagnostics
.DebuggableAttribute.ctor(bool, // bool)
( 01 00 00 01 00 00 ) .hash algorithm
0x00008004 .ver 0000 .module Hello.exe
// MVID 58AD9DFD-63A6-462A-8AD5-42CBC95AA147
.subsystem 0x00000003 .file alignment 512
.corflags 0x00000001 // Image base
0x03330000
27
Web, Windows, Whatever

• Part of the idea is to smooth transitions between
  Windows and Web
• Web interfaces become easier for Windows
  developers
• Windows apps become .NET Web-based apps

28
Data lt-gt XML, Everywhere

• All CLR data can be serialized to XML
• All XML can be expanded into CLR data
• Thus, anything can be shipped around on the Web
• Typing through XML Schema
• Pluggable Architecture

29
XML Schema

• ltxsdcomplexType name"Person"gt
• ltxsdsequencegt
• ltxsdchoicegt
• ltxsdelement name"name"
  type"xsdstring"
• xsinillable"true" /gt
• ltxsdelement name"id"
  type"xsdstring" /gt
• lt/xsdchoicegt
• ltxsdany processContents"lax"/gt
• lt/xsdsequencegt
• lt/xsdcomplexTypegt
• ltxsdcomplexType name"AgedPerson"gt
• ltxsdcomplexContent mixed"false"gt
• ltxsdextension base"targetPerson"gt
• ltxsdchoicegt
• ltxsdelement name"age"
  type"xsddouble" /gt
• ltxsdelement name"timeOnEarth"
  type"xsddouble" /gt
• lt/xsdchoicegt
• lt/xsdextensiongt
• lt/xsdcomplexContentgt

30
Example Instance

• ltnsdon
• xmlnsns"uuid048b2fa1-d557-473f-ba4c-
• acee78fe3f7d"
• gt
• ltnamegtDon Boxlt/namegt
• ltniceStuffForDon/gt
• lt/nsdongt

31
Second Example Instance

• ltnsdon
• xmlnsns"uuid048b2fa1-d557-473f-ba4c-acee78f
  e3f7d"
• xmlnsxsi"http//www.w3.org/2001/XMLSchema-in
  stance"
• xsitype"nsAgedPerson"
• gt
• ltnamegtDon Boxlt/namegt
• ltniceStuffForDon/gt
• ltagegt26lt/agegt
• lt/nsdongt

32
A Simpler Schema

• ltelement name"Book"gt
• ltcomplexTypegt
• ltelement name"author" type"xsdstring"/gt
• ltelement name"preface" type"xsdstring"/gt
• ltelement name"intro" type"xsdstring"/gt
• lt/complexTypegt
• lt/eBookgt

33
Another Example Instance

• lteBookgt
• ltauthorgtHenry Fordlt/authorgt
• ltprefacegtPrefatory textlt/prefacegt
• ltintrogtThis is a book.lt/introgt
• lt/eBookgt

34
XML Schema Defined Types
35
Class Library Type Hierarchy
36
Reading in XML Data

• XmlReader reader
• new XmlTextReader("http//foo.com/don.
  xsd")
• XmlSchema schema XmlSchema.Load(reader, null)
• schema.Compile(null) // turn xml into objects
• reader.Close()

37
Serialized Classes
public class OrderForm public DateTime
OrderDate private int foo
ltOrderFormgt ltOrderDategt12/12/01lt/OrderDategt
lt/OrderFormgt
Note Only public instance data and properties
are serialized with XML.
38
ALL Interprocess Communication via SOAP

• ALL Interprocess communication (across network or
  on same machine) is through SOAP
• Simple Object Access Protocol
• Its a way of exchanging data and even calling
  other methods/threads, all via XML and plain old
  HTTP requests

39
SOAP 1.2

• SOAP is a lightweight protocol intended for
  exchanging structured information in a
  decentralized, distributed environment. SOAP uses
  XML technologies to define an extensible
  messaging framework, which provides a message
  construct that can be exchanged over a variety of
  underlying protocols. The framework has been
  designed to be independent of any particular
  programming model and other implementation
  specific semantics.

40
Example SOAP Request

• ltsoapEnvelope xmlnssoap"http//schemas.xmlsoap.
  org/soap/envelope/"gt
• ltsoapBodygt
• ltxTransferFunds xmlnsx"urnexamples-orgban
  king"gt
• ltfromgt22-342439lt/fromgt
• lttogt98-283843lt/togt
• ltamountgt100.00lt/amountgt
• lt/xTransferFundsgt
• lt/soapBodygt
• lt/soapEnvelopegt

41
Example SOAP Response
ltsoapEnvelope xmlnssoap"http//schemas.xmlsoap.
org/soap/envelope/"gt ltsoapBodygt
ltxTransferFundsResponse xmlnsx"urnexamples-org
banking"gt ltbalancesgt
ltaccountgt ltidgt22-342439lt/idgt
ltbalancegt33.45lt/balancegt
lt/accountgt ltaccountgt
ltidgt98-283843lt/idgt
ltbalancegt932.73lt/balancegt
lt/accountgt lt/balancesgt
lt/xTransferFundsResponsegt lt/soapBodygt
lt/soapEnvelopegt
42
Example SOAP Fault
ltsoapEnvelope xmlnssoap"http//schemas.xmlsoap.
org/soap/envelope/"gt ltsoapBodygt
ltsoapFaultgt ltfaultcodegtsoapServerlt/fau
ltcodegt ltfaultstringgtInsufficient
fundslt/faultstringgt ltdetailgt
ltxTransferError xmlnsx"urnexamples-orgbank
ing"gt ltsourceAccountgt22-34243
9lt/sourceAccountgt
lttransferAmountgt100.00lt/transferAmountgt
ltcurrentBalancegt89.23lt/currentBalancegt
lt/xTransferErrorgt
lt/detailgt lt/xTransferFundsgt
lt/soapBodygt lt/soapEnvelopegt
43
Soap Request with Security
ltsoapEnvelope xmlnssoap"http//schemas.xmlsoap.
org/soap/envelope/"gt ltsoapBodygt
ltxTransferFunds xmlnsx"urnexamples-orgbanking
"gt ltfromgt22-342439lt/fromgt
lttogt98-283843lt/togt ltamountgt100.00lt/amountgt
lt!-- security credentials --gt
ltcredentialsgt ltusernamegtdavelt/usernamegt
ltpasswordgtevadlt/passwordgt
lt/credentialsgt lt/xTransferFundsgt
lt/soapBodygt lt/soapEnvelopegt
44
MS .Net
45
ASP.NET

• ASP gt Active Server Pages
• Put most of the computation in the server
• Very simple model to use
• ADO.NET is the database connection part

46
Calling Web Services

• Any class can be converted into an XML Web
  Service with just a few lines of code, and can be
  called by any SOAP client.

47
Take-away lessons

• VMs are important
• Even Microsoft thinks so
• Distributed apps are important, but to do so
  requires standard protocols
• Ways of serializing data (XML)
• Ways of doing RPC (SOAP)
• Design Decisions Good and Bad

48
Limitations of the .NET Framework

• What if youre not on the network?
• Maybe thats not an issue?
• Mapping between XML and any object is hard
• Any object is controlled by compiler. XML can
  be written by anybody with a text editor.
• Theres a whole bunch of class support for
  modified serializers and compilers

49
J2EE versus Microsofts .NET

• J2EE has been around longer
• .NET released in 2002
• but Microsoft Transaction Server (MTS) and
  Component Object Model (COM) are older
• Dec 2001 survey shows 78 using J2EE
• 22 using .NET
• Microsoft claims better performance with Pet
  Store example
• but Sun says it isnt a fair comparison
• Microsoft used stored procedures
• Pet store is an example, not a speed test

50
Next Time

• Extreme Programming (last lecture!)
• 12/2 Demo your project!
• 1 pt extra credit
• Send me email to sign up
• 12/4 Final Exam review
• Come prepared with questions
