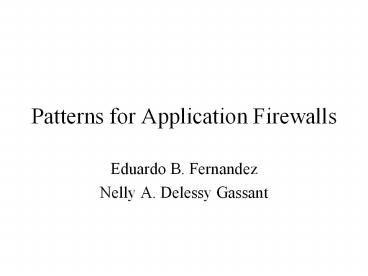

Patterns for Application Firewalls

• Eduardo B. Fernandez
• Nelly A. Delessy Gassant

2
Agenda

• Introduction
• The Application Firewall Pattern
• The XML Firewall Pattern

3
Introduction

• Driven by business imperatives, organizations
  have to open up their systems to a wide variety
  of partners, customers or mobile employees.
• Web applications and web services made it
  possible to easily access their internal network
  from the outside, introducing new types of
  threats
• Increasing number of user categories ? misuse
  more likely
• Each application implements access control ?
  Increased complexity ? weakens security of the
  whole system

4
Introduction

• New types of threats
• New accesses realized by using or by tunneling
  into existing protocols (HTTP, SMTP, ) ?evade
  access control to services performed by
  traditional firewalls
• Payload of these messages can embed harmful data
• Common solution to add an Application Firewall
  to the traditional line of defense defined by
  network-based firewalls.
• 2 patterns can be abstracted from current
  commercial offers
• the Application Firewall (general scheme)
• The XML Firewall (firewall specialization)

5
The Application Firewall Pattern

• Intent
• To filter calls and responses to/from
  user-defined applications, based on an
  institution access control policies.
• Aka
• Content Firewall

6
The Application Firewall Pattern

• Context
• User-defined applications executing in
  distributed systems accessed through a local
  network, from the Internet, or from external
  networks.
• Specific security policies have been defined by
  the institution, expressed as authorization
  rules.

7
The Application Firewall Pattern

• Problem
• User-defined applications in an organizations
  internal network are accessed by a broad spectrum
  of users that may attempt to abuse its resources
  (leakage, modification or destruction of data).
• These applications can be numerous, thus
  implementing access control independently for
  each of them may make the system more complex,
  and thus less secure.
• Traditional network firewalls (application layer
  firewalls or packet filters), do not make it
  possible to define high level rules (role-based
  or individual-based rules) that could make the
  implementation of business security policies
  easier and simpler.

8
The Application Firewall Pattern

• Forces
• There may be many users (subjects) that need to
  access an application in different ways the
  firewall must adapt to this variety.
• There are many ways to filter, we need to
  separate the filtering code from the application
  code.
• There may be numerous applications, that may
  require different levels of security.
• The business policies are constantly changing and
  are constantly updated hence it should be easy
  to change the firewall configuration.
• The number of users and applications may increase
  adding more users or applications should be
  done transparently and at low cost.

9
The Application Firewall Pattern

• Solution
• A client can access a service of an application
  only if a specific policy authorizes it to do so.
• Policies for each application are centralized
  within the Application Firewall, in a
  PolicyDefinitionPoint.
• Each application is accessed by a client through
  a PolicyEnforcementPoint, that enforces the
  access control for the applications.
• Enforcement includes authenticating the client
  through its identity data stored in the
  PolicyDefinitionPoint and looking for a mapping
  policy for the request.

10
The Application Firewall Pattern
11
The Application Firewall Pattern

• Dynamics Filtering a Clients Request

12
The Application Firewall Pattern

• Dynamics Adding a new Policy

13
The Application Firewall Pattern

• Consequences
• Advantages
• The institution policies to control access are
  easily defined and administered, as the policies
  are centralized. This makes the whole system less
  complex, and thus more secure.
• This facilitates the detection of possible
  attacks. An Intrusion Detection System can be
  combined with this firewall. In turn, the IDS can
  help the firewall block suspicious requests.
• The firewall lends itself to a systematic logging
  of incoming and outgoing messages.
• As authentication of Clients is performed, it
  holds regular users responsible of their actions.
• New applications are easily integrated into the
  system by adding their specific policies.
• New clients can de accommodated by adding new
  policies to the policy base of an application.

14
The Application Firewall Pattern

• Consequences
• Possible liabilities
• The application could affect the performance of
  the protected system as it is a bottleneck in the
  network. This can be improved by considering the
  firewall a virtual concept and using several
  firewalls for implementation.
• The solution is intrusive for existing
  applications that already implement their own
  access control.
• The application itself must be built in a secure
  way or normal access to commands could allow
  attacks through the requests.
• We still need the Operating System to be secure.

15
The Application Firewall Pattern

• Implementation
• Define users.
• Define policies for the institution and hold
  policy base (Use Case 2).
• Add/Remove policies when needed

16
The Application Firewall Pattern

• Known Uses
• Cerebit innerGuard
• Netegrity SiteMinder
• Reactivity XML Firewall
• Vordel XML security server
• Westbridge XML Message Server
• Netegrity TransactionMinder

17
The Application Firewall Pattern

• Related Patterns
• The Authorization pattern defines the security
  model for the Application Firewall.
• The Role-Based Access Control pattern, a
  specialization of the authorization pattern, is
  applicable if the business policies are
  respectively defined in terms of roles and rights
  .
• The Application Firewall pattern is a special
  case of the Single-Point of-Access.

18
The XML Firewall Pattern

• Intent
• To filter XML messages to/from user-defined
  applications, based on the business access
  control policies and the content of the message.
• Context
• User-defined applications executing in
  distributed systems accessed through a local
  network, from the Internet, or from external
  networks.
• These applications communicate through XML
  messages and could be web services or
  applications using web services.
• Specific security policies have been defined by
  the institution, expressed as authorization
  rules.

19
The XML Firewall Pattern

• Problem
• Some user-defined applications use tunneling into
  authorized flows (HTTP, SMTP,) to communicate
  with the outside. They use higher level protocols
  such as SOAP and communicate through XML
  documents.
• The XML documents in these messages can contain
  harmful data and can be used to perform attacks
  against applications.
• Network firewalls provide infrastructure security
  but become useless when these high level
  protocols and formats are used.

20
The XML Firewall Pattern

• Forces
• Document formats are subject to change, some new
  ones may appear (XML dialects) the firewall must
  adapt easily to these changes.
• New types of harmful data may be used by
  attackers, the firewall must adapt easily to
  these new types of attacks.
• There are many ways to filter, we need to
  separate the filtering code from the application
  code.
• There may be numerous applications, that may
  require different levels of security.
• New applications may be integrated into the
  system after the firewall has been put into
  operation. This integration should not require
  additional costs.

21
The XML Firewall Pattern

• Solution
• A client can access a service of an application
  only if a specific policy authorizes it to do so
  and if the content of the message sent is
  considered to be safe for the applications.
• Policies for each application are centralized
  within the Application Firewall, in a
  PolicyDefinitionPoint.
• Each application is accessed by a client through
  a PolicyEnforcementPoint, that enforces the
  access control for the applications, by
• authenticating the client through its identity
  data stored in the PolicyDefinitionPoint
• looking for a mapping policy for the request
• checking the content of the message Its
  structure is validated through a database of
  valid XML schemas, and the data it conveys is
  checked through a HarmfulDataDetector.

22
The XML Firewall Pattern
23
The XML Firewall Pattern

• Dynamics Filtering a Clients Request

24
The XML Firewall Pattern

• Consequences
• Additional advantage
• Provides a higher level of security than the
  Application Firewall because it inspects the
  complete XML message (This only applies to XML
  messages).
• Possible liabilities
• The application could to affect the performance
  of the protected system as it is a bottleneck in
  the network, and as the XML content checking may
  create a large overhead.
• The solution is intrusive for existing
  applications that already implement their own
  access control.

25
The XML Firewall Pattern

• Known Uses
• Reactivitys XML Firewall
• Vordels XML Security Server
• Netegritys TransactionMinder

26
The XML Firewall Pattern

• Related Patterns
• Application Firewall
