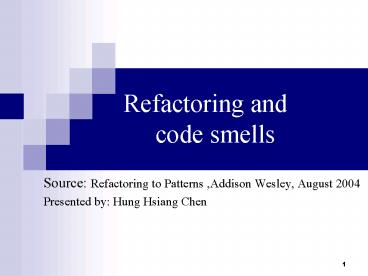

Refactoring and code smells

1
Refactoring and code smells

• Source Refactoring to Patterns ,Addison Wesley,
  August 2004
• Presented by Hung Hsiang Chen

2
Outline

• Introduction
• Code smells list
• Example
• Duplicated Code

3
Introduction

• What is refactoring?
• Refactoring is a "behavior-preserving
  transformation"
• Martin Fowler defines it, "a change made to the
  internal structure of software to make it easier
  to understand and cheaper to modify without
  changing its observable behavior"

4
What Motivates Us to Refactor?

• Make it easier to add new code.
• Improve the design of existing code.
• Gain a better understanding of code.
• Make coding less annoying.

5
Refactoring other support method

• Many Eyes
• Human-Readable Code
• Keeping It Clean
• Small Steps
• Design Debt
• Evolving a New Architecture

6
Composite and Test-Driven Refactorings

• Composite refactorings
• Composite refactorings are high-level
  refactorings composed of low-level refactorings.
  Much of the work performed by low-level
  refactorings involves moving code around.
• A test-driven refactoring
• applying test-driven development to produce
  replacement code and then swap out old code for
  new code.

7
Composite Refactoring

• The Benefits of Composite Refactorings
• They describe an overall plan for a refactoring
  sequence.
• They suggest nonobvious design directions.
• They provide insights into implementing patterns.

8
Code smell

• 12 smells and some refactorings to consider when
  you want to remove the smells.

Alternative Classes with Different Interface
Lazy Class Large Class Switch Statements
Combinatorial Explosion Oddball Solution
Duplicated Code Long Method Conditional
Complexity Primitive Obsession Indecent
Exposure Solution Sprawl
9
Example

• Replace Constructors with Creation Methods
• Chain Constructors

10
Replace Constructors with Creation Methods
11
Mechanics

• 1. Find a client that calls a class's constructor
  in order to create a kind of instance. Apply
  Extract Method on the constructor call to produce
  a public, static method. This new method is a
  creation method. Now apply Move Method to move
  the creation method to the class containing the
  chosen constructor.Compile and test.
• 2. Find all callers of the chosen constructor
  that instantiate the same kind of instance as the
  creation method and update them to call the
  creation method.Compile and test.

12

• 3. If the chosen constructor is chained to
  another constructor, make the creation method
  call the chained constructor instead of the
  chosen constructor. You can do this by inlining
  the constructor, a refactoring that resembles
  Inline Method.Compile and test.
• 4. Repeat steps 13 for every constructor on the
  class that you'd like to turn into a Creation
  Method.
• 5. If a constructor on the class has no callers
  outside the class, make it non-public.Compile.

13

• 1. first step is to find a client that calls one
  of Loan's constructors.

14

• apply Extract Method on that call to produce a
  public, static method called createTermLoan

15

• apply Move Method on the creation method,
  createTermLoan, to move it to Loan.

16

• 2. Next, I find all callers on the constructor
  that createTermLoan calls, and I update them to
  call createTermLoan.

17

• 3. The createTermLoan method is now the only
  caller on the constructor. Because this
  constructor is chained to another constructor, I
  can remove it by applying Inline Method

18

• 4. Now I repeat steps 13 to produce additional
  creation methods on Loan.

Passing in null values to a constructor is bad
practice. It reduces the code's readability. It
usually happens because programmers can't find
the exact constructor they need, so instead of
creating yet another constructor they call a more
general-purpose one.
19
(No Transcript)
20
(No Transcript)
21

• 5. The last step is to change the visibility of
  the only remaining public constructor, which
  happens to be Loan's catch-all constructor. Since
  it has no subclasses and it now has no external
  callers, I make it private

22
Chain Constructors

• You have multiple constructors that contain
  duplicate code.
• Chain the constructors together to obtain the
  least amount of duplicate code.

23
(No Transcript)
24
Mechanics

• 1. Find two constructors that contain duplicate
  code. Determine whether one can call the other
  such that duplicate code can be safely (and,
  hopefully, easily) deleted from one of these
  constructors. Then make the one constructor call
  the other constructor such that duplicate code is
  reduced or eliminated.Compile and test.
• 2. Repeat step 1 for all constructors in the
  class, including ones you've already touched, in
  order to obtain as little duplication across all
  constructors as possible.
• 3. Change the visibility of any constructors that
  may not need to be public.Compile and test.

25
(No Transcript)
26

• 1. I study the first two constructors. They do
  contain duplicate code, but so does that third
  constructor. I consider which constructor it
  would be easier for the first constructor to
  call. I see that it could call the third
  constructor with a minimum amount of work. So I
  change the first constructor

27

• 2. I repeat step 1 to remove as much duplication
  as possible. This leads me to the second
  constructor.
