AthensShibboleth Integration

1

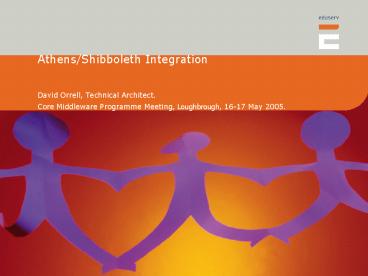

Athens/Shibboleth Integration

• David Orrell, Technical Architect.
• Core Middleware Programme Meeting, Loughbrough,
  16-17 May 2005.

2
Overview

• Intro What does project consist of?
• Shibboleth-Athens gateway
• SAML-Athens gateway
• Demonstration
• AthensIM
• Athens-Shibboleth gateway
• Roadmap

3
Project components

• Roadmap set out in Athens Next Generation
  whitepaper, published in September 2004
• http//www.athensams.net/shibboleth/athens_ng_scop
  ing_1.0.pdf
• Shibboleth-Athens gateway
• Shibboleth IdPs -gt Athens Service Providers
• SAML-Athens gateway
• SAML-compliant IdPs -gt Athens Service Providers
• Athens Identity Manager (AthensIM)
• Fully Shibboleth 1.2 compatible IdP
• Athens-Shibboleth gateway
• Athens Service -gt Shibboleth IdPs

4
What does this look like?
Meta- searching
Portal (eg. MyAthens)
5
Shibboleth to Athens

• Goal is to allow Shibboleth IdPs to connect to
  existing Athens Service Providers
• Give Shibboleth IdPs access to a wide range of
  currently available resources
• No change required for Service Providers who have
  implemented Athens
• Athens becomes a Shibboleth Service Provider in
  its own right

6
How does it work?

• Shibboleth IdP is treated as an entirely devolved
  identity space from conventional Athens
• Shibboleth auth occurs between IdP and Athens
  gateway
• Athens requests attributes for user from
  Shibboleth IdP
• Athens infrastructure behaves as a Shibboleth 1.2
  Service Provider
• attributes used to establish Athens session
• attributes may be passed to Athens DSPs

7
What does this look like?
Organisation
- Shibboleth IdP
Athens Agent
- usernames - attributes
8
Attributes

• Attributes can be used to assist authorisation
• Attributes passed from IdP to Athens are held
  within the users Athens session
• destroyed when session is closed or expired
• MAY be passed to DSPs, subject to ARP
• Athens provides consistent set of attributes
• aids compatibility with Athens resources
• eg. organisation identifier, name

9
Authorisation

• Athens resources MAY authorise by
• Athens resource attribute (cf. eduPersonEntitlemen
  t)
• users own attributes
• link to customer database
• Gateway supports two methods for allocating
  Athens resources
• default set of resources for organisation (does
  not require special attributes)
• permission set(s) passed to Athens via attributes
  (maps user to role in Athens)
• Desired policy is defined at time of registration

10
Persistent identifiers

• The gateway does not require a persistent
  identifier to be passed to Athens
• users can remain fully anonymous within Athens
• BUT Service Providers probably do!
• If a persistent ID is not passed
• requests from Service Providers for persistent
  identifiers will fail
• read/write requests on a users personal profile
  will also fail
• Persistent identifiers can be passed as an
  attribute to Athens
• eg. eduPersonTargetedID

11
Federations

• Organisations wishing to use gateway will
  probably already use Athens
• have agreed to TCs for usage of the Athens
  service
• is current requirement for Athens
• Connection to the gateway for production use will
  require strict compliance with the TCs and
  security policy
• membership of the Athens UK Federation
• organisations will be listed in the Athens WAYF
  and membership lists
• Organisations wishing to evaluate and test the
  service may join the Athens Touchstone
  Federation
• can only gain access to test resources through
  the gateway
• minimal TCs
• access to own WAYF

12
Registration

• Need to register in order to use gateway
• HS/AA URLs
• Handle Assertion signing cert must be securely
  registered
• Choose authorisation policy
• Nominate attribute to use as persistent ID
• May upload CSR requests to Athens CA
• Athens requires that AA server cert is signed by
  a recognised root CA, currently
• Thawte Server CA
• Verisign Class 3 CA
• GlobalSign Root CA
• Athens CA

13
SAML to Athens gateway

• Principle is exactly the same as Shibboleth
  gateway
• Athens supports assertions via SAML Artifact or
  POST profiles
• Attribute, authorisation and registration
  requirements are exactly the same as with
  Shibboleth
• Proven to work with Novell iChain 2.3
• integration document available
• out of the box solution
• supports both LAA and HDD mode (cf. Athens DA)
• Available for trial now

14
Demonstration

• Demo of Shibboleth-Athens demo available at
• http//demo1.athensams.net
• Can do demo of iChain-Athens connection on request

15
Athens Identity Manager (AthensIM)

• What is it?
• SAML identity provider supporting the Shibboleth
  profile
• Shibboleth 1.2 compatible
• 100 Java
• GPL licensed
• What does it require?
• same requirements as Shibboleth software
• servlet container Apache/IIS (optional)
• SSO and attribute repository
• works with Jetty 4.2.x, Tomcat 4.x/5.x

16
AthensIM (2)

• Why have Eduserv developed it?
• Ground-up implementation of SAML IdP based on new
  architecture
• Designed to be clean to configure and easy to
  support
• Can be downloaded with pre-configured servlet
  container
• Full and detailed documentation and integration
  guide
• Provides greater choice for organisations
  implementing a Shibboleth-compatible IdP
• Designed with extensibility in mind, especially
  addition of configuration and install GUIs

17
What does AthensIM offer?

• Uses a flexible attribute processing chain
• Attribute requests pass through chain to
  retrieve, manipulate and release attributes
• Conceptually easy to understand
• Very extendable
• Very flexible
• Full support for multiple Federations
• Federations can be separated functionally and
  conceptually

18
Extensibility

• AthensIM comes with 10 attribute processors
• support for LDAP, SQL and XML attribute stores
• targeted ID generator
• name and values may be mapped based on rules
• separate rule-sets can be applied to different
  Service Providers or users
• attributes may be released on a per-provider or
  per-role basis
• pluggable API so very easy to write your own!

19
Support

• Integration support is available for JISC-funded
  organisations and projects
• AthensIM_at_eduserv.org.uk
• Can be downloaded from
• http//www.athensams.net/shibboleth/AthensIM

20
Athens-Shibboleth Gateway

• Reverse of what weve previously talked about!
• allows Athens users to connect to Shibboleth
  Service Providers
• Athens behaves as a Shibboleth IdP
• Attributes delivered via a Shibboleth attribute
  query rather than via Athens Agent

21
What does this look like?
Resource
Organisation
Athens

• organisations
• usernames
• access policy

- user registry
Shib. protocol
Shibboleth IdP
22
How will this work?

• Athens will act as an attribute store, SSO, and
  Shibboleth compatible IdP
• Integration of production system will be seemless
• Authentication point will detect type of resource
  user is attempting to access (Shibboleth or
  Athens)
• From users point of view, authentication to
  Shibboleth resource will not look any different
  from existing Athens resource

23
Availability

• Service will be made available in two stages
• Initial trial service will be based on Shibboleth
  1.2 protocol
• Will NOT be production service
• Will be fully functional and suitable for testing
  and evaluation
• Production service will be available at the same
  time as the next major release of the Athens
  Agent (v4.0)
• The core Athens service, including Agent will
  have full SAML support (inc. assertion
  generation)
• Will have Shibboleth compatibility mode
• Will have ARP management interfaces
• Will be maintained to current Athens service
  levels
• Will run on geographically dispersed
  infrastructure, redundancy, load balanced

24
Development roadmap 2005
2005
2006
May
June .
Q4
Sep .
Shibboleth- Athens gateway launched
Classic Athens to Shibboleth Gateway
(trial) SAML-Athens gateway launched (trial)
Attribute release policy interfaces for
central Athens
Agent version 4 release Classic Athens To
Shibboleth Gateway launched
