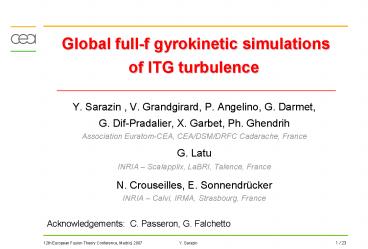

Title: Global fullf gyrokinetic simulations of ITG turbulence


1
Global full-f gyrokinetic simulationsof ITG
turbulence
  • Y. Sarazin , V. Grandgirard, P. Angelino, G.
    Darmet,
  • G. Dif-Pradalier, X. Garbet, Ph. Ghendrih
  • Association Euratom-CEA, CEA/DSM/DRFC Cadarache,
    France
  • G. Latu
  • INRIA Scalapplix, LaBRI, Talence, France
  • N. Crouseilles, E. Sonnendrücker
  • INRIA Calvi, IRMA, Strasbourg, France

Acknowledgements C. Passeron, G. Falchetto
2
Physics of global full-f gyrokinetic models
  • Global code (? flux-tube)
  • Large scale transport events
  • Boundary conditions
  • Numerical challenge
  • Full-f code (? df )
  • Equilibrium Fluctuations no scale separation
    assumption
  • Profile relaxation ? statistical steady state
    requires
  • prescribed driving flux
  • Neoclassical theory
  • Outline 1. Physics of the gyrokinetic
    equilibrium
  • 2. Transport scaling with r with a global
    full-f code
  • 3. Towards flux-driven model

3
GYSELA-5D a GYrokinetic SEmi-LAgrangian code
  • Standard gyrokinetic equation F(r,q,j,v//,m,t)
    f(r,q,j,t)
  • Vlasov d/dt F 0
  • Quasi-neutrality Se,i ? F d3p 0 (
    adiabatic electrons)

Poster P.Angelino et al., "Effects of plasma
elongation on drift wave-zonal flow turbulence"
4
Parallelisation is challenging
Poster G. Latu et al., "Parallelization of a
full-f semi Lagrangian code GYSELA"
  • Challenging parallelisation in GYSELA
  • Eulerian ? domain decomposition
  • semi-Lagrangian ? loss of locality due to
    interpolation
  • (domains communicate)
  • Much memory per node (10 Go at r2.10-3)
  • ? "MPI OpenMP" parallelisation
  • Limitating factor communications between procs.
  • ? powerful interconnection is essential

5
An efficient parallelisation
Poster G. Latu et al., "Parallelization of a
full-f semi Lagrangian code GYSELA"
  • Time splitting numerical scheme
  • 2 ? 1D advection in v on Dt/2
  • 2 ? 1D advection in on j Dt/2
  • 1 ? 2D advection in (r,q) on Dt
  • Electro-neutrality "Poisson solver"

6
Gyrokinetic equilibrium poloidal flows
  • Gyrokinetic equilibrium without collisions
  • ?F /?t 0 Feq FC(anonical) M(axwellian)
  • depends on motion invariants only E, m, Pj

Idomura 03, Angelino 06
7
Any local equilibrium maxwellian drives flows
  • Starting from Local Maxwellian

Up-down (sin q) electric potential
FL(ocal) M(axwellian) ? FC(anonical)
M(axwellian) d/dt F ? 0 electric potential
f Large scale flow f00 ? r2 t2
Polarization
Well understood physics Analytical results agree
with simulations
Dif-Pradalier 07
8
Reduced transport at early time when Finit ? FCM
  • IF Finit FLM ? Turbulent transport delayed
  • by large scale sheared flows
  • Benchmark OK for canonical equilibrium

9
Turbulence scaling with r
  • Motivations Empirical scaling law wctE ? ??2.8
  • ?ITER ? 2.10?3 not accessible to present day
    experiments
  • Consistent with
  • gyroBohm scaling
  • H-mode exp. Ions particles gyroBohm
  • McKee 01, Petty02, Hennequin 04

10
Present status of gyrokinetic r scaling studies
Lin 02
  • Transition Bohm ? gyroBohm
  • when r decreases
  • Lin 02, Waltz 02
  • Open issues Transition threshold in r ?
  • Physical mechanism of this transition ?

11
Simulating a fraction of torus only
  • Lj 2p/p ? modes n0, p, 2p, 3p, , N only
    (periodicity)
  • all m
  • Ratio (nb resonant modes / total nb modes) Cst

Top view
  • Validity scales with r
  • n ? kqri / qr ? Nb unstable modes ? (p r)-1

Small fraction of torus (pgtgt1) all the more valid
since r is small
12
Case r1/128 ? OK up to Lj ? 2p / 8
  • Case r1/128
  • Correlation length/time diffusivity start
    deviating for Lj lt 2p / 8

13
Transport scaling with r
Snapshots of electric potential cross-section
Lj 2p
Lj 2p / 2
r2.10-2
Lj 2p / 4
r10-2
  • Decreasing r

r5.10-3
14
lc consistent with Bohm scaling at large r
close to threshold
  • c? lc2 / tc ra cBohm

lc (ari)1/2 ? Bohm (?0) lc ri ? gyroBohm
(?1)
tc a/cs and
15
GyroBohm-like scaling above the threshold
  • lc ri above the threshold
  • ? consistent with gyroBohm
  • Grandgirard '07

Threshold
16
Strategies for driving turbulence
Fixed gradient (scale separation)
Fixed boundaries (thermal bath)
Profile relaxes
  • Turbulence / Equilibrium
  • decoupled

Most present codes
Equivalent if source term sustains mean profile
at t tE
17
Implementing a source term in GYSELA
  • Krook operator df /dt -n(f-feq)
  • Diffusion in buffer regions df /dt ?r D(r) ?r
    f
  • Profile relaxation is reduced

18
Towards a statistical steady-state
n D
  • Krook / Diffusion both efficient in maintaining
    the profile
  • Marginal differences in
  • Zonal Flow magnitude

19
Similar diffusivity, different dynamics
  • D, n ? similar magnitude of diffusivity
  • Consistent with CYCLONE benchmark
  • Asymmetric PDF of heat flux fluctuations ?Q / ?Q?

20
Close to Maxwellian on average
  • Issue
  • w/o collisions does turbulence enforce
    Maxwellian?
  • Given time position ? significant departure
    from Maxwellian
  • Temporal or toroidal average ? f
    Maxwellian-like shape

21
Flux driven reduced 3D kinetic model a paradigm
  • Reduced gyrokinetic model f(E,y,a,t) Depret 00,
    Sarazin 05
  • Goal Sustain a statistical steady-state
  • Mean Heat source in gyrokinetic equation
  • dF /dt S(E,y)
  • Bursty ZF-Turbulence predator-prey model

T
Strong ZF ? Weak turbulence ? Core Temperature ?
fZF
df
22
A heat source drives several fluid moments
  • Decomposition on ortho-normal Laguerre
    polynomials Lk(E)

Lk(E) Fluid description
k0 ? density k1 ? temperature dT k2 ?
... (higher moments)
23
Conclusions
  • Full-f, global, semi-Lagrangian GYSELA code
  • Efficient parallelisation 83 on 4096 proc.
  • Canonical equilibrium
  • Linear non linear benchmarks (R-H theory,
    CYCLONE, ORB5)
  • Large scale sheared flows inherent to FLocal
    Maxwell
  • Evolve like (rt)2 saturate at significant
    level
  • Delay turbulent transport ? makes results
    difficult to interpret
  • Bohm vs. gyroBohm depends on r distance to
    threshold
  • Flux-driven gyrokinetics towards statistical
    steady-state

24
Various strategies for gyrokinetic codes
Eulerian Particle-in-Cell (PIC) Dissipation Nois
e ? ? high order scheme df optimized loading
Full-f df
Flux-tube Global small scale structures large
scale events
GS2 code
25
GYSELA full-f code for toroidal ITG turbulence
  • Standard gyrokinetic equation f(r,q,j,v//,m,t)
    f(r,q,j,t)

"Vlasov"
Electro- neutrality
  • Linear benchmark with other codes (CYCLONE)

after Dimits 00
26
ZF linearly undamped in collisionless regime
E-folding decay GAM oscillations Residual
magnitude Consistent with theory Rosenbluth-Hinto
n 98, Sugama-Watanabe '07
Initial poloidal flow (m,n)(0,0) shielded by
finite orbit width effects
Sideband coupling Undamped GAMs
(m,n)(?1,0) component Landau-damping Zonal Flow
27
Transport strongly reduced by poloidal flows
  • Prescribing f00(r,t)0 ? Vanishing poloidal
    flows
  • zonal (??0) mean (?0) flows
  • When poloidal flows are present
  • c? reduced by a factor of 3-4
  • c? consistent with CYCLONE base case

after Dimits 00
28
Poloidal flows significantly reduce lcorr and
tcorr
  • Two point correlation length/time of potential
    fluctuations
  • lcorr increases by about 30
  • tcorr doubles

when prescribing f00(r,t)0
29
Any local equilibrium maxwellian drives flows
  • Starting from local Maxwellian ? electric
    potential f
  • fs10 sinq excited by curvature
  • Time evolution recovered analytically
  • GAM frequency recovered when accounting for E?B
    drift

30
Poor statistics for correlation time tc
  • c? lc2 / tc ra cBohm

lc/ri ? r-1/2 ? Bohm (?0) lc/ri
Cst ? gyroBohm (?1)
wctc ? r-1 and
31
GyroBohm-like scaling "far" from threshold
Correlation time
  • Correlation length

32
Flux driven reduced 3D kinetic model a paradigm
  • Reduced gyrokinetic model f(E,y,a,t) Depret 00,
    Sarazin 05
  • Goal Sustain a statistical steady-state
  • Mean Heat source in gyrokinetic equation
  • dF /dt S(E,y)
  • Bursty ZF-Turbulence predator-prey model

T(?)
S(?)
Darmet 07
?
33
GYSELA-3D Flux driven Trapped Ion Modes
  • Complex interplay between ZF and Drift Waves
  • Non-gaussian statistics of fluctuations

34
Parallel trapping
