UNet: A UserLevel Network Interface

1

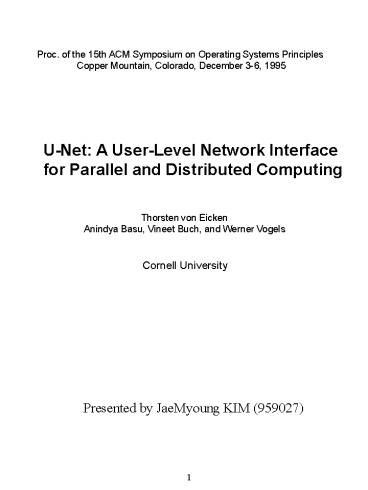

Proc. of the 15th ACM Symposium on Operating
Systems Principles Copper Mountain, Colorado,
December 3-6, 1995
U-Net A User-Level Network Interface for
Parallel and Distributed Computing
Thorsten von Eicken Anindya Basu, Vineet Buch,
and Werner Vogels
Cornell University
Presented by JaeMyoung KIM (959027)
2
Abstract

• U-Net communication architecture
• provide processes with a virtual view of network
  interface to enable user-level access to
  high-speed communication devices
• implemented on workstation using COTS ATM comm.
  HW
• remove the kernel from the comm. path
• provide full protection
• U-Net model
• allow for the construction of protocols at
  user level whose performance is only limited by
  the capabilities of network
• flexible in the sense that TCP, UDP, and AM can
  be implemented efficiently
• U-Net prototype
• 8-node ATM cluster of standard workstations
• 65 ms round-trip latency
• 15 MB/s bandwidth 120 Mbps
• TCP performance at max network bandwidth
• performance equivalent to CS-2 and CM-5
  supercomputers on a set of Split-C benchmarks

3
Introduction

• Bottleneck shift
• the limited bandwidth of network fabrics -gt
  software path
• the kernel involves several copies and crosses
  multiple levels of abstraction
• elude the per-message overhead and concentrate on
  peak bandwidths of long data streams
• video playback
• DSM, RPC, remote object-oriented method
  invocations, and distributed cooperative file
  caches system
• Integrating application specific information into
  protocol processing
• allows for higher efficiency and greater
  flexibility in protocol cost management.
• move parts of the protocol processing into user
  space
• be able to efficiently utilize the network and to
  couple the communication and computation
  effectively
• Goals
• to remove the kernel completely from the critical
  path
• to allow the communication layers used by each
  process to be tailored to its demands
• Key issues
• multiplexing the network among processes
• providing protection
• managing limited communication resources
• designing an efficient yet versatile programming
  interface
• U-Net architecture on an off-the-shelf hardware
  platform

4
Motivation and related work

• U-Net architecture focusing
• provide low-latency communication in local
  settings
• exploit the full network bandwidth with small
  messages
• facilitate the use of novel communication
  protocols
• low communication latencies
• processing overhead network latency
• end-to-end latency
• for large messages transmission time
• for small messages processing overhead
• example
• OO technology 100 bytes
• electronic workplace req - 20 80 , rep -
  40200
• caching techniques in modern distributed system
• multi-round protocol
• RPC style of interaction
• rfs NFS traffic - 200 bytes
• networks of workstations
• small-message bandwidth
• provide full network bandwidth with as small
  messages as possible

5

• Communication protocol and interface flexibility
• lack of support for the integration of kernel and
  application buffer management -gt high processing
  overheads
• new protocol design technique
• Application Level Framing
• Integrated Layer
• Compiler assisted protocol development
• blocking RPC
• pre-allocate memory for the reply
• Towards a new networking architecture
• to simply remove the kernel from the critical
  path of sending and receiving messages
• system call overhead streamline the buffer mgt
  at user level
• approach
• to mux/demux directly into the network interface
  (NI)
• to move all buffer mgt and protocol processing to
  user-level
• goals
• selecting a good virtual NI abstraction to
  present to processes
• providing support for legacy protocols
• enforcing protection without kernel intervention

6

• Related work
• message demultiplexor in the microkernel for
  Mach3 OS
• application device channel abstraction at Univ.
  of Arizona
• HP Bristol
• CM-5, CS-2, SP-2, T3D
• custom hardware and are somewhat constrained to
  the controlled environment of a multiprocessor
• Successive simplifications and generalizations of
  shared memory
• Shrimp memory-based network access model
• legacy protocols, long data streams, or rpc
• U-Net design goals
• focus on low latency and high bandwidth using
  small messages
• the emphasis on protocol design and integration
  flexibility
• the desire to meet the first two goals on widely
  available standard workstations using
  off-the-shelf communication hardware.

7
The user-level NI architecture

• Sending and receiving messages
• three main building blocks
• endpoints virtual device interface
• communication segments
• message queues holds descriptor for messages

• Sending messages
• user constructs msg in buffer area, pushes Tx
  descriptor onto send queue
• receiving messages
• Msg arrives, data in buffer from from queue, Rx
  descriptor pushed onto recv queue
• polling block waiting
• event-driven upcall registration
• Rx Q is non-empty or almost full
• all messages pending disable upcall by processes

8

• Multiplexing and demultiplexing messages
• use a tag depends on the network
  substrate(ATM-VCI)
• parallel-process id tag
• operating system service
• determining the correction tag
• route discovery, switch path setup, etc
• necessary authentication and authorization checks
• endpoints and communication channels
• protection boundaries among multiple processes
• extended boundaries across the network
• Zero-copy vs. true zero-copy
• data can be sent/arrived directly the application
  data structures without intermediate buffering
• I/O bus addressing NI functionality
• base-level U-Net architecture one copy
• not support the memory mapping
• copy cost is not a dominant factor
• direct-access U-Net architecture
• specify an offset the destination communication
  segments
• Base-level U-Net architecture

9
Two U-Net implementations

• U-Net using the SBA-100
• operates using programmed I/O to store cells into
  a 36-cell deep output FIFO and to retrieve
  incoming cells from a 292-cell deep input FIFO
• HW CRC calculation
• no DMA, no payload CRC calculation
• implemented in the kernel by providing emulated
  U-Net endpoints to the applications
• a loadable device driver
• user-level library implementing the AAL5 SAR
  layer
• evaluation
• two 60Mhz SPARCstation-20s running SunOS 4.1.3
• 140Mbit/s TAXI fibers leading to a Fore ASX-200

• end-to-end round-trip time of a single-cell
  message 66ms
• bandwidth 6.8MBytes/s(54.4Mbps) for packets of
  1KBytes

• U-Net using the SBA-200
• uses custom firmware to implement the base-level
  architecture directly on the SBA-200
• SBA-200
• a 25Mhz Intel i960 processor, 256Kbytes of memory
• a DMA-capable I/O bus (Sbus) interface
• a simple FIFO interface to the ATM fiber , an
  AAL5 CRC generator

10

• poor Fore firmware operation and performance
• measured round-trip time approximately 160ms
• max bandwidth 13Mbytes/sec. using 4Kbyte
  packet(15.2Mbytes/sec peak fiber bandwidth.)
• message data structure too complex
• off-load backfired
• modification considerations
• to virtualize the host-i960 interface such that
  multiple user processes can communicate with the
  i960 concurrently
• to minimize the number of host and i960 accesses
  across the I/O bus directly
• Performance
• round-trip time
• 65ms for a one-cell message due to the
  optimization
• Longer messages start at 120ms for 48 bytes and
  cost roughly an extra 6ms per additional cell
  (i.e., 48 bytes)
• bandwidth
• Mbytes/sec for message sizes varying from 4 bytes
  to 5Kbytes
• packet sizes as low as 800 bytes, the fiber can
  be saturated
• Dynamic allocation of DMA address space
• challenging problem (efficiently and simply)

11
U-Net AM implementation performance

• Generic Active Messages (GAM) 1.1 specification

• a set of primitives
• initialize the GAM interface
• send request and reply messages
• perform block gets and stores.
• provide reliable message delivery
• AM
• low-cost RPC mechanism for parallel machines
• header of message is user-space address of msg
  handler
• provides reliable message-passing and flow
  control
• Four different micro-benchmarks
• single-cell round trip time
• start at 71ms over raw U-Net is about 6ms
• block transfer round-trip time
• 135ms N 0.2ms
• per-byte cost is higher than for Raw U-Net
• block store bandwidth
• 80 of the AAL-5 limit with blocks of about
  2Kbytes.
• dip in performance at 4164 bytes

12
Split-C application benchmarks

• Split-C
• novel parallel language based on C
• use of global pointers to access other proc addr
  space
• assumes homogeneous address space across all
  nodes
• implemented over AM

• seven programs
• matrix multiply
• uses matrices of 4x4 blocks with 128x128 double
  floats
• The main loop multiplies two blocks while it
  prefetches the two blocks needed in the next
  iteration
• CPU, bandwidth
• small message, bulk transfers

13
TCP/IP and UDP/IP protocols

• bandwidth and latency as a function of appl.
  message size.
• poor performance of kernelized UDP and TCP
  protocols in SunOS with the vendor supplied ATM
  driver
• max bandwidth of UDP gt 8KB
• max achievable bandwidth of TCP not more than
  55
• round-trip latency
• small size lower than Ethernet

• TCP and UDP over U-Net implementation
• implemented for U-Net using the base-level U-Net
  functionality
• close to the raw U-Net performance limits
• goals
• to support the implementation of traditional
  protocols
• to create a test environment for traditional
  benchmarks
• no need of secure U-Net multiplexor
• a single channel to carry all IP traffic between
  two applications
• protocol execution environment
• TCP/IP suite of protocols over high-speed network
• particular implementation integration into OS
• Fore driver software
• generic low-performance buffer strategies of the
  BSD based kernel
• use of generalized buffer and timer mechanisms

14

• Message handling and staging
• remove all copy operations from the protocol path
• allows for the buffering and staging strategies
  to depend on the of the application instead of
  the scarce kernel network buffers

• the restricted size of the socket receive buffer
• max. 52Kbytes in SunOS
• deficiencies in the BSD kernel buffer (mbuf)
  mechanism
• Saw-tooth behavior
• alternative kernel buffering scheme
• removing kernel-application copies ???
• scatter-gather message mechanism

• Application controlled flow-control and feedback
• integration of the comm. subsystem into the
  application
• the state of the transmission queues
  back-pressure mechanism
• retransmission counters, round-trip timers,
  buffer allocation statistics, etc
• IP
• IP over U-Net MTU 9KB
• UDP
• additional layer of demultiplexing over IP based
  on ports ids
• some protection against corruption with a 16-bit
  checksum
• TCP
• reliability a simple acknowledge scheme
• flow control the use of advertised receive
  windows

15

• Bandwidth
• U-Net TCP 14-15 MB/s an 8Kbyte window
• kernel TCP/ATM combination 10 MB/s with a 64K
  window

• TCP tuning
• TCP over high-speed networks thru WAN - high
  latency
• tuning factors
• size of the segments that are transmitted
• 2048 byte segments
• growth of the window size
• bad ratio between the granularity of the protocol
  timers and the round-trip time estimates.
