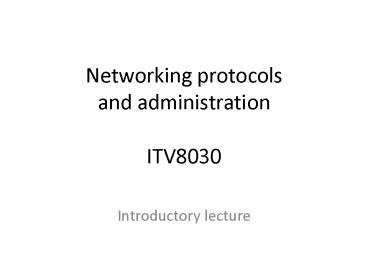

Networking protocolsand administrationITV8030

• Introductory lecture

2
Intro lecture plan

• Goals of the course, materials, etc
• Defence motivation brief overview of DOS
• Refresher
• Protocol layers
• ISO-OSI general protocol stack
• Internet protocol stack
• Internet addresses
• Layers
• Reserved and special addresses
• Private networks
• Subnets
• CIDR

3
Goals of the course

• Learn core internet standards/protocols
• Addressing
• IP
• TCP, UDP
• ICMP, ARP, DHCP, ...
• Learn how crucial methods work routing, NAT,
  firewalls, ...
• Learn some network administration

4
Not in the course scope

• Communication physics frequencies, ...
• Underlying low-level comms ATM, Wifi, ...
• Upper-level application protocols http, ftp, ...
• Cryptography
• Actual defence

5
Who creates internet standards?

• Application level (not in course scope)
• W3C
• major software vendors
• Internet level (data transmission, this course)
• IETF (internet engineering task force)
• Internet Architecture Board (IAB), IASA, IRTF,
  ...
• major router vendors
• administrative organisations (IANA, RIPE, ...)

6
Course organisation

• Lectures
• Practical work
• Detailed plan of lectures and labs will be
  created/tuned during the course, depending on
• Background of students
• Speed of grasping the principles
• Progress of labs

7
Background assumptions

• Passed a wide-scope networking course (f.ex based
  on Stallings)
• Passed a mid-level programming course
• Passed system administration course (Kääramees)
• Highly recommended passed a C course

8
Materials

• Course web site www.lambda.ee/index.php/Andme
  side_protokollid
• Will use several
• Books
• Materials on web (wikipedia, RFC-s, ...)
• Course materials (ppt, pdf) from CISCO and other
  universities
• Recommended books
• C. Hunt "TCP/IP network administration"
• D.Comer, S.Stevens "Internetworking with TCP/IP"
• Stallings "Data and computer communications"

9
Requirements for passing

• Exam lab results
• Details will be determined during April,
  depending on student background and progress

10
Security-oriented motivation

• Crucial security issues depend on protocol
  details
• DOS uses TCP SYN flood, etc
• Most attacks use spoofing
• ...
• Countermeasures and administration requires
  detailed understanding of
• protocols
• core techniques

11
Denial of service example

• Currently prevailing attack type DOS attack
• A set of attacks intended to consume the
• resources of a remote host or network, thereby
• denying or degrading service to legitimate users
• Let us see some excerpts from DOS attack
  explanations just for basic motivation

12
Attack classification

• System Attacked
• Firewall, Router, Load Balancer, WEB Server,
  DBs
• Part of the System Attacked
• Network Card, CPU, Storage
• Operating System, TCP/IP Stack
• Bug or Overload
• Bugs, Configuration Error

13
DOS attack taxonomy
14
Flooding DOS attacks
15
SYN attack based on TCP

• Recent experiments shown that
• SYN attacks with rate of only 500 SYN packets per
  second are enough strong to overwhelm a server
• Even a specialized firewall, which is designed to
  resist SYN floods, becomes futile under a flood
  of 14,000 packets per second

16
some SYN stats

• Graph analysis
• 50 of attacks are less than 10 minutes
• 80 are less than 30 minutes
• 90 last less than an hour
• Most of the DoS attacks are not likely last long
• Duration in interval 3- 30 minutes

17
SYN attack idea (TCP-based)

• SYN Flooding
• Using the Three-way handshake mechanism of TCP
• gt During 75 seconds of half-open state,
• gt Limited number of half-open connections per
  port
• maintained by Memory backlog queue.
• As long as backlog queue limit is reached,
  discard new connection requests from any clients
• Usually SYN packet has spoofed source address
• gt A victim server never receives the final
  ACK packet,
• gt Keep waiting until the times up.

18
SMURF attack idea (ICMP-based)

• Smurf
• Using a forged ICMP Echo Request packet
• gt Three parties A attacker, Intermediary,
  A victim
• gt Setting source address by targeting machine
  address,
• gt ICMP type field as 8, and broadcast to
• intermediary network.
• After receiving a redirected ICMP Echo Request,
  each machine of the Intermediary will send ICMP
  Echo reply by setting type field 0 to the
  victim.
• Intermediary also experience unintended heavy
  traffic

19
TEARDROP idea (IP fragmentation)

• Teardrop
• Using a IP fragmentation mechanism
• gt If there is too large packet to be handled
  by next
• router, then divide into fragments.
• gt Each fragment will be identified by offset
  when
• needs to be re-assembly
• gt Attacker put some confusing offset value in
  the
• second or later fragment.
• gt If the receiving O.S. doesnt have plan for
  this
• situation, it cause the system to crash.
• minor effect, a simple reboot will recover the
  system

20
Bad control packets (routing)

• Bad control packets
• A malicious router generates a sequence of bad
  control packets
• Control packets are ordered according to the SN
  such that one is fresher than another and thus
  is formed a cycle
• Because control packets receive a higher priority
  than data packets, routers spent more of their
  time handling these routing updates

21
Black holes (routing)

• Black Holes
• Routers exchange control packets to reflect
  changes, such as topology changes in the network
• A Black Hole router sends out routing updates
  claiming that it is on a zero-cost (or low cost)
  path to all destinations
• Black Hole router drops the packets that receive
  from its neighbors

22
Refresher networking levels

• Applications http, ftp, ...
• Finding addresses DNS
• Creating channel, using ports TCP, UDP
• Sending and routing packets IP, ICMP, ARP, ...
• Local network typically ethernet
• Hardware

23
Protocols/layers

• Slides from Stallings

24
Main comm layering idea

25
Packets and header layers
26
Protocol layers add headers

27
OSI layers
28
OSI layers/headers
29
Internet layers

• Internet layers are not exactly like ISO-OSI
  layers
• Most of the ISO-OSI layers are missing or merged
• Normal internet layers with three headers
• Raw data using application-specific encoding
• TCP or UDP header (ports and control)
• IP header (addressing)
• Ethernet frame header and trailer (local
  network, not wide-area)
• Slides from CISCO

30
History and Future of TCP/IP

• The U.S. Department of Defense (DoD) created the
  TCP/IP reference model because it wanted a
  network that could survive any conditions.
• Some of the layers in the TCP/IP model have the
  same name as layers in the OSI model.

31
Application Layer

• Handles high-level protocols, issues of
  representation, encoding, and dialog control.
• The TCP/IP protocol suite combines all
  application related issues into one layer and
  ensures this data is properly packaged before
  passing it on to the next layer.

32
Application Layer Examples
33
Transport Layer

• Five basic services
• Segmenting upper-layer application data
• Establishing end-to-end operations
• Sending segments from one end host to another end
  host
• Ensuring data reliability
• Providing flow control

34
Transport Layer Protocols
35
Internet Layer
The purpose of the Internet layer is to send
packets from a network node and have them arrive
at the destination node independent of the path
taken.
36
Network Access Layer

• The network access layer is concerned with all of
  the issues that an IP packet requires to actually
  make a physical link to the network media.
• It includes the LAN and WAN technology details,
  and all the details contained in the OSI physical
  and data link layers.

37
Comparing the OSI Model and TCP/IP Model
38
Similarities of the OSI and TCP/IP Models

• Both have layers.
• Both have application layers, though they include
  very different services.
• Both have comparable transport and network
  layers.
• Packet-switched, not circuit-switched, technology
  is assumed.
• Networking professionals need to know both
  models.

39
Differences of the OSI and TCP/IP Models

• TCP/IP combines the presentation and session
  layer into its application layer.
• TCP/IP combines the OSI data link and physical
  layers into one layer.
• TCP/IP appears simpler because it has fewer
  layers.
• TCP/IP transport layer using UDP does not always
  guarantee reliable delivery of packets as the
  transport layer in the OSI model does.

40
Internet Architecture

• Two computers, anywhere in the world, following
  certain hardware, software, protocol
  specifications, can communicate, reliably even
  when not directly connected.
• LANs are no longer scalable beyond a certain
  number of stations or geographic separation.

41
Addressing

• Several kinds of addresses are used in the normal
  internet activities
• MAC address ("ethernet card address", like
  0123456789ab)
• six bytes
• used in a local network
• IP address (like 234.14.189.23)
• four bytes for IPv4, sixteen bytes for IPv6
• used for actual routing of packets worldwide
• mapped to MAC address by ARP and RARP services in
  local system
• Host name (like www.ttu.ee)
• not used for actual routing of packets
• mapped to IP address by the worldwide DNS server
  system

42
Internet addresses

• Basic internet address and related issues
• 4-byte integer
• Every machine on the internet must have a unique
  address to which packets are sent
• IP addresses of a machine may change (f.ex. DHCP)
• Routing is a complex problem, tables grow big
• Every machine has ports (two-byte integer) to
  which applications are connected
• Four-byte addresses are not enough
• Network address translation (NAT) may map/change
  addresses when packet is entering a local system
• Using slides and materials from
• Univ of Virginia / Univ of Toronto
• CISCO
• Wikipedia
• some other presentations

43
IP Address

• An IP address is a 32-bit sequence of 1s and 0s.
• To make the IP address easier to use, the address
  is usually written as four decimal numbers
  separated by periods.
• This way of writing the address is called the
  dotted decimal format.

44
IP Addresses in packets
45
IP Addresses example
46
IP addresses contain two parts

• 4-byte IP address contains two parts
• Network address (routers know how to send packet
  to that network)
• Host number (only local router knows how to send
  data inside local network)
• Three historic phases for hierachy organisation
• Two fixed-length parts (very early) byte 1 (8
  bits) for network, bytes 2-4 (24 bits) for host
• Fixed types (A, B, C, D, E) of network addresses
• Flexible selection of network address and local
  address parts (since 1993)

network prefix
host number
47
Example

• Example ellington.cs.virginia.edu
• Network address is 128.143.0.0 (or 128.143)
• Host number is 137.144
• Netmask is 255.255.0.0 (or ffff0000)
• Prefix or CIDR notation 128.143.137.144/16
• Network prefix is 16 bits long

128.143
137.144
48
Why two parts? For routing!

• Routers must select next hop for packet
• Get route information from other routers via a
  routing protocol (RIP, OSPF, EIGRP etc.)
• Store routing information in a table
• In the simplest form, each network has one entry
  in the table
• Note the following are non-routable
• private networks 10.0.0.0/8, 172.16.0.0/12,
  192.168.0.0/16
• Loopback 127.0.0.0/24

49
Coming up using two address parts

• Next we will cover these addressing issues
• Old-style address splitting A, B, C, D, E
  classes
• Special and reserved addresses
• Private addresses
• Subnetting host number may again be split into
  (local) subnet and host number in this subnet
• Modern address splitting CIDR (classless
  interdomain routing)
• Brief intro to IPv6

50
Internet Address Classes
51
Internet Address Classes

52
Who has A,B,C addresses?

• A class IANA, APNIC, RIPE, legacy (US military,
  Xerox, IBM, Apple, Ford, ...). See
  http//www.iana.org/assignments/ipv4-address-space
  for the full list
• B class organisations with clear need (more than
  32 subnets, more than 4096 hosts) very hard to
  get
• C class all others, assigned hierarchically.
  Lower half of space divided regionally
• 192.0.0 - 193.255.255 Multi-regional
• 194.0.0 - 195.255.255 Europe
• 196.0.0 - 197.255.255 Others
• 198.0.0 - 199.255.255 North America
• 200.0.0 - 201.255.255 Central and South America
• 202.0.0 - 203.255.255 Pacific Rim
• 204.0.0 - 205.255.255 Others
• 206.0.0 - 207.255.255 Others
• 208.0.0 - 209.255.255 ARIN1
• 210.0.0 - 211.255.255 APNIC

53

• Class summary

54
Special IP adresses

• Loopback interfaces (packet sent back to sender)
• all addresses 127.0.0.1 - 127.255.255.255
• Most systems use 127.0.0.1 as loopback address
• loopback interface is associated with name
  localhost
• Test / Experimental addresses
• Certain address ranges are reserved for
  experimental use. Packets should get dropped if
  they contain this destination address (see RFC
  3330)
• 128.0.0.0-128.0.255.255
• 191.255.0.0-191.255.255
• 192.0.0.0-192.0.0.255
• 192.0.2.0-192.0.2.255
• 223.255.255.0-223.255.255.255
• 240.0.0.0-240.0.0.255

55
Reserved IP Addresses

• Certain host addresses are reserved and cannot be
  assigned to devices on a network.
• An IP address that has binary 0s in all host bit
  positions is reserved for the network address.
• An IP address that has binary 1s in all host bit
  positions is reserved for the broadcast address

56
Reserved as private addresses

• These ranges are not routable outside of private
  networks, and private machines cannot directly
  communicate with public networks. They can,
  however, do so through network address
  translation (NAT)
• Name IP address range
  number of IPs largest CIDR block
• 24-bit block 10.0.0.0 10.255.255.255
  16,777,216 10.0.0.0/8
• 20-bit block 172.16.0.0 172.31.255.255
  1,048,576 172.16.0.0/12
• 16-bit block 169.254.0.0 169.254.255.255
  65,536 256 169.254.0.0/16
• 16-bit block 192.168.0.0 192.168.255.255
  65,536 256 192.168.0.0/16
• The ranges 10.0.0.0/8, 172.16.0.0/12, and
  192.168.0.0/16 are reserved for private
  networking by RFC 1918,
• The 169.254.0.0/16 range is reserved for
  Link-Local addressing as defined in RFC 3927.

57
Subnetting

• Problem Organizations have multiple networks
  which are independently managed
• Solution 1 Allocate a separate network address
  for each network
• Difficult to manage
• From the outside of the organization, each
  network must be addressable.
• Solution 2 Add another level of hierarchy to the
  IP addressing structure

University Network
Engineering School
Medical School
Library
58
Address assignment with subnetting

• Each part of the organization is allocated a
  range of IP addresses (subnets or subnetworks)
• Addresses in each subnet can be administered
  locally

University Network
128.143.0.0/16
128.143.56.0/24
Engineering School
Medical School
128.143.71.0/24128.143.136.0/24
Library
128.143.121.0/24
59
Basic Idea of Subnetting

• Split the host number portion of an IP address
  into a subnet number and a (smaller) host number.

• Result is a 3-layer hierarchy
• Then
• Subnets can be freely assigned within the
  organization
• Internally, subnets are treated as separate
  networks
• Subnet structure is not visible outside the
  organization

network prefix
host number
subnet number
network prefix
host number
extended network prefix
60
Subnetmask

• Routers and hosts use an extended network prefix
  (subnetmask) to identify the start of the host
  numbers

61
Advantages of Subnetting

• With subnetting, IP addresses use a 3-layer
  hierarchy
• Network
• Subnet
• Host
• Reduces router complexity. Since external routers
  do not know about subnetting, the complexity of
  routing tables at external routers is reduced.
• Note Length of the subnet mask need not be
  identical at all subnetworks.

62
Example Subnetmask

• 128.143.0.0/16 is the IP address of the network
• 128.143.137.0/24 is the IP address of the subnet
• 128.143.137.144 is the IP address of the host
• 255.255.255.0 (or ffffff00) is the subnetmask of
  the host
• When subnetting is used, one generally speaks of
  a subnetmask (instead of a netmask) and a
  subnet (instead of a network)
• Use of subnetting or length of the subnetmask if
  decided by the network administrator
• Consistency of subnetmasks is responsibility of
  administrator

63
No Subnetting

• All hosts think that the other hosts are on the
  same network

64
With Subnetting

• Hosts with same extended network prefix belong to
  the same network

65
With Subnetting

• Different subnetmasks lead to different views of
  the size of the scope of the network

66
Problems with Classful IP Addresses

• By the early 1990s, the original classful address
  scheme had a number of problems
• Flat address space. Routing tables on the
  backbone Internet need to have an entry for each
  network address. When Class C networks were
  widely used, this created a problem. By the 1993,
  the size of the routing tables started to outgrow
  the capacity of routers.
• Other problems
• Too few network addresses for large networks
• Class A and Class B addresses were gone
• Limited flexibility for network addresses
• Class A and B addresses are overkill (gt64,000
  addresses)
• Class C address is insufficient (requires 40
  Class C addresses)

67
Allocation of Classful Addresses
68
CIDR - Classless Interdomain Routing

• IP backbone routers have one routing table entry
  for each network address
• With subnetting, a backbone router only needs to
  know one entry for each Class A, B, or C networks
• This is acceptable for Class A and Class B
  networks
• 27 128 Class A networks
• 214 16,384 Class B networks
• But this is not acceptable for Class C networks
• 221 2,097,152 Class C networks
• In 1993, the size of the routing tables started
  to outgrow the capacity of routers
• Consequence The Class-based assignment of IP
  addresses had to be abandoned

69
CIDR - Classless Interdomain Routing

• Goals
• New interpretation of the IP address space
• Restructure IP address assignments to increase
  efficiency
• Permits route aggregation to minimize route table
  entries
• CIDR (Classless Interdomain routing)
• abandons the notion of classes
• Key Concept The length of the network prefix in
  the IP addresses is kept arbitrary
• Consequence Size of the network prefix must be
  provided with an IP address

70
CIDR Notation

• CIDR notation of an IP address
• 192.0.2.0/18
• "18" is the prefix length. It states that the
  first 18 bits are the network prefix of the
  address (and 14 bits are available for specific
  host addresses)
• CIDR notation can replace the use of subnetmasks
  (but is more general)
• IP address 128.143.137.144 and subnetmask
  255.255.255.0 becomes 128.143.137.144/24
• CIDR notation allows to drop trailing zeros of
  network addresses
• 192.0.2.0/18 can be written as 192.0.2/18

71
Why do people still talk about

• CIDR eliminates the concept of class A, B, and C
  networks and replaces it with a network prefix
• Existing classful network addresses are converted
  to CIDR addresses
• 128.143.0.0 ? 128.143.0.0/16
• The change has not affected many (previously
  existing) enterprise networks
• Many network administrators (especially on
  university campuses) have not noticed the change
  (and still talk about classes A,B,C)
• (Note CIDR was introduced with the role-out of
  BGPv4 as interdomain routing protocol. )

72
CIDR address blocks

• CIDR notation can nicely express blocks of
  addresses
• Blocks are used when allocating IP addresses for
  a company and for routing tables (route
  aggregation)
• CIDR Block Prefix of Host
  Addresses
• /27 32
• /26 64
• /25 128
• /24 256
• /23 512
• /22 1,024
• /21 2,048
• /20 4,096
• /19 8,192
• /18 16,384
• /17 32,768
• /16 65,536
• /15 131,072
• /14 262,144
• /13 524,288

73
CIDR and Address assignments

• Backbone ISPs obtain large block of IP addresses
  space and then reallocate portions of their
  address blocks to their customers.
• Example
• Assume that an ISP owns the address block
  206.0.64.0/18, which represents 16,384 (214) IP
  addresses
• Suppose a client requires 800 host addresses
• With classful addresses need to assign a class B
  address (and waste 64,700 addresses) or four
  individual Class Cs (and introducing 4 new routes
  into the global Internet routing tables)
• With CIDR Assign a /22 block, e.g.,
  206.0.68.0/22, and allocated a block of 1,024
  (210) IP addresses.

74
CIDR and Routing

• Aggregation of routing table entries
• 128.143.0.0/16 and 128.144.0.0/16 are represented
  as 128.142.0.0/15
• Longest prefix match Routing table lookup finds
  the routing entry that matches the longest prefix
• What is the outgoing interface for
• 128.143.137.0/24 ?
• Route aggregation can be exploited
• when IP address blocks are assigned
• in an hierarchical fashion

Routing table
75
CIDR and Routing Information
Company X 206.0.68.0/22
ISP X owns
206.0.64.0/18 204.188.0.0/15 209.88.232.0/21
Internet Backbone
ISP y 209.88.237.0/24
Organization z1 209.88.237.192/26
Organization z2 209.88.237.0/26
76
CIDR and Routing Information
Backbone routers do not know anything about
Company X, ISP Y, or Organizations z1, z2.
Company X 206.0.68.0/22
ISP X owns
ISP y sends everything which matches the prefix
209.88.237.192/26 to Organizations z1
209.88.237.0/26 to Organizations z2
ISP X does not know about Organizations z1, z2.
206.0.64.0/18 204.188.0.0/15 209.88.232.0/21
Internet Backbone
ISP X sends everything which matches the prefix
206.0.68.0/22 to Company X, 209.88.237.0/24 to
ISP y
ISP y 209.88.237.0/24
Backbone sends everything which matches the
prefixes 206.0.64.0/18, 204.188.0.0/15,
209.88.232.0/21 to ISP X.
Organization z1 209.88.237.192/26
Organization z2 209.88.237.0/26
77
IPv6 - IP Version 6

• IP Version 6
• Is the successor to the currently used IPv4
• Specification completed in 1994
• Makes improvements to IPv4 (no revolutionary
  changes)
• One (not the only !) feature of IPv6 is a
  significant increase in of the IP address to 128
  bits (16 bytes)
• IPv6 will solve for the foreseeable future
  the problems with IP addressing
• 1024 addresses per square inch on the surface of
  the Earth.

78
IPv6 Header
79
IPv6 vs. IPv4 Address Comparison

• IPv4 has a maximum of
• 232 ? 4 billion addresses
• IPv6 has a maximum of
• 2128 (232)4 ? 4 billion x 4 billion x 4 billion
  x 4 billion addresses

80
Notation of IPv6 addresses

• Convention The 128-bit IPv6 address is written
  as eight 16-bit integers (using hexadecimal
  digits for each integer)
• CEDFBP7632454464FACE2E503025DF12
• Short notation
• Abbreviations of leading zeroes
• CEDFBP7600000000009E00003025DF12 ?
  CEDFBP76009E 03025DF12
• 000000000000 can be written as
• CEDFBP7600FACE03025DF12 ?
  CEDFBP76FACE03025DF12
• IPv6 addresses derived from IPv4 addresses have
  96 leading zero bits. Convention allows to use
  IPv4 notation for the last 32 bits.
• 808F8990 ? 128.143.137.144

81
IPv6 Provider-Based Addresses

• The first IPv6 addresses will be allocated to a
  provider-based plan
• Type Set to 010 for provider-based addresses
• Registry identifies the agency that registered
  the address
• The following fields have a variable length
  (recommeded length in ())
• Provider Id of Internet access provider (16
  bits)
• Subscriber Id of the organization at provider
  (24 bits)
• Subnetwork Id of subnet within organization (32
  bits)
• Interface identifies an interface at a node (48
  bits)

Registry ID
Provider ID
010
Subscriber ID
Interface ID
SubnetworkID
