Title: 3D Object Retrieval


1

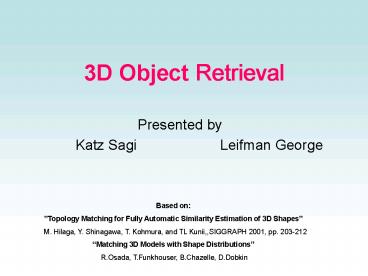

3D Object Retrieval
  • Presented by
  • Katz Sagi Leifman George

Based on Topology Matching for Fully Automatic
Similarity Estimation of 3D Shapes M. Hilaga,
Y. Shinagawa, T. Kohmura, and TL Kunii,,SIGGRAPH
2001, pp. 203-212 Matching 3D Models with Shape
Distributions R.Osada, T.Funkhouser,
B.Chazelle, D.Dobkin
2
3D Objects Retrieval Why?
  • Improved modeling tools
  • Improved scanning devices
  • Fast and cheap CPUs, Gfx HW
  • Large databases
  • E-commerce
  • Medicine
  • Entertainment
  • Molecular biology
  • Manufacturing

3
3D vs. 2D Retrieval
  • 2D
  • Object Boundaries
  • Features Occlusion
  • Camera dependent
  • Noise
  • Simple Contour representation
  • 3D
  • Problematic Surface Representation
  • Ambiguous Triangulation
  • No Features Occlusion, shadows, noise

4
Common Approach
  • Preprocess Stage
  • Objects Normalization (optional)
  • Signature for each object
  • Compact
  • Capture the object properties
  • Comparable
  • Signature Comparison
  • Coarse-to-Fine (optional)
  • Fast

DB
Object signatures
Signatures Comparison
Queryprocess
Query
Similarobjects
Object
5
Signature Properties
  • What do we want from good signature?
  • Robustness to resampling and simplification
  • Translation, Orientation, Scale Invariance
  • Possible Solutions
  • Preprocess Object Normalization
  • Automatically embedded in the key by definition



6
Object Normalization using Moments
Translation (m100, m010, m001) center of mass
Rotation, Scale
?(1,1) - main axis scale U Rotation Matrix
7
Different Methods
  • Octrees
  • Probability Shape Distributions
  • Distances to Enclosing Sphere
  • Reeb Graphs

8
Octrees
  • Signature
  • Each object is represented by Octree
  • White, black, gray (gray level)
  • Signature Comparison
  • Coarse-to-Fine search (tree depth)

9
Probability Shape Distributions
  • Several types of signatures
  • A3 angle between three random surface points
  • D1 distance from fixed point to random point
  • D2 distance between two random surface points

X-axis D2 distance Y-axis Probability of that
distance
Signature Comparison L1,L2,L8 for PDF and CDF
10
Distances to Enclosing Sphere
  • Signature
  • Sphere is evenly sampled
  • For each sphere sample min. distance to object
    calculated

Signature Comparison L1,L2,L8
11
Topology MatchingUsing MRGs
12
The Idea
  • The signature
  • Multiresolutional Reeb Graphs (MRGs)
  • Represents the skeletal and topological structure
    of a 3D shape at various levels of resolution
  • Constructed using a continuous function on the 3D
    shape.
  • Correspondence between the parts of objects.
  • Invariant to transformations and non-rigid
    deformations
  • The search
  • coarse to fine

13
How to Reeb an Object
  • Well create a simple reeb graph using height
    function
  • µ - height of the point V µ(V(x,y,z))z

14
MultiResolutional Reeb Graph(MRG)
  • A series of Reeb graphs at various levels of
    detail

15
The Construction of the MRG
  • Define the following notation
  • R-node A node in an MRG.
  • R-edge An edge connecting R-nodes in an MRG.
  • T-set A connected component of triangles in a
    region
  • µn -range A range of the function µn concerning
    an R-node or a T-set.

16
The Construction of the MRG cont.
  • The domain of µn is divided onto K µn-ranges
  • R00,1/K),R11/k,2/k).Rk-1(K-1)/K,1)
  • Note The example uses the height function for
    the convenience of explanation

17
The Construction of the MRG cont.
  • Subdivision
  • Interpolate the position of two relevant vertices
    in the same proportion as their value of µn(v)

18
The Construction of the MRG cont.
  • Calculate T-sets
  • Connect R-nodes

19
The Construction of the MRG cont.
  • Construct MRG
  • fine-to-coarse (reverse)

20
Defining µ for Topology Matching
  • Height function is not appropriate
  • not invariant to transformations.
  • Use a geodesic distance
  • Not invariant to scale
  • Normalize 0,1

21
Examples of the Distribution of the Function µ
  • More asymmetric shapes have a wider range for
    µn(v)
  • Sphere
  • constant value of µn(v)0

22
Matching
  • Assign 2 attributes for each node (m) in the
    finest resolution
  • Area
  • Length

23
Matching cont.
  • Define
  • At coarse resolution
  • Similarity (0ltwlt1)
  • To satisfy
  • Define

24
Matching cont.
25
Topology Matching Added Value
  • Topology matching
  • can be used to find
  • correspondence
  • between meshes
  • Problem
  • The algorithm does
  • Not distinguish between
  • Left and right

26
Results
  • 230 mesh objects

27
Future Work
  • Use additional information
  • Texture,color,curvature etc.
  • Euclidean distance as the R-node attribute
  • Use different µ functions
  • Density for volumetric data

28
Summary
29
END
30
Appendix- MRG Construction
  • When calculating the integral of geodesic
    distance the computational cost is high
  • We employ a relatively simple method in which
    geodesic distance is approximated by Dijkstras
    algorithm based on edge length.
  • We need to prepare the mesh for this approximation

31
Appendix- Preparing the Mesh
  • The distribution of the vertices should be fine
    enough to represent the function µn(v) well.
  • We need to resample the vertices until all edge
    length are less than a threshold p
  • If edges of a mesh are uniform in a certain
    direction, the accuracy of the calculation of µ
    (v) is biased and results in an inaccurate
    calculation of µn(v)
  • Special edges called short-cut edges may need
    to be added to the mesh to modify the uniformity
    by making the directions of edges isotropic.
  • The algorithm for adding a short-cut edge
  • t1,t2 and t3 which are adjacent to the triangle
    tc are unfolded on the plane of tc
  • New edges are generated between each of the
    vertex pairs but only if an edge is inside the
    unfolded polygon

32
Appendix- Calculating µn
  • The calculation is done using Dijkstras
    algorithm
