Brand Name, Model Number

1

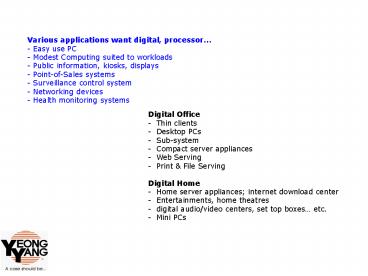

• Various applications want digital, processor
• Easy use PC
• Modest Computing suited to workloads
• Public information, kiosks, displays
• Point-of-Sales systems
• Surveillance control system
• - Networking devices
• - Health monitoring systems

• Digital Office
• Thin clients
• Desktop PCs
• Sub-system
• Compact server appliances
• Web Serving
• Print File Serving
• Digital Home
• Home server appliances internet download
  center
• Entertainments, home theatres
• digital audio/video centers, set top boxes
  etc.
• Mini PCs

2
Yeong Yang2009 New Product

• Flexible Drive Cage - fulfill various application
  and cost effective
• Free Keep Out Zone above the core area keep
  processor cool, support mainstream platform ATOM
  boards and next generations
• Easy assembly design
• Convertible Power Supply
• Options Wall mount kits, Stands, card reader,
  hot-swap 2.5HDD rack, Riser card

YY-C582
2009.2.18
3
Case Type Mini-ITX PC (DO/DH)
Chassis Dimension (mm) 250(W)x250(D)x95(H) 5.9L without front panel 250(W)x265(D)x95(H) 6.3L with front panel
Driver Bays Flexible combinations
Front I/O USB 2.0 x 2, HD-Audio, Power SW, Power LED, HDD LED
System fan 80x80x15 DC fan
PSU 100200W FlexATX or 60150W DC board w/adapter
YY-C581
4
Convertible Drive Cage to fulfill different
system configurations for various applications
Drive Cage Ab Allowing to assembly a slim ODD
and a 3.5 drive (i.e. card reader or 3.5HDD,
hot-swap 2-bays 2.5HDD
System Configuration 1 2 3 4 5
Drive Cage Assembly A A Ab Ab Ab
5.25ODD 1
Slim ODD 1 1 1
3.5"Exposed 1
3.5"HDD 1 1
2.5"HDD 2 2 2 3 2
LP PCI card 1 1 1 1 1
M/B KOZ 57mm max V V V
M/B KOZ 34mm max V V V V V
Drive Cage A Allowing to assembly a standard
5.25 Optical Drive or a 3.5HDD
A
M/B KOZ (Keep Out Zone) Means the component
height limitation on board, including RAM,
Processor and chips, FHS (Fan and Heat Sink) 57mm
KOZ covering Intel boxed CPU and FHS 34mm KOZ
means the highest component on board is about the
same height as RAM (DDRII, DDRIII)
b
57mm KOZ Illustration chassis build in Intel
DQ45EK with Intel boxed Core 2 Duo Processor (TDP
65W)
5
5.25 ODD
Slim ODD 3.5 or 2.5 HDD
3.5HDD assembly
Slim ODDexposed drivecard Reader
Optional 2bays -hot-swap 2.5HDD in 3.5rack
Cage AB
Flexible Drive Cage
Cage A
screw-less Slide
2.5HDD assembly
Intrusion Switch
Easy Assembly
Excellent Airflow
FlexATX PSU
Slides for slim ODD and card reader
Optional system fan 80x80x15mm Blow Out
PCI - Low Profile
Full high PCI
Security lock
Optional PCIx1, x4,x8,x16 Riser w/flexible cable
Optional stylish stands
Optional Right Angle SATA cable for 3.5HDD
Optional 67 SATA cable for slim ODD
