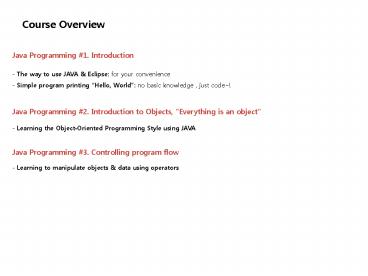

Course Overview

1
Course Overview

• Java Programming 1. Introduction
• The way to use JAVA Eclipse for your
  convenience
• Simple program printing Hello, World no basic
  knowledge , just code!
• Java Programming 2. Introduction to Objects,
  Everything is an object
• Learning the Object-Oriented Programming Style
  using JAVA
• Java Programming 3. Controlling program flow
• Learning to manipulate objects data using
  operators

2
Chap 3. Controlling program flow Java
Programming 2

• Data Mining Lab, Lee Seung-Kyung

3
Controlling program flow

• Like a sentient creature, a program must
  manipulate its world and make choices during
  execution
• In Java you manipulate objects and data using
  operators
• you make choices with execution control
  statements
• Java was inherited from C, so most of these
  statements
• operators will be familiar to C and C
  programmers
• Java has also added some improvements and
  simplifications.

4
Using Java operators

• All operators produce a value from their operands
• An operator takes one or more arguments and
  produces a new value
• The arguments are in a different form than
  ordinary method calls, but the effect is the same
• Reasonably comfortable with the general concept
  of operators from your previous programming
  experience
• Addition (), subtraction and unary minus (-),
  multiplication (), division (/) and assignment
  ()
• All work much the same in any programming
  language.
• Almost all operators work only with primitives
  (primitive type, e.g. int, long, float, ... See
  the class material Java 2)
• The exceptions are , and !, which
  work with all objects (and are a point of
  confusion for objects)
• In addition, the String class supports and
  (what does operator in String class
  mean?.. Test it!)

5
Using Java operators - Precedence

• Precedence Specific rule to determine the order
  of evaluation
• Operator precedence defines how an expression
  evaluates when several operators are present
• The easiest one to remember is that
  multiplication and division happen before
  addition and subtraction
• Programmers often forget the other precedence
  rules,
• so you should use parentheses to make the order
  of evaluation explicit
• For example
• A X Y - 2/2 Z
•
• has a very different meaning from the same
  statement with a particular grouping of
  parentheses
• A X (Y - 2)/(2 Z)

6
Using Java operators - Assignment

• Assignment is performed with the operator
• Take the value of the right-hand side (called
  the rvalue) and copy it into the left-hand side
  (called the lvalue)
• An rvalue is any constant, variable or
  expression that can produce a value,
• But an lvalue must be a distinct, named
  variable. (That is, there must be a physical
  space to store a value)
• For instance, you can assign a constant value to
  a variable (A 4)
• But you cannot assign anything to constant value
  it cannot be an lvalue. (You cant say 4 A)
• Assignment of primitives
• Assignment of primitives is quite
  straightforward.
• Since the primitive holds the actual value and
  not a handle to an object (handle? See the class
  material Java 2),
• when you assign primitives you copy the contents
  from one place to another
• For example, if you say A B for primitives,
  then the contents of B is copied into A
• If you then go on to modify A, B is naturally
  unaffected by this modification
• This is what youve come to expect as a
  programmer for most situations

7
Using Java operators - Assignment

• Assignment of objects
• When you assign objects, however, things change
• Whenever you manipulate an object, what youre
  manipulating is the handle
• So when you assign from one object to another
  youre actually copying a handle from one place
  to another
• This means that if you say C D for objects,
• You end up with both C and D pointing to the
  object that, originally, only D pointed to
• // Aliasing Example
• class Number
• int i
• public class Assignment
• public static void main(String args)
• Number n1 new Number()
• Number n2 new Number()
• n1.i 9

handle
object
n1
Before n1 n2
n2
n1
n1 n2
n2
n1
After n1 n2
n2
8
Using Java operators - Assignment

What if you dont want aliasing to occur in this
case? You could forego the assignment and say
n1.i n2.i - Manipulating the fields within
objects is messy and goes against good
object-oriented design principles. - This is a
non-trivial topic (detail may be explained in
the future class) In the meantime, you should
keep in mind that assignment for objects can add
surprises.
9
Using Java operators - Assignment

• Think about this code
• Aliasing during method calls (Aliasing will also
  occur when you pass an object into a method)
• // Passing objects to methods may not be what
  you're used to.
• class Letter
• char c
•
• public class PassObject
• static void f(Letter y)
• y.c 'z'
• public static void main(String args)
• Letter x new Letter()
• x.c 'a'
• System.out.println("1 x.c " x.c)
• f(x)

10
Mathematical operators

• The basic mathematical operators are the same as
  the ones available in most programming languages

• - addition (), subtraction (-), division (/),
  multiplication () and modulus ()
• Shorthand notation
• Java also uses a shorthand notation to perform
  an operation and an assignment at the same time
• For example, to add 4 to the variable x and
  assign the result to x, use x 4
• // Demonstrates the mathematical operators
• import java.util.
•
• public class MathOps
• // Create a shorthand to save typing
• static void prt(String s)
• System.out.println(s)

11
Mathematical operators

public static void main(String args)
Random rand new Random() // Create a random
number generator, sees with current time by
default int i, j, k j rand.nextInt()
100 // think the range of j, what
is the upper bound of j???? k
rand.nextInt() 100 pInt("j",j)
pInt("k",k) // just shorthand to print a
string and an int i j k pInt("j k",
i) i j - k pInt("j - k", i) i k /
j pInt("k / j", i) i k j pInt("k
j", i) i k j pInt("k j", i) j
k pInt("j k", j) u v pInt("u
v", u) u - v pInt("u - v", u) u
v pInt("u v", u) u / v pInt("u /
v", u) // Other primitives??? Check for
float, char, byte, short, int, long, double
///
12
Mathematical operators

• Unary minus and plus operators
• The unary minus (-) and unary plus () are the
  same operators as binary minus and plus
• The compiler figures out which use is intended
  by the way you write the expression
• For instance, the statement
• x -a
•
• The compiler is able to figure out
• x a -b
•
• but the reader might get confused, so it is more
  clear to say
• x a (-b)
•
• The unary minus produces the negative of the
  value
• Unary plus provides symmetry with unary minus,
  although it doesnt do much.

13
Mathematical operators

• Auto increment and decrement
• Java, like C, is full of shortcuts
• Shortcuts can make code much easier to type, and
  either easier or harder to read.
• Two of the nicer shortcuts increment
  (auto-increment operator), decrement operators
  (auto-decrement operator)
• The decrement operator is -- and means decrease
  by one unit.
• The increment operator is and means increase
  by one unit.
• For example, If A is an int, the expression A
  is equivalent to (A A 1)
• Prefix and postfix versions
• There are two versions of each type of operator,
  often called the prefix and postfix versions
• Pre-increment means the operator appears
  before the variable or expression
• A or A
• Post-increment means the operator appears
  after the variable or expression
• A or A

14
Mathematical operators

// Demonstrates the and -- operators   public
class AutoInc public static void
main(String args) int i 1 prt("i
" i) prt("i " i) //
Pre-increment prt("i " i) //
Post-increment prt("i " i) prt("--i
" --i) // Pre-decrement prt("i-- "
i--) // Post-decrement prt("i " i)
static void prt(String s)
System.out.println(s) ///
15
Relational operators

• Relational operators generate a boolean result
• They evaluate the relationship between the
  values of the operands
• A relational expression produces true if the
  relationship is true, and false if the
  relationship is untrue
• The relational operators
• less than (lt), greater than (gt), less than or
  equal to (lt), greater than or equal to (gt),
  equivalent (), not equal (!)
• Relational operator with objects?? Testing object
  equivalence
• The relational operators and ! also work with
  all objects
• But their meaning often confuses the first-time
  Java programmer
• Heres an example
•
• public class Equivalence
• public static void main(String args)
• Integer n1 new Integer(47)
• Integer n2 new Integer(47)
• System.out.println(n1 n2)
• System.out.println(n1 ! n2)

16
Relational operators

What if you want to compare the actual contents
of an object for equivalence? You must use the
special method equals( ) that exists for all
objects (not primitives, which work fine with
and !) Heres how its used   public class
EqualsMethod public static void main(String
args) Integer n1 new Integer(47)
Integer n2 new Integer(47)
System.out.println(n1.equals(n2))
/// If you create your own class, well..
  class Value int i   public class
EqualsMethod2 public static void main(String
args) Value v1 new Value() Value v2
new Value() v1.i v2.i 100
System.out.println(v1.equals(v2)) // Is it
sufficient??? Does it work well??? ///
17
Relational operators

• The result is false!!!
• This is because the default behavior of
  equals( ) is to compare handles
• So unless you override equals( ) in your new
  class you wont get the desired behavior
• Unfortunately, you wont learn about overriding
  until next class (when I dont know exactly..)
• but being aware of the way equals( ) behaves
  might save you some grief in the meantime
• Most of the Java library classes implement
  equals( ) so that it compares the contents of
  objects instead of handles

18
Logical operators

• The logical operators AND (), OR () and NOT
  (!)
• Producing a boolean value of true or false based
  on the logical relationship of its arguments
• This example uses the relational and logical
  operators
• // Relational and logical operators
• import java.util.
•
• public class Bool
• public static void main(String args)
• Random rand new Random()
• int i rand.nextInt() 100
• int j rand.nextInt() 100
• prt("i " i)
• prt("j " j)
• prt("i gt j is " (i gt j))
• prt("i lt j is " (i lt j))
• prt("i ! j is " (i ! j))
•

19
Logical operators

Short-circuiting When dealing with logical
operators you run into a phenomenon called short
circuiting. // Demonstrates short-circuiting
behavior with logical operators.   public class
ShortCircuit static boolean test1(int val)
System.out.println("test1(" val ")")
System.out.println("result " (val lt 1))
return val lt 1 static boolean test2(int
val) System.out.println("test2(" val
")") System.out.println("result " (val lt
2)) return val lt 2 static boolean
test3(int val) System.out.println("test3("
val ")") System.out.println("result "
(val lt 3)) return val lt 3 public
static void main(String args) if(test1(0)
test2(2) test3(2)) // Are all
conditions (test1,2,3) tested???? Well Test
Think.. System.out.println("expression is
true") else System.out.println("express
ion is false") ///
20
Bitwise operators

• Bitwise operator to manipulate individual bits
• You were often manipulating hardware directly
  and had to set the bits in hardware registers
• Java was originally designed to be embedded in
  TV set-top boxes, so this low-level orientation
  still made sense
• However, you probably wont use the bitwise
  operators much (Actually This is important ???)
• The bitwise AND operator () produces a one in
  the output bit if both input bits are one
• otherwise it produces a zero
• The bitwise OR operator () produces a one in
  the output bit
• if either input bit is a one and produces a zero
  only if both input bits are zero
• The bitwise, EXCLUSIVE OR, or XOR (), produces
  a one in the output bit
• if one or the other input bit is a one, but not
  both
• The bitwise NOT (, also called the ones
  complement operator) is a unary operator it
  takes only one argument
• Bitwise NOT produces the opposite of the input
  bit a one if the input bit is zero, a zero if
  the input bit is one
• The left-shift operator (ltlt) produces the
  operand to the left of the operator shifted to
  the left by the number of bits specified after
  the operator (inserting zeroes at the lower-order
  bits)

21
Ternary if-else operator

• boolean-exp ? value0 value1
• This operator is unusual because it has three
  operands
• It is truly an operator because it produces a
  value
• If boolean-exp evaluates to true, value0 is
  evaluated and its result becomes the value
  produced by the operator
• If boolean-exp is false, value1 is evaluated and
  its result becomes the value produced by the
  operator.
• Of course, you could use an ordinary if-else
  statement (described later), but the ternary
  operator is much terser
• You should be somewhat wary of using it on an
  everyday basis its easy to produce unreadable
  code!!!
• Heres an example
• static int ternary(int i)
• return i lt 10 ? i 100 i 10
•
• You can see that this code is more compact than
  what youd need to write without the ternary
  operator

22
Common pitfalls when using operators

One of the pitfalls when using operators is
trying to get away without parentheses when
you are even the least bit uncertain about how an
expression will evaluate. This is still true in
Java An extremely common error in C and C
looks like this while(x y) //
....   The programmer was trying to test for
equivalence () rather than do an assignment In
C and C the result of this assignment will
always be true if y is nonzero, and youll
probably get an infinite loop In Java, what
happen??? Hint the result of this expression is
not a boolean
23
Casting operators

• The word cast is used in the sense of casting
  into a mold
• Java will automatically change one type of data
  into another when appropriate
• For instance,
• if you assign an integral value to a
  floating-point variable,
• the compiler will automatically convert the int
  to a float
• Casting allows you to make this type conversion
  explicit, or to force it when it wouldnt
  normally happen
• void casts()
• int i 200
• long l (long)i
• long l2 (long)200
• The cast is possible but superfluous
• since the compiler will automatically promote an
  int value to a long when necessary
• You can still put a cast in to make a point or
  to make your code more clear

24
Casting operators

• Narrowing conversion case
• Converting from a data type that can hold more
  information to one that doesnt hold as much
• The risk of losing information.
• - When you use the narrowing conversion without
  the casting operator, what happen? Check
• Promotion
• In general, the largest data type in an
  expression is the one that determines the size of
  the result of that expression
• If you multiply a float and a double, the result
  will be double if you add an int and a long, the
  result will be long.

25
Casting operators

Narrowing conversion case public class
CastingNumbers public static void
main(String args) double above 0.7,
below 0.4 System.out.println("above "
above) System.out.println("below "
below) System.out.println("(int)above "
(int)above) // 0? 1? System.out.println(
"(int)below " (int)below) // 0? 1?
///
26
Precedence revisited

Complain about the complexity of remembering
operator precedence . A student suggested a
mnemonic that is simultaneously a commentary
Ulcer Addicts Really Like C A lot. Of course,
with the shift and bitwise operators distributed
around the table it is not a perfect mnemonic,
but for non-bit operations it works.
27
Overflow Problem

Dont be lulled into thinking everything is
safe!!! If you multiply two ints that are big
enough, youll overflow the result. //
Surprise! Java lets you overflow public class
Overflow public static void main(String
args) int big 0x7fffffff // max int
value // 0x.. Hexadecimal prt("big "
big) int bigger big 4 prt("bigger
" bigger) static void prt(String s)
System.out.println(s) ///   The output
of this is big 2147483647 bigger -4
// This is the overflow problem
28
Execution control

• If-else
• While
• Do-while
• For
• Switch
• Goto??? Well

Iteration statement
29
Execution control

• if-else
• Probably the most basic way to control program
  flow
• The else is optional, so you can use if in two
  forms
• if(Boolean-expression) statement
• or
• if(Boolean-expression) statementelse
  statement
• As an example
• static int test(int testval)
• int result 0
• if(testval gt target)
• result -1
• else if(testval lt target)
• result 1
• else
• result 0 // match

30
Execution control

• return
• The return keyword has two purposes
• - it specifies what value a method will return
  (if it doesnt have a void return value)
• it causes that value to be returned immediately.
  The test( ) method above can be rewritten to take
  advantage of this
• static int test2(int testval)
• if(testval gt target)
• return -1
• if(testval lt target)
• return 1
• return 0 // match
•
• Theres no need for else because the method will
  not continue after executing a return

31
Iteration

while, do-while and for control looping and are
sometimes classified as iteration statements A
statement repeats until the controlling
Boolean-expression evaluates to false The form
for a while loop is while(Boolean-expression)
statement The Boolean-expression is evaluated
once at the beginning of the loop and again
before each further iteration of the
statement // Demonstrates the while loop  public
class WhileTest public static void
main(String args) int i 1 while(i
lt 10) i
System.out.println(i) //
What is value of variable i ???? Test it!!!!
///
32
do-while

• The form for do-while is
• do statementwhile(Boolean-expression)
• The sole difference between while and do-while
• The statement of the do-while always executes at
  least once, even if the expression evaluates to
  false the first time
• In a while, if the conditional is false the
  first time the statement never executes
• In practice, do-while is less common than while
• public class DoWhileTest
• public static void main(String args)
• int i 1
• do
• i
• System.out.println(i)
• while (i lt 10)

33
for

• A for loop performs initialization before the
  first iteration
• Then it performs conditional testing
• At the end of each iteration, some form of
  stepping.
• The form of the for loop is
• for(initialization Boolean-expression step)
  statement
• Any of the expressions initialization,
  Boolean-expression or step can be empty
• The expression is tested before each iteration,
• as soon as it evaluates to false execution will
  continue at the line following the for statement
• At the end of each loop, the step executes
• for loops are usually used for counting tasks
• // Demonstrates "for" loop by listing
• public class ListCharacters
• public static void main(String args)
• for (int i0ilt7i)

34
The comma operator

public class CommaOperator public static void
main(String args) for(int i 1, j i
10 i lt 5 i, j i 2)
System.out.println("i " i " j " j)
///   Heres the output i 1 j 11 i
2 j 4 i 3 j 6 i 4 j 8   You can see that in
both the initialization and step portions the
statements are evaluated in sequential order
Also, the initialization portion can have any
number of definitions of one type
35
break and continue

• Inside the body of any of the iteration
  statements
• you can also control the flow of the loop by
  using break and continue
• break quits the loop without executing the rest
  of the statements in the loop
• continue stops the execution of the current
  iteration and goes back to the beginning of the
  loop
• This program shows examples of break and continue
  within for and while loops
• // Demonstrates break and continue keywords
• // Compare two iteration (for, while)
• public class BreakAndContinue
• public static void main(String args)
• for(int i 0 i lt 100 i)
• if(i 74) break // Out of for loop
• if(i 9 ! 0) continue // Next iteration
• System.out.println(i)
• int i 0

36
The infamous goto

• The goto keyword has been present in programming
  languages from the beginning
• Indeed, goto was the genesis of program control
  in assembly language
• if condition A, then jump here, otherwise jump
  there.
• .
• By the publication of the famous Goto considered
  harmful paper by Edsger Dijkstra
• - Therefore I omit to explain it
• If you want to know goto really. Read the
  book about the program language

37
switch

• The switch is sometimes classified as a selection
  statement
• The switch statement selects from among pieces of
  code based on the value of an integral
  expression.
• Its form is
• switch(integral-selector) case
  integral-value1 statement break case
  integral-value2 statement break case
  integral-value3 statement break case
  integral-value4 statement break case
  integral-value5 statement break //
  default statement
• Integral-selector is an expression that produces
  an integral value
• The switch compares the result of
  integral-selector to each integral-value
• If it finds a match, the corresponding statement
  (simple or compound) executes.
• If no match occurs, the default statement
  executes.

38
switch

• Each case ends with a break, which causes
  execution to jump to the end of the switch body
• This is the conventional way to build a switch
  statement, but the break is optional
• If it is missing, the code for the following
  case statements execute until a break is
  encountered
• Although you dont usually want this kind of
  behavior, it can be useful to an experienced
  programmer
• Note the last statement, for the default,
  doesnt have a break
• Because the execution just falls through to
  where the break would have taken it anyway
• The switch statement is a clean way to implement
  multi-way selection
• But it requires a selector that evaluates to an
  integral value such as int or char
• If you want to use, for example, a string or a
  floating-point number as a selector, it wont
  work in a switch statement
• For non-integral types, you must use a series of
  if statements

39
switch

// Demonstrates the switch statement public class
VowelsAndConsonants public static void
main(String args) for(int i 0 i lt 100
i) char c (char)(Math.random() 26
'a') // Math.random() Find the Java document
System.out.print(c " ") switch(c)
case 'a' case 'e' case
'i' case 'o' case 'u'
System.out.println("vowel")
break case 'y' case 'w'
System.out.println("Sometimes a vowel")
break default
System.out.println("consonant")
///
40
Homework 2

In Calculator Class of Homework 1 Problem 1.
(10) In Calculator Class, add the summation
function using for statement (Calculator.java)
int summation(int from, int
to) Problem 2. (10) In Calculator Class, add the
summation2 function using while statement
(Calculator.java) Problem 3. (10) Write the test
code for random two integer numbers in the main
method (Homework2.java) Problem 4. (10) In
Homework2.java, Add the method testing whether
given integer number is odd or even. boolean
isOdd(int number) Problem 5. (10) In the main
method in Homework2.java,
write the code to sum up the odd number in the
range of 1,10
41
Homework 2

• Be Careful of Below Policy (Upgraded Policy.
  Check it out!!!!)
• Subject of E-mail IIC2009_StduentNumber_Name_
  HW2.zip
• Including following Java Files and Report
• Homework2.java Calculator.java
• Report.doc
• Report
• Result and Explanation
• 1 pages for all problems !!! (Dont worry)
• Simple and Clear
• Due 1200 p.m 2009-04-13 (I give you more time
  First of all read the class material !!!! There
  is the solutions)
• E-Mail to sklee83_at_snu.ac.kr
• Points
• Problem 1 15 Points
• Problem 2 15 Points
