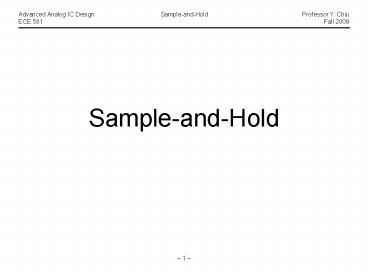

Sample-and-Hold
2
ZOH vs. Track-and-Hold (T/H)

• Zero acquisition time
• Infinite bandwidth
• Not realistic

• T/2 acquisition time
• Finite bandwidth
• Practical

3
A Simple T/H (Top-Plate Sampling)

• MOS technology is naturally suitable for
  implementing T/H
• The lowpass SC network determines the tracking
  bandwidth
• Non-idealities signal-dependent Ron, charge
  injection, aperture, etc.

4
Tracking Bandwidth (TBW)

• Tracking bandwidth determines how promptly Vo can
  follow Vi
• Typically TBW is many times greater than the max
  signal bandwidth
• Whats wrong with the concept of linear
  filtering if Ron is constant?

5
Dispersion

• Magnitude response
• Non-uniform phase delay
• Non-uniform group delay

6
Dispersion

• Waveform is not very sensitive to the lowpass
  magnitude response as long as the signal
  bandwidth is on the order of TBW
• Waveform distortion is mainly due to non-uniform
  phase and group delays

7
Signal-Dependent Ron

• Signal-dependent Ron ? signal-dependent TBW ?
  extra waveform distortion
• Neither signal-dependent Ron nor dispersion is of
  concern if TBW is
• sufficiently large (gtgt fin, depending on the
  target accuracy)

8
Ideal T/H

• Sufficient tracking bandwidth ? negligible
  tracking error
• Well-defined sampling instant (asserted by clock
  rising/falling edge)
• Zero track-mode and hold-mode offset errors

9
T/H Errors (Track Mode)

• Finite tracking bandwidth ? tracking error, T/H
  memory
• Track-mode offset, gain error, and nonlinearity

10
Acquisition Time (tacq)
Short L, thin tox, large W, large Vov, and small
Vi help reduce Ron
11
T/H Errors (T-to-H Transition)

• Pedestal error (often signal-dependent) resulted
  from switch turn-off
• nonidealities (clock feedthrough and charge
  injection)
• Aperture delay the delay ?t b/t hold command
  and hold action
• Aperture jitter the random variation in ?t
  (i.e., sampling clock jitter)

12
Switch Non-Idealities
13
Pedestal Error of Top-Plate T/H
Slow turn-off
Fast turn-off
Watch out for nonlinear errors!
14
Speed-Accuracy Tradeoff of T/H
Pedestal error
TBW
Therefore
Technology scaling improves T/H performance!
15
Aperture Delay (?t)

• Fixed aperture delay is usually not of problem in
  a single-path T/H
• Non-uniform aperture delays among
  time-interleaved T/H paths cause significant
  errors (?t1, ?t2 are also called sampling clock
  skew)

16
Aperture Jitter
Ref M. Shinagawa, Y. Akazawa, and T. Wakimoto,
Jitter analysis of high-speed sampling systems,
IEEE Journal of Solid-State Circuits, vol. 25,
issue 1, pp. 220-224, 1990.
17
Aperture Jitter
?
18
Aperture Jitter
19
T/H Errors (Hold Mode)

• Hold-mode droop caused by off-switch/diode/gate
  leakage
• Hold-mode input feedthrough (i.e., due to
  capacitive coupling)

20
Evaluating T/H Performance
kT/C noise
T 300K
SNDR
Noise
Distortion
Jitter
21
MOS S/H Techniques
22
Simple Top-Plate Sampling

• Pros
• Simple, minimum number of devices
• Potentially wideband, zero track-mode offset
• Cons
• Signal-dependent tracking bandwidth
• Signal-dependent charge injection and clock
  feedthrough
• Signal-dependent aperture delay (sampling point)

23
Signal-Dependent Aperture Delay

• Non-uniform sampling due to signal-dependent
  aperture delay causes distortion in top-plate S/H
• Sharp clock edge and small Vin mitigate the delay
  variation

24
Signal Distortion
? 2nd-order
?
25
CMOS Switch

• Ron still depends on Vin and is sensitive to N/P
  mismatch
• Large parasitic cap due to PMOS switch for
  symmetric Ron
• Clock rising/falling edge alignment

26
Clock Bootstrapping

• Constant gate overdrive voltage VGS VDD for the
  switch
• Ron is not dependent on Vin to the first order
  (body effect?)
• NMOS device only with less parasitic capacitance

27
Clock Bootstrapping
Ref A. M. Abo and P. R. Gray, A 1.5-V, 10-bit,
14.3-MS/s CMOS pipeline ADC, IEEE Journal of
Solid-State Circuits, vol. 34, issue 5, pp.
599-606, 1999.
28
Clock Bootstrapping (F0)
29
Clock Bootstrapping (F1)
30
Dummy Switch

• Initial size of dummy chosen with the assumption
  of a 50/50 split of Qch usually (W/L)dummy lt
  ½(W/L)switch in practice
• The nonlinear dependence of CI on Zi, CS, and
  clock rise/fall time makes it difficult to
  achieve a precise cancellation
• ?_ rising edge must trail ? falling edge

31
Balanced Switch Dummy

• TBW
• Parasitics

Ref L. A. Bienstman and H. J. De Man, An
eight-channel 8 bit microprocessor compatible
NMOS D/A converter with programmable scaling,
IEEE Journal of Solid-State Circuits, vol. 15,
issue 6, pp. 1051-1059, 1980.
32
Fully-Differential T/H
E.g.

• All even-order distortions cancelled, including
  the signal-dependent aperture delay-induced
  distortion
• Actual cancellation limited by P/N mismatch
  (1-10 typically)

33
Bottom-Plate Sampling

• AC-ground switch opens slightly earlier than
  input switches
• Signal-independent CF and CI of switch Fe to the
  first order!
• Top-plate switch can be further bootstrapped
• Typically for applications of more than 8-bit
  resolution
• Less tracking bandwidth due to more switches in
  series
• Signal swing at node X is not entirely zero!

34
Sample-and-Hold Amplifier(SHA)
35
Inverting SHA

• Inverting, closed-loop gain determined by the
  ratio CS/CH
• CMOS or bootstrapped switches are required when
  passing signals with large swing (where?)

36
Inverting SHA (Track-Mode)

• CF and CI are independent of Vin and cancelled
  differentially
• F1e switch is equivalent to two switches of half
  channel length ? faster, less CF and CI

37
Inverting SHA (Hold-Mode)

• CM?
• DM?

• For 1X gain (CS CH), the feedback factor is
  about 1/2
• Floating switch F2 in hold-mode ? flexible input
  common mode
• Useful for single-ended to differential conversion

38
Differential Mode
DM half circuit
?

• DM charge transfer is complete

39
Common Mode
CM half circuit
?

• CM charge is not transferred!

40
Flip-Around SHA

• Non-inverting, 1X closed-loop gain
• Close-to-unity feedback factor in hold mode
• CF/CI independent of Vin and cancelled
  differentially
