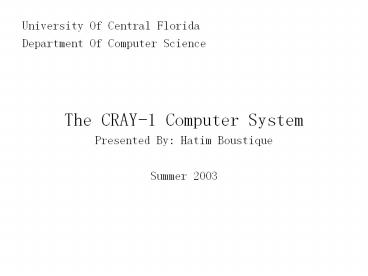

• University Of Central Florida
• Department Of Computer Science
• The CRAY-1 Computer System
• Presented By Hatim Boustique
• Summer 2003

2

• Content
• Characteristics of Cray 1
• Computation Section
• Software
• Comparison and Evolution
• Conclusion

3
Cray Seymour
Created in 1976
4
(No Transcript)
5

• The Cray-1 consists of
• The CPU mainframe
• A power Cabinet
• A Maintenance Control Unit ( MCU)
• One or more Disk Systems
• An interface to a front-end computer

6
Basic Computer System
7

• Characteristics of Cray 1 Cont.
• COMPUTATION SECTION
• 12.5 nanosecond clock period
• Scalar and vector processing modes
• Twelve fully segmented functional units
• Vector ,Scalar and Address registers
• Four instruction buffers of 64 16-bit parcels
  each
• 128 Instruction codes

8

• Characteristics of Cray 1Cont.
• MEMORY SECTION
• Up to 1,048,576 words of bi-polar memory (64
  data bits and eight error correction bits)
• sixteen banks of 65,536 words each
• Four-clock-period bank cycle time

9

• Characteristics of Cray 1 Cont.
• INPUT/OUTPUT SECTION
• 12 input channels and 12 output channels
• Channels are grouped ( 1 group 6 channels )
• Channel groups served equally by memory
• (scanned every four clock periods)
• Channel priority resolved within channel groups
• Lost data detection

10

• Computation Section

11

• Computation Section consists of
• Instruction Control Network
• Operating registers
• Functional Units ( Or pipelined Units)
• Instruction buffers

12
(No Transcript)
13
Computation Section ( cont.)Instruction format
Example Arithmetic operations gh operation
code i the result register j and k the two
operand registers
14
Computation Section ( cont.)Operating registers

• V Registers for Vector processing
• 8 V registers
• ( 1 V Register 64 elemt)
• ( 1 Element 64 bits)
• Suited for vector quantities ( i.e. rows/columns
  of matrices)
• Used for vector chaining

M E M O R Y
15
Computation Section ( cont.)Operating registers

• Example of Chaining
• DO I 1, 64
• D(I) A(I) B(I) C(I)

16
Computation Section ( cont.)Operating registers

• - S Registers for Scalar processing
• 8 S-registers
• ( 1 Register 64 bits)
• Source and destination for scalar arithmetic
• Furnish one operand in vector instructions

17
Computation Section ( cont.)Operating registers

• A Registers ( Address )
• 8 24-bit registers
• Primarily for
• - Memory references
• Also for
• Loop control
• Channel I/O operations

18
Computation Section ( Cont. ) Functional Units

• Hardware organizations
• Each implements a portion of the Instruction Set
• 12 independent functional units parallelism
• grouped into
• Vector units
• Floating point
• Scalar units
• Address units

19
Computation Section ( Cont.) Functional Units
20
Computation Section ( Cont. ) Functional Units
21

• Software
• Cray Operating System (COS) up to
• 63 jobs in a multiprog. Environment
• Cray Fortran Compiler (CFC)
• optimizes Fortran IV (1966) for the Cray-1
• Automatically vectorizes loops that
• manipulate arrays

22
Front-end computer Any computer, such as a Data
General Eclipse or IBM 370/168

23
Comparison with HP9000/735
HP9000/735 workstation 1992 Cray-1 Vector Supercomputer 1976
gt130 MIPS lt 10 MIPS
41 MFLOPS 27 MFLOPS
Price 40,000 4,000,000
99 MHz 80 MHz
Cache 128 kB 0.25 kB
Mem 400 MB 32 MB
24
Evolution Of Cray
CRAY-1 CRAY-2 CRAY-3 CRAY-4
1976 1984 1988-89 1992
CP 12.5ns CP 4.1ns CP 2ns CP 1ns
1 CPU 4 CPUs 16 CPUs 64 CPUs
80 MIPS 480 MIPS 8000 MIPS Cray Computer Corporation declared bankruptcy
160 MFLOPS 1800 MFLOPS 16000 MFLOPS Cray Computer Corporation declared bankruptcy
25
Conclusion

• To which category of architectures The Cray 1
  Computer does belong ?
• Load Store
• Parallel functional units
• Pipeline processing

26
References

• - Russell, R. M., "The CRAY-1 Computer System",
  Communications of the ACM, (21) 1, January 1978,
  pp. 63-72
• - Cray-1 Computer System
• Hardware Reference Manual 2240004By CRAY
  RESEARCH, INC. 1976.
