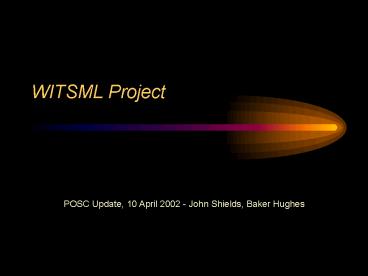

Title: WITSML Project


1
WITSML Project
POSC Update, 10 April 2002 - John Shields, Baker
Hughes
2
Current Trends and Factors
  • Wells are being drilled faster
  • Well targets are becoming more complex
  • Need for integration between drillers, geologists
    and reservoir engineers
  • Shortage of experts in oil companies and
    service companies
  • Geographical factors

3
Previous Systems
  • WITS Wellsite Information Transfer
    Specification 1980s
  • Logs in LIS/LAS/DLIS
  • Statoil sponsored Sperry-OpenWorks connection
  • Statoil DART also used by BP

4
Project Organisation
  • Sponsors
  • BP Statoil
  • Participants
  • Baker Hughes
  • Halliburton/Landmark
  • Schlumberger/SIS
  • NPSi

5
WITSML Project Goal
  • The right time seamless flow of well site data
    between operators and service companies to speed
    and enhance decision-making.
  • DomainDrilling, Completion, Well Services

6
Data Transfer
7
Project Timing Status
  • Initiation of Project - Oct 2000
  • Data Objects defined May 2001
  • July 2001 Working prototype
  • Data object design finalized Oct 2001
  • Current Status
  • Statoil testing WITSML API with Landmark Baker
    Hughes in North Sea
  • Schlumberger developing commercial products
  • 3rd parties also developing WITSML based products

8
Project Meetings Calgary May 2001
9
Project Meetings Austin, Aug 2001
10
Software Design Decisions
  • Web Based W3C Standards
  • Wide area networking
  • cross platform
  • XML data formats
  • Platform and language independent
  • SOAP for Programming Interface
  • Web server based
  • Platform and language independent
  • API Prototype in MS Visual BASIC
  • Aimed at encouraging smaller companies to adopt
    the standard

11
Open Sourced Deliverables
  • Definition of Data Objects Catalogs
  • Example WITSML data files
  • Validation tool for WITSML files
  • API Implementation
  • Documentation

12
Data Objects
  • Wellbore Geometry
  • Casing Scheme
  • Open Hole
  • Daily Operations
  • Fluids Report
  • Cement Job
  • Log
  • Real Time
  • Mud Logging
  • Capability
  • Well
  • Wellbore
  • Rig
  • Rig Equipment
  • Pump
  • Location
  • Trajectory
  • Target
  • Tubular Assembly
  • Bit Record
  • Wellbore Geometry
  • Casing Scheme
  • Open Hole

13
Well Data Object
  • ltwitsmlwells xmlnswitsml"http//www.witsml.org/
    schemas/110" xmlnsxsi"http//www.w3.org/2001/XML
    Schema-instance" xsischemaLocation"http//www.wi
    tsml.org/schemas/110 http//www.witsml.org/schemas
    /110/obj_Well.xsd" witsmlversion"1.1.0"gt
  • ltwitsmlwell witsmluidWell"W-12"gt
  • ltwitsmlnameLegalgtCompany Legal
    Namelt/witsmlnameLegalgt
  •   ltwitsmlnumLicensegtCompany License
    Numberlt/witsmlnumLicensegt
  •   ltwitsmlnumGovtgtGovt-Numberlt/witsmlnumGo
    vtgt
  •   ltwitsmldTimLicensegt2001-05-15T132000.0
    00lt/witsmldTimLicensegt
  •   ltwitsmlfieldgtBig Fieldlt/witsmlfieldgt
  •   ltwitsmlcountrygtUSlt/witsmlcountrygt
  •   ltwitsmlstategtTXlt/witsmlstategt
  •   ltwitsmlcountygtMontgomerylt/witsmlcountygt
  •   ltwitsmlregiongtRegion Namelt/witsmlregion
    gt

14
API Modules Store Interface
  • Store Interface remote access via SOAP
  • Defined in WSDL
  • GetCap Get server capabilities
  • AddToStore Add new objects
  • GetFromStore Retrieve objects
  • DeleteFromStore Remove objects
  • UpdateInStore Update objects
  • GetVersion Get API version

15
API Modules - Other Interfaces
  • Realtime Interface
  • Publisher/Subscriber model
  • Subscriber can query publisher capabilities
  • Data delivered via HTTP POST
  • Utility Interfaces internal use on Server
  • Document Interface
  • Item Interface

16
API GetFromStore
  • API GetFromStore Query Template
  • ltwitsmlwellsgt
  • ltwitsmlwell uidWellgt
  • ltwitsmlnameLegal /gt
  • ltwitsmlnumLicense /gt
  • lt/witsmlwellgt
  • lt/witsmlwellsgt

17
API DeleteFromStore
  • API DeleteFromStore Query Template
  • ltwellsgt
  • ltwell uidWell123/gt
  • ltwell uidWell456/gt
  • lt/wellsgt

18
Web Site
  • Web Site www.witsml.org
  • Details of object schemas
  • Documentation
  • Downloadable API implementation
  • Feedback discussion

19
Future
  • Data standard maintained by POSC
  • Discussions ongoing
  • Integration with PWLS and WellLogML
  • New Domains
  • Completions and Production
  • Initial meeting 18 Oct 2001 in Houston
  • More Sponsors
  • Other major oil companies have been approached to
    sponsor future development of WITSML

20
