Automated Integrations

1

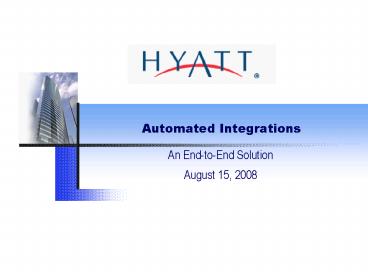

Automated Integrations

• An End-to-End Solution
• August 15, 2008

2
Agenda

• Agenda
• Introductions
• Overview of Hyperion Applications at Global Hyatt
• Overview of Data Integrations
• Business Requirements for Data Integrations
• Features and Functions
• Technical Outlines of Implementation
• Questions Answers

3
Introductions

• Financial Systems Support Team Members
• James Chu The Glue
• Akshay Nagoree The Integrator
• Karen Lin The Instigator

4
Overview of Hyperion Applications at Global Hyatt

• System 9 Products Used in Integrations
• Hyperion Essbase
• Hyperion Financial Planning
• Hyperion Financial Management
• Hyperion Financial Data Quality Management

5
Overview of Data Integrations
6
Business Requirements for Data Integrations

• Business Requirements
• End-to-End Solution
• User controlled process and access
• Data mapping management
• Auditable process

7
Business Requirements for Data Integrations

• Before

After
8

• Features and Functions

9
Features and Functions

• Web-based user interface
• MSAD authentication and access control
• User controlled meta data and mapping table
  upgrade
• User controlled process with minimal user
  interaction
• Administration control of data period, scenario
  and version, etc.
• End to end process with centralized error
  handling and log info
• Concurrent request handling with conflict
  resolution
• Job Scheduling
• Email notification
• Auditable information retention

10
Features and Functions
11
Features and Functions
12
Features and Functions
13
Features and Functions
14
Features and Functions
15
Features and Functions
16
Features and Functions
17
Features and Functions
18
Features and Functions
19

• Technical Outlines of Implementation

20
Technical Outlines of Implementation

• User Interface
• ASP.Net
• Process Control
• Perl script
• Data Extraction
• HFM API, Essbase report script
• Data Translation
• FDM, Perl
• Data Loading
• FDM, Essbase load script

21
Technical Outlines of Implementation

• User Interface (ASP.Net)
• System.DirectoryService MSAD authentication
• Database tables
• access control
• process control
• request information retention

22
Technical Outlines of Implementation

• Process Control (Perl script)
• A process to control over-all end to end
  process
• A service to check the completion of the FDM
  processes
• A service to start scheduled processes and
  processes under On hold mode with conflict
  detection
• Error handling and centralization
• Email notification

23
Technical Outlines of Implementation

• Data Extraction (HFM API)
• Connect to application
• HsxClient.SetLogonInfo
• HsxClient.OpenApplication
• Get entity list
• - For specifically defined entity list
• IhsvTreeInfo.EnumMemberLists - to get
  all predefined member lists
• IhsvTreeInfo.EnumMembers2 - to
  get all members for a specific list
• -         - For all entities
• IhsvTreeInfo.EnumBaseMemberIDs - to get
  all base members under segment
• Get periodic actual data
• HsvCalculate.ChartLogic2 - to trigger
  customized calculation script to calculate and
  copy data to PeriodicActual
  scenario

24
Technical Outlines of Implementation

• Data Extraction (HFM API)
• Get other meta data
• IhsvTreeInfo.EnumBaseMemberIDs - to get the
  base members for other dimensions, such
  as account
• Set IhsvLoadExtractOption
  HsvcDataLoad. ExtractOptions.Item(HSV_DATAEX
  TRACT_OPT_ACCOUNT_SUBSET)
• IhsvLoadExtractOption.CurrentValue gt account
  list
• Data extraction
• HsvcDataLoad.Extract

25
Technical Outlines of Implementation

• Data Extraction (Essbase report script)
• ltSPARSE
• SUPCOLHEADING
• NOINDENTGEN
• SUPCOMMAS
• SUPBRACKETS
• SUPPAGEHEADING
• DECIMAL VARIABLE
• ltSUPSHARE
• ltPAGE (HSP_Rates,FixVar,Versions,Currencies)
• HSP_InputValue
• Results
• ltVERSION/gt
• Local
• ltRow (Years,Scenarios,Entities,
  DEPARTMENT,ACCOUNTS,"Time Periods")
• TABDELIMIT

26
Technical Outlines of Implementation

• Data Translation (Perl)
• For a simple data translation
• Data Translation (FDM)
• Data Mappings

27
Technical Outlines of Implementation

• Data Loading (Essbase load script)
• Call an Essbase load script from Perl script
• Data Loading (FDM)
• Export and Sort data file to optimize data
  load.
• Clear Data from Essbase
• Load data using Essbase Load Rule
• Consolidate Data in Essbase.

28
Questions Answers

• ?
