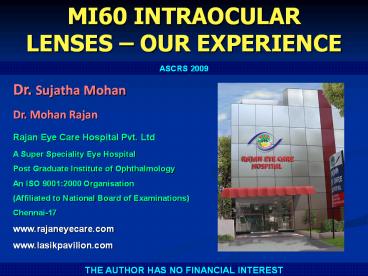

MI60 INTRAOCULAR LENSES OUR EXPERIENCE
ASCRS 2009
Dr. Sujatha Mohan Dr. Mohan Rajan Rajan Eye Care
Hospital Pvt. Ltd A Super Speciality Eye
Hospital Post Graduate Institute of
Ophthalmology An ISO 90012000 Organisation (Affil
iated to National Board of Examinations) Chennai-1
7 www.rajaneyecare.com www.lasikpavilion.com
THE AUTHOR HAS NO FINANCIAL INTEREST
2
MI60 - SALIENT FEATURES

• Material hydrophilic acrylic
• Inert
• Biocompatible
• Good centration
• Good in the bag stability

Foundation zone
IOL Design

• Formed by the optic and the haptic base
• Stable portion of the lens
• Bends under the contraction forces of the
  capsular bag

Foundation zone
Absorption zone
Absorption zone
3
MI60 - SALIENT FEATURES
Design optic
Design haptic

• Suitable for sub-2 mm injection without
  compromising quality of vision
• aspheric aberration-free optic
• 360 posterior barrier and square-edge design
• moderate refractive index
• 30 thinner than parent design
• 3D-deformable four-point haptics are the next
  generation haptic design seen in Akreos AO Micro
  Incision Lens only

• Provide consistent three-dimensional
  stability
• capitalizes on stability features of parent
  designs
• four-point capsular bag fixation with three
  overall diameters
• overall diameter varying with diopters
• average 10 angulation
• innovative haptic shape

4
STUDY DESIGN

• DEMOGRAPHICS
• 250 EYES OF 177 PATIENTS
• APR 2007 TO OCTOBER 2008

FOLLOWUP MAX 20 MONTHS MIN 3 MONTHS
MICS was performed by a single experienced
surgeon with NO SURGERY RELATED COMPLICATIONS
5
Preoperativeevaluation
PostoperativeAnalysis

• Visual acuity lt 6/12
• Keratometry lt 1 D of astigmatism
• IOL Master
• Complete ophthalmic evaluation

• Visual acuity
• Surgically induced astigmatism
• Contrast sensitivity
• Centration
• biocompatability

6
RESULTS

• BCVA 6/6, N6 IN 238
• EYES (956/9, N6 IN
• 18 EYES (7)

7
INDUCED ASTIGMATISM SMICS
0.00D TO 0.50D (Avg 0.30) INDUCED
ASTIGMATISM CONVENTIONAL PHACO 0.50D TO 1.50D
(Avg 1.00)
No. OF EYES 250
INDUCED ASTIGMATISM IN DIOPTERS
8
CONTRAST SENSITIVITY

• Tested using
• SLOAN letters of decreasing contrast
• Distance-1m
• In both PHOTOPIC and MESOPIC conditions

MI60 LENS
9
PHOTOPIC CONDITIONS

• Using 85-candles/ sq meter, the Akreos MI60
  lens showed marginal improvement of 28 in the
  contrast sensitivity over other IOLs

10
MESOPIC CONDITIONS

• Using 1 candle / sq meter, the Akreos MI 60
  lens had a contrast function of 34

11
AKREOS AO MI60 LENS
POST-OP 1 MONTH
Good centration and biocompatibility
12
Thank you
This is a Presentation from Rajan Eye Care
Hospital Pvt. Ltd
A Super Speciality Eye Hospital Post Graduate
Institute of Ophthalmology An ISO 90012000
Organisation (Affiliated to National Board of
Examinations, New Delhi) Chennai-17 www.rajaneye
care.com www.lasikpavilion.com
