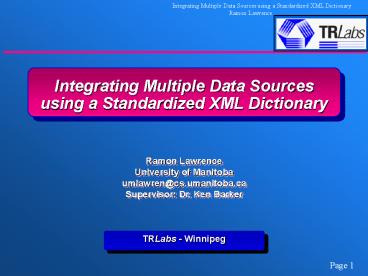

Integrating Multiple Data Sources using a Standardized XML Dictionary

1
Integrating Multiple Data Sources using a
Standardized XML Dictionary
Ramon Lawrence University of Manitoba umlawren_at_cs.
umanitoba.ca Supervisor Dr. Ken Barker
TRLabs - Winnipeg
2
Outline

• Introduction, Motivation, and Background
• Integration architecture components
• Integration architecture
• Example integration
• Applications to the WWW
• Future work and conclusions
• Demonstration of Unity

3
Introduction

• Integration of data is required when accessing
  multiple databases within an organization or on
  the WWW.
• Our focus is automatically combining database
  schema using schema integration.
• Schema integration requires knowledge of data
  semantics and use of metadata.

4
Motivation

• Organizations have several database systems which
  must interoperate.
• Users often access multiple Web databases whose
  knowledge must be integrated and presented in a
  useful form.
• Data warehouses and OLAP systems require data
  semantics to be understood and data to be
  cleansed and summarized.

5
Background

• Schema integration involves combining diverse
  database schema into an integrated view by
  resolving conflicts.
• Schema conflicts include naming, structural, and
  semantic conflicts.
• Schema integration is required for database
  interoperability, but it is currently a manual
  process.

6
MDBS Architecture
Global Transactions

• Global Transaction Manager (GTM)
• processes global transactions
• insures information in all LDBSs is consistent
• submits subtransactions to the GTSs for each LDBS

GTM
subtransactions

• Global Transaction Servers (GTSs)
• one for each LDBS
• converts subtransactions from the GTM into a form
  usable by the LDBS and vice versa

• Local Database Systems (LDBSs)
• databases combined into MDBS
• unchanged as still process local transactions

Local Transactions
7
Previous Work

• Research systems
• integrating systems by logical rules (Sheth)
• defining global dictionaries (Castano)
• Carnot Project using the Cyc knowledge base
• Industrial systems and standards
• Metadata Interchange Specification (MDIS)
• XML, BizTalk, E-commerce portals

8
Architecture Objective

• The objective of our architecture is to provide a
  system for automatically integrating diverse
  relational schemas into a multidatabase
• Desirable properties
• individual mappings - information sources
  integrated one-at-a-time and independently
• global view constructed for query transparency
• handles schema conflicts - including semantic,
  structural, and naming conflicts
• automated global integration - global view
  constructed efficiently and automatically

9
The Idea

• The major idea is that schema conflicts can be
  resolved if we
• eliminate all naming conflicts
• define a language capable of determining schema
  equivalence and performing transformations
• With these two properties, schema conflicts can
  be resolved automatically at the global level

10
Architecture Components The Global Dictionary

• A global dictionary (GD) provides standardized
  terms to capture data semantics.
• Hierarchy of terms related by IS-A or Has-A links
• Contains base set of common database concepts,
  but new concepts can be added
• A GD term is a single, unambiguous semantic
  definition.
• Several GD entries for a single English word are
  required if the word has multiple definitions.

11
Architecture ComponentsUsing the Global
Dictionary

• GD terms are used to build semantic names to
  describe the semantics of schema elements.
• Semantic names have the form
• semantic name CT CT ,CT CN
• CT context term, CN concept name
• each CT and CN is a single term from the GD
• Semantic names are included in specifications
  describing a data source.

12
Architecture ComponentsX-Specs

• Database metadata and semantic names are combined
  into specifications called X-Specs
• stored and transmitted using XML
• contains information on a relational schema
• organized into database, table, and field levels
• stores semantic names to describe and integrate
  schema elements

13
Architecture ComponentsIntegrating X-Specs

• Each database to be integrated is described using
  a X-Spec.
• Identical concepts in different databases are
  identified by similar semantic names.
• Concepts with identical (or hierarchially
  related) semantic names are combined regardless
  of their physical representation in the
  individual databases.

14
Integration Architecture

• Our integration architecture consists of two
  separate phases
• capture process X-Specs are constructed for each
  data source independently
• integration process X-Specs are combined using
  the integration algorithm which matches semantic
  names using the global dictionary

15
Integration ArchitectureThe Capture Process

• Capture process involves
• automatically extracting the schema information
  and metadata using a specification editor
• assigning semantic names to each schema element
  (tables and fields) to capture their semantics

16
Integration ArchitectureThe Capture Process
Relational Schema
Automatic Extraction
X-Spec
Specification Editor
DBA Lookup of terms
Global Dictionary
17
Integration ArchitectureThe Integration Process

• Integration process involves
• automatically identifying identical concepts by
  matching semantic names
• constructing a global view of database concepts
  consisting of a hierarchy of concept terms
• resolving structural differences during query
  generation and submission (e.g. a concept may be
  represented as a table in one database and a
  field (attribute) in another)

18
Integration ArchitectureThe Integration Process
.
Client
Client
Integration Site
Subtransactions
X-Spec
X-Spec
..
RDBMS
RDBMS
19
Integration Architecture Benefits

• The benefits of the two phase architecture are
• Dynamic integration schemas integrated as needed
• X-Specs are constructed only once and independent
  of each other
• Automatic conflict resolution by integrating
  based on semantic name rather than physical
  structure
• Users are isolated from system names and
  organization by querying through a global view
  using semantic names for concepts

20
Integration Example

• Two claims databases to be integrated
• ABC Company Claims_tb(claim_id, claimant,
  net_amount, paid_amount)
• XYZ Company T_claims(id, customer, claim_amt),
  T_payments(cid, pid, amount)
• First step is to construct X-Specs for each
  database.

21
Integration ExampleABC Database X-Spec
22
Integration ExampleXYZ Database X-Spec
23
Integration ExampleIntegrated View

• Global view after integration
• Claim
• Id
• Net amount
• Customer
• name
• Payment
• id
• amount

24
Integration ExampleDiscussion

• Important points
• system and field names are not presented to the
  user who queries based on semantic names
• database structure is not shown to the user
• different physical representations for the same
  concept are combined (e.g. payment (attribute) in
  ABC with payment table in XYZ database)
• hierarchially related concepts (customer vs.
  claimant) are combined based on their IS-A
  relationship in the global dictionary

25
Applications to the WWW

• Integrating diverse data sources is involved in
  constructing a data warehouse and other
  operational systems.
• The WWW is a diverse organizations of databases
  which users access.
• Automatically integrating web data sources by a
  browser or portal reduces query complexity and
  integration of results for the user.

26
Conclusions

• Automatic integration of database schema is
  possible by using a global dictionary of terms
  and constructing semantic names for schema
  elements.
• Integration of data sources has applications to
  the WWW and construction of data warehouses.

27
Future Work

• The integration architecture is evolving with
  standards on XML and captures metadata
  information in XML documents.
• The system is being tested on sample problems,
  and a query mechanism is work-in-progress.
• We are refining a prototype of the system called
  Unity.
